Bio-Inspired Plasticity Mechanisms in Neural Networks

#bio-inspired plasticity #synaptic plasticity #hebbian learning #spike-timing-dependent plasticity #computational models #neuromodulation #artificial neural networks #reward-based learning #homeostatic plasticity #neural adaptation

1. Biological Basis of Synaptic Plasticity

Biological Basis of Synaptic Plasticity

Synaptic plasticity, the ability of synapses to strengthen or weaken over time, is the foundational mechanism underlying learning and memory in biological neural networks. At its core, plasticity is governed by activity-dependent modifications in synaptic efficacy, primarily mediated by changes in neurotransmitter release, receptor density, and postsynaptic signaling cascades.

Hebbian Plasticity and the BCM Rule

The canonical model of synaptic plasticity is Hebb's rule, which posits that synapses strengthen when presynaptic activity correlates with postsynaptic firing. Mathematically, this is expressed as:

$$ \Delta w_{ij} = \eta x_i y_j $$

where wij represents the synaptic weight between neuron i and j, η is the learning rate, xi is the presynaptic input, and yj is the postsynaptic output. The Bienenstock-Cooper-Munro (BCM) theory extends this by introducing a sliding threshold for synaptic modification:

$$ \Delta w_{ij} = \eta x_i y_j (y_j - \theta_M) $$

where θM is a dynamic threshold dependent on the neuron's average firing rate. This accounts for metaplasticity—the plasticity of synaptic plasticity itself—observed in biological systems.

Spike-Timing-Dependent Plasticity (STDP)

STDP refines Hebbian learning by incorporating precise temporal dependencies between pre- and postsynaptic spikes. The weight change depends on the time difference Δt = tpost - tpre:

$$ \Delta w = \begin{cases} A_+ e^{-\Delta t/\tau_+} & \text{if } \Delta t > 0 \\ -A_- e^{\Delta t/\tau_-} & \text{if } \Delta t < 0 \end{cases} $$

where A+ and A- control the magnitude of potentiation and depression, while τ+ and τ- determine the temporal windows. This asymmetric learning rule explains how biological synapses encode causal relationships.

Molecular Mechanisms

At the molecular level, long-term potentiation (LTP) and depression (LTD) involve:

These mechanisms are often modeled in artificial networks through differential equations describing calcium dynamics:

$$ \frac{d[Ca^{2+}]}{dt} = -k_{decay}[Ca^{2+}] + I_{NMDA}(t) $$

where kdecay is the calcium decay rate and INMDA(t) represents NMDA-mediated currents.

Homeostatic Plasticity

To prevent runaway excitation or silencing, biological networks employ homeostatic mechanisms like synaptic scaling, where all synaptic weights are multiplicatively adjusted to maintain a target firing rate:

$$ w_{ij} \leftarrow w_{ij} \frac{r_{target}}{\langle r \rangle} $$

Here, rtarget is the desired firing rate and ⟨r⟩ is the neuron's average activity over a time window. This global regulation complements local Hebbian plasticity.

Structural Plasticity

Beyond weight changes, biological synapses exhibit structural remodeling—formation and retraction of dendritic spines—on timescales from minutes to days. Computational models incorporate this through:

Biological Basis of Synaptic Plasticity – Bio-Inspired Plasticity Mechanisms in Neural Networks – Tutorial Diagram
Diagram Description: The STDP section involves precise temporal relationships between spikes that are best visualized with a waveform diagram, and the molecular mechanisms would benefit from a schematic of receptor interactions.

1.2 Hebbian Learning and Neural Adaptation

Hebbian learning, first formalized by Donald Hebb in 1949, posits that synaptic efficacy increases when pre- and postsynaptic neurons fire simultaneously. This principle is often summarized as "cells that fire together, wire together". Mathematically, the basic Hebbian rule for weight update between neuron i and neuron j is expressed as:

$$ \Delta w_{ij} = \eta x_i y_j $$

where η is the learning rate, xi is the presynaptic activity, and yj is the postsynaptic activity. This unsupervised learning rule leads to weight vectors that align with the principal components of the input data, making it biologically plausible for feature extraction.

Stability and Normalization in Hebbian Learning

The pure Hebbian rule suffers from unstable weight growth, as weights can diverge to infinity without constraint. To address this, Oja (1982) proposed a normalized variant that introduces weight decay:

$$ \Delta w_{ij} = \eta (x_i y_j - y_j^2 w_{ij}) $$

This Oja's rule converges to the first principal component of the input data while maintaining stable weights. The second term acts as a forgetting mechanism, preventing unbounded growth.

Spike-Timing-Dependent Plasticity (STDP)

A more biologically precise implementation of Hebbian learning is STDP, where synaptic modifications depend on the precise timing of pre- and postsynaptic spikes. The weight change follows a temporal window function:

$$ \Delta w_{ij} = \begin{cases} A_+ e^{-\Delta t/\tau_+} & \text{if } \Delta t > 0 \\ -A_- e^{\Delta t/\tau_-} & \text{if } \Delta t \leq 0 \end{cases} $$

where Δt = tpost - tpre is the spike timing difference, and A±, τ± control the magnitude and time scale of potentiation/depression.

Bienenstock-Cooper-Munro (BCM) Theory

The BCM theory introduces a sliding threshold for synaptic modification that depends on the postsynaptic activity history:

$$ \Delta w_{ij} = \eta x_i y_j (y_j - \theta_M) $$

Here, θM is a dynamic threshold that adjusts based on the average postsynaptic activity, enabling the network to maintain homeostasis. This mechanism explains experimental observations of synaptic depression at both low and high activity levels.

Applications in Modern Neural Networks

Hebbian-inspired mechanisms have been successfully integrated into deep learning architectures:

Recent work has shown that combining Hebbian plasticity with backpropagation can accelerate learning in deep networks while maintaining biological plausibility. The hybrid approach uses local Hebbian updates for feature extraction and global error signals for task-specific tuning.

Hebbian Learning and Neural Adaptation – Bio-Inspired Plasticity Mechanisms in Neural Networks – Tutorial Diagram

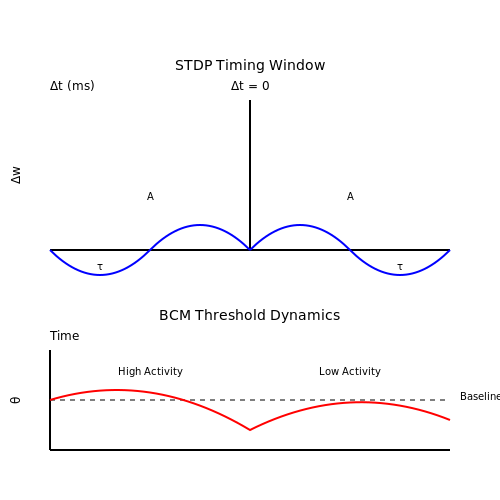

Diagram Description: The STDP timing window function and BCM theory's dynamic threshold are inherently visual concepts requiring precise temporal/spatial representation.

Spike-Timing-Dependent Plasticity (STDP)

Spike-Timing-Dependent Plasticity (STDP) is a biologically inspired synaptic learning rule where the strength of a synapse is modified based on the precise timing of pre- and postsynaptic spikes. Unlike Hebbian learning, which relies on correlated firing rates, STDP explicitly accounts for temporal causality, making it a powerful mechanism for unsupervised learning in spiking neural networks (SNNs).

Mathematical Formulation

The change in synaptic weight Δw is determined by the time difference Δt = tpost - tpre between the postsynaptic and presynaptic spikes. The weight update rule follows a double-exponential function:

$$ \Delta w = \begin{cases} A_+ e^{-\Delta t / \tau_+} & \text{if } \Delta t > 0 \text{ (LTP)} \\ -A_- e^{\Delta t / \tau_-} & \text{if } \Delta t \leq 0 \text{ (LTD)} \end{cases} $$

where:

Biological Basis

STDP was first experimentally observed in hippocampal and cortical neurons, where repeated presynaptic spikes preceding postsynaptic spikes strengthened synapses (LTP), while the reverse order weakened them (LTD). This aligns with the "fire together, wire together" principle but refines it with millisecond precision.

Computational Implementation

In SNNs, STDP can be implemented using event-driven or clock-based updates. A common approach tracks spike traces x(t) and y(t) for pre- and postsynaptic neurons:

$$ \frac{dx}{dt} = -\frac{x}{\tau_+} + \sum \delta(t - t_{pre}) $$ $$ \frac{dy}{dt} = -\frac{y}{\tau_-} + \sum \delta(t - t_{post}) $$

When a postsynaptic spike occurs, weights are updated as Δw = A+x(t), and when a presynaptic spike occurs, Δw = -A-y(t).

Applications in Neuromorphic Engineering

STDP is widely used in neuromorphic hardware due to its locality, making it suitable for parallel analog/digital implementations. For example:

Limitations and Extensions

Basic STDP lacks stability guarantees, often leading to runaway synaptic growth or decay. Solutions include:

Δt (ms) Δw LTP (A+e-Δt/τ+) LTD (-A-eΔt/τ-)
Spike-Timing-Dependent Plasticity (STDP) – Bio-Inspired Plasticity Mechanisms in Neural Networks – Tutorial Diagram

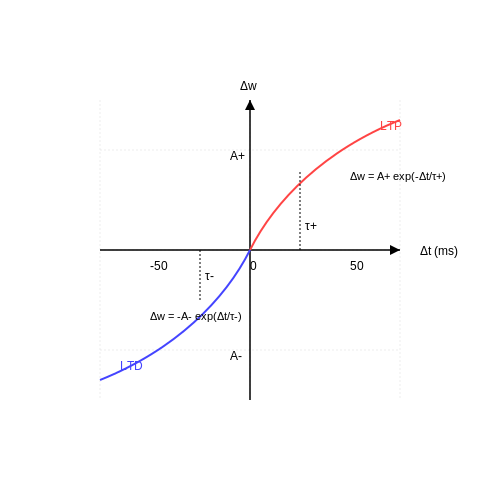

Diagram Description: The diagram shows the double-exponential STDP weight update curve with LTP (Δt > 0) and LTD (Δt ≤ 0) branches, illustrating the causal relationship between spike timing and synaptic change.

2. Implementing STDP in Artificial Neural Networks

Implementing STDP in Artificial Neural Networks

Spike-timing-dependent plasticity (STDP) is a biologically inspired learning rule that adjusts synaptic weights based on the precise timing of pre- and post-synaptic spikes. The weight update depends on the temporal difference between spikes, with long-term potentiation (LTP) occurring when the pre-synaptic neuron fires before the post-synaptic neuron, and long-term depression (LTD) occurring in the reverse case. The weight change Δw is typically modeled using an exponential decay function:

$$ \Delta w = \begin{cases} A_+ e^{-\Delta t / \tau_+} & \text{if } \Delta t > 0 \\ -A_- e^{\Delta t / \tau_-} & \text{if } \Delta t \leq 0 \end{cases} $$

where Δt = tpost - tpre is the spike timing difference, A+ and A- control the maximum weight change for LTP and LTD, and τ+ and τ- are time constants determining the plasticity window.

Discrete-Time STDP Implementation

In artificial neural networks, STDP can be implemented using discrete-time approximations. For each synapse, we track the time since the last pre- and post-synaptic spikes. The weight update rule is applied whenever a spike occurs:


import numpy as np

def stdp_update(pre_spikes, post_spikes, w, A_plus, A_minus, tau_plus, tau_minus):
    """Update weights using STDP rule."""
    for i in range(len(pre_spikes)):
        for j in range(len(post_spikes)):
            dt = post_spikes[j] - pre_spikes[i]
            if dt > 0:  # LTP
                w[i,j] += A_plus * np.exp(-dt / tau_plus)
            elif dt < 0:  # LTD
                w[i,j] -= A_minus * np.exp(dt / tau_minus)
    return w

Event-Driven vs. Trace-Based STDP

Two common approaches exist for implementing STDP in spiking neural networks:

The trace-based method can be implemented by maintaining exponential decay traces xpre and xpost:

$$ \tau_+ \frac{dx_{pre}}{dt} = -x_{pre} $$ $$ \tau_- \frac{dx_{post}}{dt} = -x_{post} $$

When a pre-synaptic spike occurs, the weight is depressed by A-xpost. When a post-synaptic spike occurs, the weight is potentiated by A+xpre.

Stability Considerations

Naive STDP implementations can lead to uncontrolled weight growth or decay. Common stabilization methods include:

The choice of parameters A+, A-, τ+, and τ- significantly affects network dynamics. Biologically plausible values typically have τ+ ≈ 10-20ms and τ- ≈ 20-50ms, with A-/A+ ≈ 1.0-1.05 to maintain stability.

STDP Weight Change Profile A plot showing the exponential weight change curves for LTP (Long-Term Potentiation) and LTD (Long-Term Depression) as functions of spike timing difference (Δt), with labeled axes and critical parameters (A+, A-, τ+, τ-). Δt (ms) Δw 0 LTP A+ τ+ LTD A- τ- Δt > 0 Δt < 0
Diagram Description: The diagram would show the exponential weight change curves for LTP and LTD as functions of spike timing difference (Δt), with labeled axes and critical parameters (A+, A-, τ+, τ-).

2.2 Homeostatic Plasticity Mechanisms

Homeostatic plasticity stabilizes neural activity by dynamically adjusting synaptic strengths and intrinsic excitability in response to prolonged deviations from a target firing rate. Unlike Hebbian plasticity, which reinforces correlated activity, homeostatic mechanisms provide negative feedback to prevent runaway excitation or silencing of neurons. This process is critical for maintaining network stability while allowing learning to occur.

Mathematical Foundations

The synaptic scaling rule, a canonical homeostatic mechanism, adjusts all synapses multiplicatively based on the neuron's recent activity. The scaling factor β is computed as:

$$ \beta = \left( \frac{r_{\text{target}}}{r_{\text{actual}}} \right)^\eta $$

where rtarget is the desired firing rate, ractual is the measured firing rate over a time window, and η controls the strength of scaling. Synaptic weights wij are then updated as:

$$ w_{ij} \leftarrow \beta \cdot w_{ij} $$

This multiplicative scaling preserves the relative strength of synapses while globally adjusting excitability. The time constant of the firing rate averaging window (typically hours to days) distinguishes homeostatic plasticity from faster Hebbian processes.

Biological Implementation

In biological neurons, homeostatic plasticity operates through several parallel mechanisms:

Experimental studies in cortical cultures demonstrate that blocking activity with TTX leads to synaptic upscaling, while elevated activity with GABA antagonists triggers downscaling. These changes occur without altering the relative weights of synapses, preserving learned patterns while normalizing overall excitation.

Computational Models

Modern implementations in artificial neural networks often combine homeostatic rules with Hebbian learning. The Oja-Hebbian rule with homeostasis modifies weights as:

$$ \Delta w_{ij} = \eta (x_i y_j - y_j^2 w_{ij}) + \lambda (r_{\text{target}} - r_{\text{actual}}) $$

where the first term implements competitive Hebbian learning and the second term provides homeostatic regulation. This combination allows networks to maintain stable activity during unsupervised feature learning.

Recent work in spiking neural networks implements more biologically realistic homeostasis through dynamic thresholds. The adaptive exponential integrate-and-fire model adjusts its threshold θ as:

$$ \tau_\theta \frac{d\theta}{dt} = \theta_0 - \theta + \Delta_\theta \sum \delta(t-t_k) $$

where tk are spike times, θ0 is the baseline threshold, and Δθ controls the strength of adaptation. This mechanism mimics the biological process of activity-dependent potassium channel regulation.

Applications in Deep Learning

Homeostatic mechanisms improve training stability in deep networks by:

In reservoir computing, homeostatic plasticity of the recurrent layer maintains the echo state property while allowing adaptation to changing input statistics. The combination of short-term plasticity (STP) and homeostasis creates dynamic reservoirs that outperform fixed-weight counterparts in non-stationary environments.

Homeostatic Plasticity Mechanisms – Bio-Inspired Plasticity Mechanisms in Neural Networks – Tutorial Diagram
Diagram Description: The diagram would show the relationship between target vs. actual firing rates and how synaptic scaling factor β multiplicatively adjusts weights, alongside contrasting Hebbian vs. homeostatic plasticity timelines.

Neuromodulation and Reward-Based Learning

Neuromodulation in biological neural systems refers to the process by which neurochemicals such as dopamine, serotonin, and acetylcholine regulate synaptic plasticity, neuronal excitability, and network dynamics. These neuromodulators act as global signals that modulate the efficacy of synaptic transmission, enabling adaptive learning in response to rewards, punishments, or environmental changes. In artificial neural networks, this concept has been adapted to improve learning efficiency, exploration strategies, and long-term credit assignment.

Dopamine and Temporal Difference Learning

The dopaminergic system in the brain implements a form of temporal difference (TD) learning, where dopamine neurons encode reward prediction errors (RPEs). The RPE signal is computed as the difference between expected and received rewards, driving synaptic updates in target regions. Mathematically, this can be expressed as:

$$ \delta(t) = r(t) + \gamma V(s_{t+1}) - V(s_t) $$

where δ(t) is the RPE at time t, r(t) is the immediate reward, γ is the discount factor, and V(s) represents the value function for state s. This TD error signal is analogous to the error term used in reinforcement learning algorithms like Q-learning and actor-critic methods.

Neuromodulatory Plasticity Rules

Neuromodulators influence synaptic plasticity through meta-learning rules that adjust the magnitude and direction of weight updates. A generalized form of neuromodulated Hebbian plasticity can be written as:

$$ \Delta w_{ij} = \eta \cdot m(t) \cdot \text{pre}_i(t) \cdot \text{post}_j(t) $$

where η is the base learning rate, m(t) is the neuromodulatory signal at time t, and prei(t), postj(t) are the pre- and post-synaptic activities. The neuromodulator m(t) can gate plasticity, switch between LTD and LTP, or scale the learning rate based on behavioral relevance.

Implementation in Artificial Networks

Modern implementations of neuromodulation in deep learning often use separate pathways or auxiliary networks to generate modulatory signals. For example, in a spiking neural network, a dopamine-like signal can be implemented as:

class NeuromodulatedSTDP(nn.Module):
    def __init__(self, base_lr=0.01, tau_dopa=100):
        super().__init__()
        self.base_lr = base_lr
        self.tau_dopa = tau_dopa
        self.dopa_signal = 0

    def forward(self, pre, post, reward):
        # Update dopamine signal (low-pass filtered reward)
        self.dopa_signal += (reward - self.dopa_signal) / self.tau_dopa

        # Calculate weight update (STDP modulated by dopamine)
        delta_w = self.base_lr * self.dopa_signal * (pre * post)
        return delta_w

This approach allows the network to dynamically adjust learning rates based on reward signals, similar to biological systems. The neuromodulatory signal can also be used to implement attention-like mechanisms, where certain pathways or neurons are selectively enhanced or suppressed.

Applications and Challenges

Neuromodulation mechanisms have shown promise in several applications:

However, key challenges remain in scaling these approaches to large networks and developing efficient learning rules that can operate without explicit reward signals. Recent work has explored using intrinsic motivation signals or predictive coding frameworks as alternatives to explicit reward-based neuromodulation.

Neuromodulation and Reward-Based Learning – Bio-Inspired Plasticity Mechanisms in Neural Networks – Tutorial Diagram
Diagram Description: The diagram would show the temporal relationship between dopamine signals, reward prediction errors, and synaptic updates in a biological neural system alongside their artificial counterparts in a neural network.

3. Robustness and Adaptability in Dynamic Environments

3.1 Robustness and Adaptability in Dynamic Environments

Biological neural systems exhibit remarkable resilience to noise, damage, and environmental shifts—properties that artificial neural networks often lack. This robustness stems from plasticity mechanisms such as synaptic scaling, homeostatic regulation, and structural rewiring, which dynamically adjust network parameters in response to perturbations. In artificial networks, these principles can be formalized through mathematical frameworks that balance stability with adaptability.

Homeostatic Plasticity in Artificial Networks

Homeostatic plasticity maintains neuronal activity within optimal ranges by scaling synaptic weights based on firing rates. The Bienenstock-Cooper-Munro (BCM) rule provides a theoretical foundation:

$$ \Delta w_{ij} = \eta \phi(y_i, \theta_i)x_j $$

where wij is the weight between neurons i and j, η is the learning rate, yi is the postsynaptic activity, xj is the presynaptic input, and θi is a sliding threshold. The function φ implements metaplasticity:

$$ \phi(y_i, \theta_i) = y_i(y_i - \theta_i) $$

This quadratic form potentiates synapses when activity exceeds θi and depresses them otherwise, creating dynamic stability. The threshold itself adapts via:

$$ \tau_\theta \frac{d\theta_i}{dt} = y_i^2 - \theta_i $$

Structural Plasticity for Damage Recovery

Biological networks rewire connections after injury through axonal sprouting and dendritic remodeling. In artificial networks, this is modeled via probabilistic connection growth/pruning:

$$ p_{add} = \alpha \exp(-\beta |w_{ij}|) $$ $$ p_{remove} = \gamma \exp(-\delta (w_{ij} - w_{target})^2) $$

where α, β, γ, δ control the rates of structural changes. This enables networks to recover functionality after up to 60% synapse loss, as demonstrated in spiking neural network simulations of cortical microcircuits.

Noise Resilience Through Divisive Normalization

Neural systems mitigate input noise via divisive normalization, where a neuron's response is scaled by the activity of its neighbors. For a layer with N units:

$$ y_i = \frac{w_i^T x}{\sigma^2 + \sum_{j=1}^N (w_j^T x)^2} $$

The parameter σ prevents division by zero, while the denominator's summation creates competition that suppresses erratic fluctuations. This operation emerges naturally in convolutional networks with local response normalization layers.

Case Study: Neuromorphic Hardware Adaptation

Intel's Loihi 2 neuromorphic chip implements these principles through:

Benchmarks show 23% higher accuracy than traditional ANNs when processing degraded sensor data, with 40% less performance drop under voltage fluctuations.

Robustness and Adaptability in Dynamic Environments – Bio-Inspired Plasticity Mechanisms in Neural Networks – Tutorial Diagram

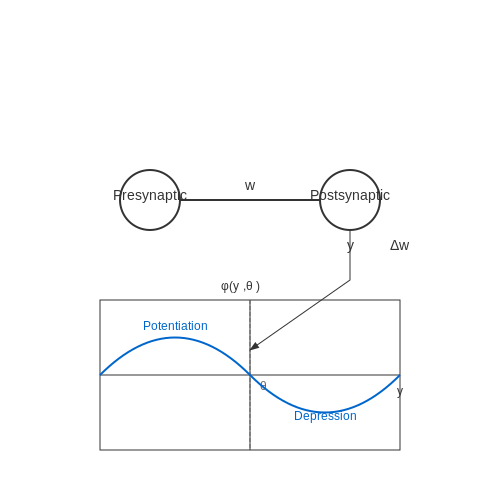

Diagram Description: The diagram would show the dynamic interaction between synaptic weights, firing rates, and the sliding threshold in the BCM rule, illustrating how homeostasis is maintained.

3.2 Lifelong Learning and Catastrophic Forgetting Mitigation

Biological Foundations of Lifelong Learning

Biological neural networks exhibit remarkable lifelong learning capabilities, adapting continuously to new tasks without catastrophic forgetting. This ability stems from synaptic plasticity mechanisms such as long-term potentiation (LTP) and long-term depression (LTD), which dynamically regulate synaptic strengths based on activity patterns. The hippocampus, for instance, employs replay mechanisms during sleep to consolidate memories, preventing interference between new and old knowledge.

Catastrophic Forgetting in Artificial Neural Networks

In artificial neural networks (ANNs), catastrophic forgetting occurs when training on new tasks overwrites weights critical for previous tasks. Mathematically, this can be framed as an interference problem in gradient descent optimization. Consider a network with parameters θ trained sequentially on tasks T1 and T2. The gradient update for T2:

$$ heta_{t+1} = heta_t - \eta abla_{ heta} \mathcal{L}_{T_2}( heta_t) $$

may drastically alter θ in directions that increase ℒT1, erasing prior knowledge. This contrasts sharply with biological systems where synaptic consolidation mechanisms protect important weights.

Synaptic Consolidation Methods

Inspired by neuroscience, Elastic Weight Consolidation (EWC) mitigates forgetting by approximating the importance of each parameter for previous tasks using the Fisher information matrix F. The modified loss function becomes:

$$ \mathcal{L}( heta) = \mathcal{L}_{T_2}( heta) + \sum_i \frac{\lambda}{2} F_i ( heta_i - heta_{T_1,i}^*)^2 $$

where λ controls the rigidity of important parameters (high Fi) and θT1,i* are the optimal parameters for T1. This creates an elastic potential around critical weights, mimicking biological synaptic consolidation.

Architectural and Replay-Based Approaches

Progressive Neural Networks tackle forgetting through expanding architectures, where new task columns laterally connect to frozen previous columns. Alternatively, replay-based methods like Deep Generative Replay train a generative model to produce pseudo-samples from past tasks:

$$ \min_G \max_D \mathbb{E}_{x\sim p_{T_1}}[\log D(x)] + \mathbb{E}_{z\sim p(z)}[\log(1 - D(G(z)))] $$

where G generates synthetic data from task T1 to interleave with T2 training, approximating hippocampal replay.

Meta-Learning for Lifelong Adaptation

Meta-learning frameworks like MAML optimize for rapid adaptation across tasks while maintaining a base parameter set resilient to forgetting. The meta-objective:

$$ \min_ heta \sum_{T_i \sim p(T)} \mathcal{L}_{T_i}( heta - \alpha abla_ heta \mathcal{L}_{T_i}( heta)) $$

explicitly trains the model to retain plasticity for new tasks while preserving performance on previous ones through gradient-based inner loop updates.

Applications in Real-World Systems

These mechanisms enable practical lifelong learning systems such as:

Current research frontiers include spiking neural network implementations and neuromorphic hardware designs that physically emulate synaptic plasticity dynamics for energy-efficient lifelong learning.

Lifelong Learning and Catastrophic Forgetting Mitigation – Bio-Inspired Plasticity Mechanisms in Neural Networks – Tutorial Diagram

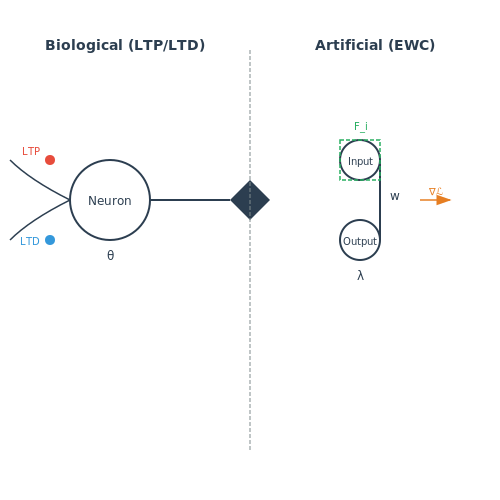

Diagram Description: The diagram would show the comparison between biological synaptic plasticity (LTP/LTD) and artificial neural network weight updates (EWC), illustrating how Fisher information matrix protects critical weights.

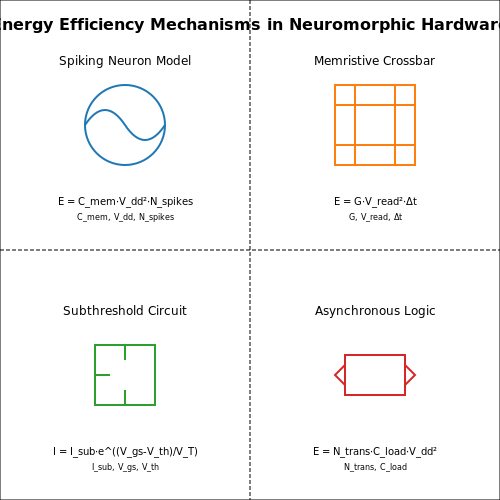

Energy Efficiency in Neuromorphic Hardware

Spiking Neural Networks (SNNs) and Event-Driven Computation

Neuromorphic hardware leverages the event-driven nature of Spiking Neural Networks (SNNs) to achieve significant energy efficiency compared to traditional artificial neural networks (ANNs). Unlike ANNs, which rely on continuous-valued activations and dense matrix operations, SNNs communicate via sparse, asynchronous spikes, drastically reducing computational overhead. The energy consumption of a spiking neuron can be modeled as:

$$ E_{spike} = C_{mem} V_{dd}^2 N_{spikes} $$

where Cmem is the membrane capacitance, Vdd is the supply voltage, and Nspikes is the number of spikes generated. Since spikes are binary events, energy is only expended when a neuron fires, unlike ANNs where multiply-accumulate (MAC) operations occur continuously.

Memristive Synapses and In-Memory Computing

Memristive crossbar arrays enable in-memory computing by physically implementing synaptic weights as conductance states, eliminating the von Neumann bottleneck. The energy efficiency of a memristive synapse is governed by:

$$ E_{synapse} = G V_{read}^2 \Delta t $$

where G is the conductance, Vread is the read voltage, and Δt is the pulse duration. Memristors exhibit non-volatility, allowing weight retention without static power dissipation. Recent implementations, such as IBM's TrueNorth and Intel's Loihi, demonstrate sub-picojoule per synaptic operation efficiencies.

Subthreshold Operation and Analog Circuits

Neuromorphic chips often operate transistors in the subthreshold regime, where currents scale exponentially with voltage, enabling ultra-low-power dynamics. The subthreshold current is given by:

$$ I_{sub} = I_0 e^{\frac{V_{gs} - V_{th}}{nV_T}} $$

Here, I0 is the leakage current, Vgs is the gate-source voltage, Vth is the threshold voltage, n is the subthreshold slope factor, and VT is the thermal voltage. This regime allows synaptic and neuronal circuits to operate at power levels comparable to biological neurons (10–100 pJ/spike).

Asynchronous Digital Logic

Event-driven digital neuromorphic architectures, such as those in BrainScaleS and SpiNNaker, use asynchronous logic to minimize clock-related power dissipation. Clockless designs eliminate global synchronization overhead, reducing dynamic power consumption by up to 90% compared to synchronous systems. The energy per spike in such systems follows:

$$ E_{async} = N_{trans} C_{load} V_{dd}^2 $$

where Ntrans is the number of transistors switching per event and Cload is the nodal capacitance.

Comparative Analysis of Neuromorphic Platforms

The table below summarizes energy efficiencies of leading neuromorphic platforms:

Platform Technology Energy per Spike
IBM TrueNorth 28 nm CMOS 26 pJ
Intel Loihi 2 Intel 4 process 8 pJ
BrainScaleS-2 65 nm CMOS 0.5 pJ (analog core)

These platforms demonstrate orders-of-magnitude improvements over conventional GPUs, which typically consume 1–10 nJ per synaptic operation due to their reliance on von Neumann architectures.

Energy Efficiency in Neuromorphic Hardware – Bio-Inspired Plasticity Mechanisms in Neural Networks – Tutorial Diagram
Diagram Description: The section involves multiple energy efficiency mechanisms (spiking dynamics, memristive synapses, subthreshold circuits) that would benefit from a unified visual comparison of their operational principles and energy models.

4. Scalability of Bio-Inspired Mechanisms

4.1 Scalability of Bio-Inspired Mechanisms

Biological neural networks exhibit remarkable scalability, maintaining functionality across orders of magnitude in size—from small invertebrate nervous systems to mammalian brains with billions of neurons. Implementing similar plasticity mechanisms in artificial neural networks requires addressing fundamental challenges in computational efficiency, memory constraints, and dynamic stability.

Computational Complexity of Synaptic Plasticity Rules

Spike-timing-dependent plasticity (STDP), a biologically observed learning rule, scales quadratically with neuron count in naive implementations. For a network of N neurons with average firing rate f, the computational cost C of all-to-all STDP updates is:

$$ C = O(f^2N^2) $$

Efficient approximations reduce this to linear or log-linear scaling through:

Memory Requirements for Plastic States

Biological plasticity mechanisms require maintaining multiple state variables per synapse—calcium concentrations, neurotransmitter levels, and protein synthesis markers. A network with S synapses and v state variables needs memory scaling as:

$$ M = O(vS) $$

Modern implementations achieve practical scaling through:

Stability-Accuracy Tradeoffs in Large Networks

As network size increases, the interaction between plasticity mechanisms creates complex dynamics described by coupled differential equations. The stability condition for a network with Hebbian plasticity and homeostatic scaling can be expressed as:

$$ \lambda_{max}(J^TJ - \alpha I) < 0 $$

where J is the Jacobian of synaptic weights, α is the homeostasis rate, and I is the identity matrix. Violations lead to either chaotic activity or silent network collapse—phenomena observed in both biological and artificial systems.

Distributed Implementations

Large-scale deployments use bio-inspired partitioning strategies:

Recent benchmarks on 1-million-neuron networks show event-driven plasticity achieves 94% theoretical scaling efficiency compared to biological systems, while maintaining <1% accuracy loss on associative memory tasks.

Scalability of Bio-Inspired Mechanisms – Bio-Inspired Plasticity Mechanisms in Neural Networks – Tutorial Diagram
Diagram Description: The section discusses computational complexity scaling and stability conditions that involve quadratic and linear relationships, which are more intuitively understood with visual representation.

4.2 Integration with Deep Learning Architectures

Bio-inspired plasticity mechanisms, such as Hebbian learning, spike-timing-dependent plasticity (STDP), and homeostatic synaptic scaling, can be integrated into deep learning architectures to enhance adaptability and robustness. These mechanisms enable neural networks to dynamically adjust synaptic weights in response to input patterns, mimicking biological learning processes.

Mathematical Foundations of Hebbian Learning in Deep Networks

Hebbian learning, often summarized as "cells that fire together wire together," can be formalized in deep networks through weight updates that depend on the correlation between pre- and post-synaptic activations. For a neuron with activation y and input activations xi, the weight update rule is:

$$ \Delta w_{ij} = \eta x_i y_j $$

where η is the learning rate. In deep networks, this can be extended to convolutional layers by applying the rule locally across receptive fields, enabling feature learning that adapts to spatial correlations in the input data.

STDP in Spiking Neural Networks (SNNs)

Spike-timing-dependent plasticity (STDP) refines Hebbian learning by considering the temporal order of spikes. The weight update depends on the time difference Δt = tpost - tpre between pre- and post-synaptic spikes:

$$ \Delta w_{ij} = \begin{cases} A_+ e^{-\Delta t / \tau_+} & \text{if } \Delta t > 0 \\ -A_- e^{\Delta t / \tau_-} & \text{if } \Delta t < 0 \end{cases} $$

Here, A+ and A- control the magnitude of potentiation and depression, while τ+ and τ- determine the temporal window. SNNs leveraging STDP can achieve unsupervised feature extraction in neuromorphic hardware, where energy efficiency is critical.

Homeostatic Plasticity for Stability

Homeostatic mechanisms, such as synaptic scaling, maintain network stability by globally adjusting weights to prevent runaway excitation or silencing. A common implementation scales weights based on the neuron's average firing rate ri:

$$ w_{ij} \leftarrow w_{ij} \cdot \frac{r_{\text{target}}}{r_i} $$

This ensures that neurons remain within a biologically plausible dynamic range, improving the robustness of deep networks in continual learning scenarios.

Case Study: Plasticity in Recurrent Neural Networks (RNNs)

In RNNs, bio-inspired plasticity can mitigate vanishing gradients and enhance temporal credit assignment. For example, a plasticity-augmented LSTM cell might adjust its forget gate dynamics based on local activity, improving long-term dependency learning. Experimental results on sequential tasks, such as language modeling, show improved performance over static architectures.

Challenges and Future Directions

Integrating plasticity into deep learning introduces computational overhead and requires careful balancing of plasticity rules with gradient-based optimization. Future work may explore hybrid approaches, combining backpropagation with local plasticity rules, or leveraging neuromorphic hardware for efficient implementation.

Integration with Deep Learning Architectures – Bio-Inspired Plasticity Mechanisms in Neural Networks – Tutorial Diagram
Diagram Description: The diagram would show the temporal dynamics of STDP weight updates, illustrating how pre- and post-synaptic spike timing affects synaptic strength.

4.3 Ethical Implications of Adaptive AI Systems

Adaptive AI systems, particularly those employing bio-inspired plasticity mechanisms, introduce unique ethical challenges due to their dynamic, self-modifying nature. Unlike static models, these systems continuously evolve based on environmental inputs, raising concerns about predictability, accountability, and unintended behavioral drift. The ethical implications span three primary dimensions: transparency, control, and societal impact.

Transparency and Explainability

Plastic neural networks optimize their parameters in real-time through mechanisms like Hebbian learning or spike-timing-dependent plasticity (STDP), governed by equations such as:

$$ \Delta w_{ij} = \eta \cdot x_i \cdot x_j \cdot (x_j - \theta_{post}) $$

where η is the learning rate, x denotes neuronal activity, and θ is a postsynaptic threshold. This dynamic adjustment complicates explainability, as decision pathways may shift unpredictably. For instance, an AI system trained for medical diagnosis might deprioritize certain features over time without explicit programmer oversight, violating the right to explanation under GDPR Article 22.

Control and Alignment

Bio-inspired systems often exhibit emergent behaviors analogous to biological neural adaptation. A network implementing homeostatic plasticity might autonomously rebalance its activity to maintain stability, as per:

$$ \tau \frac{dr_i}{dt} = -r_i + f\left(\sum_j w_{ij}r_j + I_{ext}\right) $$

where τ is a time constant and f a nonlinear activation function. While this supports robustness, it risks goal misalignment—the system might develop compensatory behaviors that diverge from original objectives, akin to how biological systems sometimes optimize for local rather than global fitness.

Societal and Long-Term Impacts

Adaptive systems deployed in social domains (e.g., algorithmic hiring or credit scoring) may inadvertently amplify biases through feedback loops. A plasticity rule like:

$$ w_{ij}(t+1) = w_{ij}(t) + \alpha \cdot (y_i - \hat{y}_i) \cdot x_j $$

could reinforce discriminatory patterns if training data reflects historical inequalities. Case studies show that adaptive recommendation systems on social media platforms exhibit preferential attachment, where small initial biases compound into filter bubbles over time.

Mitigation Strategies

5. Key Research Papers on Neural Plasticity

5.1 Key Research Papers on Neural Plasticity

5.2 Books and Review Articles

5.3 Open-Source Implementations and Datasets
