Audio mixer

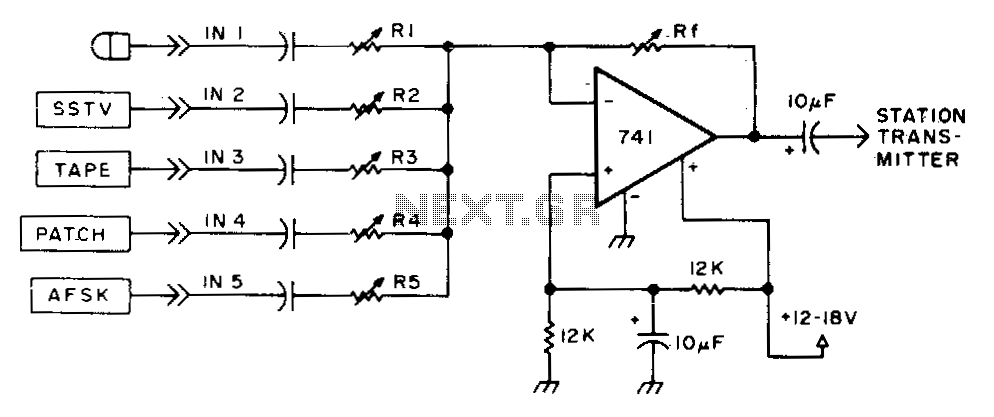

The 741 operational amplifier (op amp) is utilized as a summing amplifier to merge multiple audio inputs. The overall gain is determined by the feedback resistor (Rf).

The 741 operational amplifier is a versatile component commonly used in various analog applications, including audio processing. When configured as a summing amplifier, it allows for the combination of several audio signals into a single output. This is particularly useful in audio mixing situations where multiple sources need to be integrated into one output channel.

In the summing amplifier configuration, the input audio signals are fed into the inverting terminal of the op amp through individual resistors. These resistors not only serve to limit the current but also play a crucial role in determining the weight of each input signal in the final output. The feedback resistor (Rf) connected from the output to the inverting input sets the overall gain of the amplifier according to the formula:

\[ V_{out} = -\left( \frac{Rf}{R_{in}} \right) (V_1 + V_2 + V_3 + ... + V_n) \]

where \( V_{out} \) is the output voltage, \( R_{in} \) is the equivalent resistance of the input resistors, and \( V_1, V_2, V_3, ..., V_n \) are the input voltages. The negative sign indicates that the output is inverted relative to the input signals.

The non-inverting terminal of the op amp is typically grounded in this configuration, ensuring that the summation occurs around a stable reference point. The design can be adjusted by selecting appropriate values for Rf and the input resistors to achieve the desired gain and input impedance characteristics.

In summary, the 741 op amp configured as a summing amplifier provides a robust solution for combining multiple audio signals, with the overall gain finely tunable through the feedback resistor, making it a valuable tool in audio engineering applications.The 741 op amp is used as a summing amplifier to combine several audio inputs Overall gain is set by Rf.
