AI for Smart City Applications

#smart cities #urban mobility #reinforcement learning #autonomous vehicles #energy management #sustainability #public safety #anomaly detection #predictive maintenance #traffic optimization

1. Predictive Maintenance for Public Transport

Predictive Maintenance for Public Transport

Predictive maintenance in public transport leverages AI-driven condition monitoring to anticipate mechanical failures before they occur, minimizing downtime and operational costs. By integrating sensor data from vehicles with machine learning models, transit agencies can shift from reactive to proactive maintenance strategies.

Sensor Data Acquisition and Feature Engineering

Modern buses and trains are equipped with IoT sensors capturing variables such as vibration, temperature, oil pressure, and engine load. Raw time-series data is preprocessed using techniques like:

$$ X(k) = \sum_{n=0}^{N-1} x(n) e^{-i 2\pi kn/N} $$

where x(n) represents the discrete-time signal and X(k) its frequency-domain representation. Anomalies in spectral peaks often indicate bearing wear or imbalance.

$$ (1 - \sum_{i=1}^p \phi_i L^i)(1 - L)^d X_t = (1 + \sum_{j=1}^q \theta_j L^j) \epsilon_t $$

where L is the lag operator and εt represents white noise.

Machine Learning Architectures

Three principal architectures dominate predictive maintenance applications:

1. Survival Analysis Models

Cox Proportional Hazards models estimate the probability of failure within a time interval, given covariates:

$$ h(t|X) = h_0(t) \exp(\beta_1 X_1 + \cdots + \beta_p X_p) $$

where h0(t) is the baseline hazard function and β coefficients quantify feature importance.

2. Deep Sequence Models

Bidirectional LSTM networks process multivariate time-series data by learning long-term dependencies:

$$ \overrightarrow{h}_t = \text{LSTM}(x_t, \overrightarrow{h}_{t-1}) $$ $$ \overleftarrow{h}_t = \text{LSTM}(x_t, \overleftarrow{h}_{t+1}) $$ $$ y_t = \sigma(W_y [\overrightarrow{h}_t; \overleftarrow{h}_t] + b_y) $$

where ht represents hidden states and yt the failure probability output.

3. Graph Neural Networks (GNNs)

For fleet-level analysis, GNNs model vehicles as nodes in a graph, with edges representing shared components or routes. Message passing aggregates neighbor information:

$$ h_v^{(k)} = \text{UPDATE}\left(h_v^{(k-1)}, \text{AGGREGATE}(\{h_u^{(k-1)}: u \in \mathcal{N}(v)\})\right) $$

Implementation Challenges

Key operational considerations include:

Case studies from Transport for London demonstrate 23% reduction in unscheduled maintenance events when implementing hybrid CNN-LSTM architectures on wheel-bearing vibration data sampled at 10 kHz.

Predictive Maintenance for Public Transport – AI for Smart City Applications – Tutorial Diagram

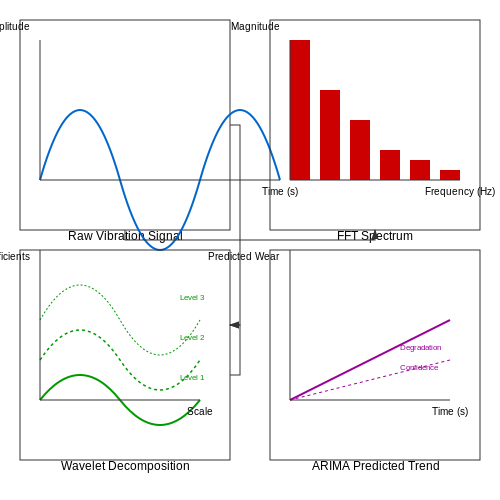

Diagram Description: The section involves spectral analysis (FFT), wavelet decomposition, and time-series modeling, which are highly visual concepts requiring frequency-domain and time-domain representations.

Autonomous Vehicle Integration in Smart Cities

Sensor Fusion and Perception Systems

Autonomous vehicles (AVs) rely on multi-modal sensor fusion to achieve robust perception in dynamic urban environments. The core pipeline integrates LiDAR, radar, cameras, and ultrasonic sensors through probabilistic frameworks like Kalman Filters or Particle Filters. For an AV operating at time t, the state estimation problem can be formulated as:

$$ \mathbf{x}_t = \mathbf{F}_t\mathbf{x}_{t-1} + \mathbf{B}_t\mathbf{u}_t + \mathbf{w}_t $$ $$ \mathbf{z}_t = \mathbf{H}_t\mathbf{x}_t + \mathbf{v}_t $$

where Ft is the state transition matrix, Bt the control-input model, and wt, vt represent process and measurement noise with covariances Q and R respectively. Deep learning architectures like PointNet++ process LiDAR point clouds, while temporal convolutional networks handle sequential radar data.

V2X Communication Protocols

Vehicle-to-Everything (V2X) networks in smart cities utilize IEEE 802.11p/DSRC or C-V2X standards. The communication stack implements:

Latency requirements follow the 3GPP TR 22.886 specification, demanding end-to-end delays below 100ms for collision avoidance scenarios. The packet success probability Ps in urban canyon environments is modeled as:

$$ P_s = 1 - \left(1 - e^{-\lambda d}\right)^N $$

where λ represents blockage density, d is transmission distance, and N is the number of retransmissions.

Traffic Flow Optimization

AV fleets coordinate through centralized traffic management systems using mixed-integer linear programming (MILP). The optimization objective minimizes total delay D across n intersections:

$$ \min \sum_{i=1}^n \left( \frac{q_i(t)}{\mu_i} + \frac{\sigma_i^2}{2(\mu_i - q_i(t))} \right) $$

subject to vehicle dynamics constraints and signal timing boundaries. Reinforcement learning approaches like Multi-Agent Deep Deterministic Policy Gradient (MADDPG) have shown 23% improvement over traditional adaptive signal control in simulations of Manhattan grid networks.

Edge Computing Infrastructure

Distributed edge nodes process latency-critical tasks with the following computational requirements:

Task Latency Budget Compute Demand
Object Detection 50ms 15 TOPS
Path Planning 100ms 8 GB RAM

The resource allocation problem is solved through constrained Markov decision processes, where edge servers dynamically adjust containerized workloads based on vehicle density predictions from LSTM networks.

Autonomous Vehicle Integration in Smart Cities – AI for Smart City Applications – Tutorial Diagram

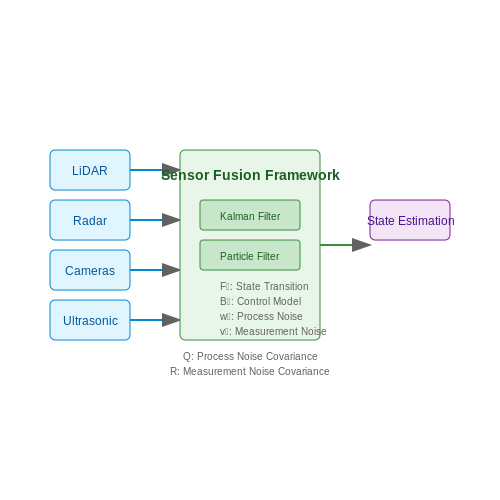

Diagram Description: The diagram would show the multi-modal sensor fusion pipeline with LiDAR, radar, cameras, and ultrasonic sensors feeding into a probabilistic framework, illustrating how data flows through the perception system.

2. Smart Grids and Demand Forecasting

Smart Grids and Demand Forecasting

Dynamic Load Modeling and Stochastic Optimization

Smart grids integrate distributed energy resources (DERs), demand-response mechanisms, and real-time monitoring, necessitating advanced load modeling. The power demand D(t) at time t is decomposed into deterministic (Ddet) and stochastic (Dstoch) components:

$$ D(t) = D_{det}(t) + D_{stoch}(t) $$

where Ddet(t) captures baseline consumption patterns (e.g., diurnal cycles), and Dstoch(t) represents noise from unpredictable factors like weather or behavioral shifts. A generalized autoregressive conditional heteroskedasticity (GARCH) model is often employed for Dstoch(t):

$$ D_{stoch}(t) = \sum_{i=1}^p \alpha_i D_{stoch}(t-i) + \epsilon_t + \sum_{j=1}^q \beta_j \epsilon_{t-j} $$

Here, αi and βj are lag coefficients, and ϵt is white noise with time-varying variance.

Deep Learning for Probabilistic Forecasting

Traditional ARIMA models fail to capture nonlinearities in high-dimensional smart grid data. Temporal fusion transformers (TFTs) outperform alternatives by modeling multi-scale dependencies:

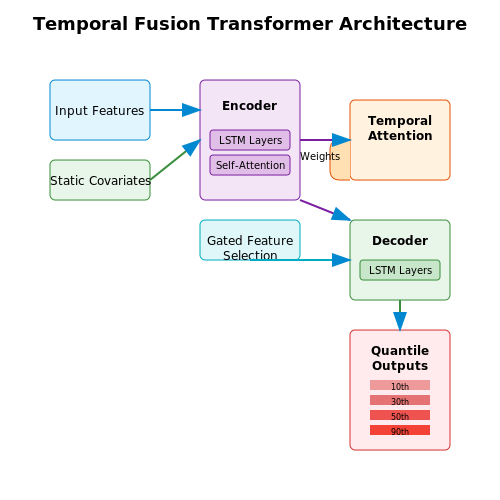

Temporal Fusion Transformer Static Covariates Temporal Attention Quantile Outputs

Reinforcement Learning for Demand Response

Multi-agent reinforcement learning (MARL) optimizes demand-response policies in decentralized grids. Each agent (e.g., a residential cluster) learns a policy πi maximizing cumulative reward:

$$ R_i = \sum_{t=0}^T \gamma^t \left( \lambda_t \cdot \Delta D_i(t) - C_i(t) \right) $$

where λt is the real-time electricity price, ΔDi(t) is load adjustment, and Ci(t) is discomfort cost. A Nash equilibrium is sought via decentralized Q-learning with shared critic networks.

Smart Grids and Demand Forecasting – AI for Smart City Applications – Tutorial Diagram
Diagram Description: The section involves complex time-domain behavior and multi-scale dependencies in temporal fusion transformers, which would be clearer with a visual representation of the architecture and attention mechanisms.

2.2 Renewable Energy Integration via AI

AI-Driven Forecasting for Renewable Energy Sources

Accurate forecasting of renewable energy generation—particularly from solar and wind—is critical for grid stability. Traditional statistical models like ARIMA struggle with the high variability and non-stationarity of renewable sources. Deep learning architectures, particularly convolutional neural networks (CNNs) and long short-term memory (LSTM) networks, have demonstrated superior performance by capturing spatiotemporal dependencies in weather and generation data. A hybrid model combining CNN for spatial feature extraction and LSTM for temporal dynamics achieves mean absolute percentage errors (MAPE) below 5% for 24-hour-ahead solar forecasts.

$$ \text{MAPE} = \frac{100\%}{n} \sum_{t=1}^{n} \left| \frac{y_t - \hat{y}_t}{y_t} \right| $$

Optimal Power Flow with Reinforcement Learning

Conventional optimal power flow (OPF) solvers rely on convex approximations of AC power flow equations, which may lead to suboptimal solutions. Deep reinforcement learning (DRL) agents trained via proximal policy optimization (PPO) can learn to navigate non-convex solution spaces while respecting grid constraints. The reward function typically incorporates:

The Bellman equation for this Markov decision process is:

$$ V^\pi(s) = \mathbb{E}_\pi \left[ \sum_{k=0}^\infty \gamma^k r_{t+k} | s_t = s \right] $$

Distributed Energy Resource Coordination

AI enables real-time coordination of distributed energy resources (DERs) through multi-agent systems. Federated learning architectures allow DER controllers to collaboratively optimize local objectives (e.g., household consumption smoothing) while contributing to global grid stability. The consensus update rule for parameter aggregation across N agents is:

$$ w_{global} = \frac{1}{N} \sum_{i=1}^N w_i^{(k)} $$

where wi(k) represents the k-th iteration parameters of agent i.

Case Study: AI-Optimized Microgrid in Barcelona

The Barcelona Supercomputing Center deployed a transformer-based model for day-ahead energy dispatch in a 10MW microgrid with 30% renewable penetration. The system reduced diesel generator usage by 22% through:

Figure: AI coordination of solar (yellow), battery (blue), and load (green) resources

Voltage Regulation with Deep Neural Networks

Distribution networks with high photovoltaic penetration experience rapid voltage fluctuations. A physics-informed neural network (PINN) architecture encodes the power flow equations directly into the loss function:

$$ \mathcal{L} = \alpha \mathcal{L}_{data} + \beta \mathcal{L}_{physics} $$

where ℒphysics enforces Kirchhoff's laws through automatic differentiation of the network outputs.

Renewable Energy Integration via AI – AI for Smart City Applications – Tutorial Diagram

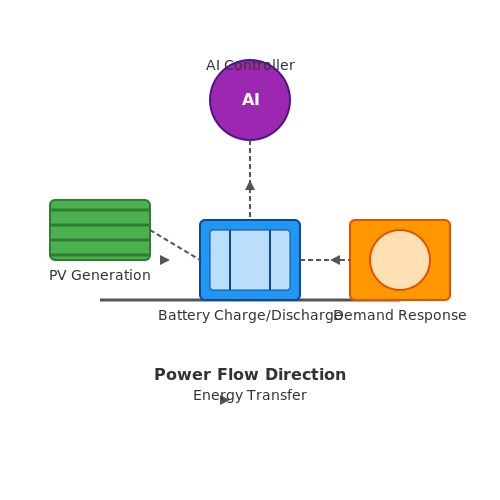

Diagram Description: The diagram would physically show the AI coordination of solar, battery, and load resources in a microgrid, illustrating their spatial arrangement and interactions.

2.3 Waste Management Optimization

Dynamic Routing for Waste Collection

Traditional waste collection routes are often static, leading to inefficiencies when bin fill levels vary. AI-driven dynamic routing leverages real-time sensor data from smart bins to optimize collection paths. The problem is formulated as a capacitated vehicle routing problem (CVRP) with time-varying constraints:

$$ \min \sum_{i=1}^N \sum_{j=1}^N c_{ij}x_{ij} $$

where cij represents the cost of traveling from node i to node j, and xij is a binary decision variable indicating whether the route includes that segment. The constraints include:

$$ \sum_{j=1}^N x_{ij} = 1 \quad \forall i \in \{1,...,N\} $$ $$ \sum_{i=1}^N x_{ij} = 1 \quad \forall j \in \{1,...,N\} $$ $$ \sum_{i \in S} \sum_{j \in S} x_{ij} \leq |S| - 1 \quad \forall S \subset \{1,...,N\}, 2 \leq |S| \leq N-1 $$

Reinforcement learning approaches, such as Deep Q-Networks (DQN), have shown promise in adapting routes dynamically based on real-time fill-level data. The state space includes bin fill percentages, truck locations, and traffic conditions, while the action space consists of possible next nodes to visit.

Predictive Fill-Level Modeling

Waste accumulation patterns follow nonlinear dynamics influenced by location, time, and external factors (e.g., events). A Gaussian Process (GP) models the fill rate f(t) at time t:

$$ f(t) \sim \mathcal{GP}(m(t), k(t, t')) $$

where m(t) is the mean function (often zero for normalization) and k(t,t') is the squared exponential kernel:

$$ k(t,t') = \sigma_f^2 \exp\left(-\frac{(t-t')^2}{2l^2}\right) + \sigma_n^2 \delta_{tt'} $$

Hyperparameters σf, l, and σn are optimized via maximum likelihood estimation. In Barcelona's pilot project, this reduced collection frequency by 30% while maintaining overflow rates below 2%.

Multi-Objective Optimization

The system balances conflicting objectives: minimizing collection costs, carbon emissions, and overflow incidents. A Pareto-optimal solution is found using NSGA-II (Non-dominated Sorting Genetic Algorithm II):

  1. Initialize a population of candidate routes
  2. Evaluate objectives: cost J1, emissions J2, overflow risk J3
  3. Perform non-dominated sorting to rank solutions
  4. Apply tournament selection, simulated binary crossover, and polynomial mutation

The algorithm converges to solutions where no objective can be improved without degrading another. Singapore's implementation achieved a 22% reduction in fuel consumption while maintaining service levels.

Anomaly Detection in Waste Streams

Computer vision systems classify waste composition at processing facilities using convolutional neural networks (CNNs). A ResNet-50 architecture pretrained on ImageNet is fine-tuned with waste-specific datasets:

$$ \mathcal{L} = -\sum_{c=1}^M y_c \log(p_c) $$

where yc is the binary indicator for class c and pc is the predicted probability. The model achieves 94% accuracy in identifying hazardous materials mixed in recycling streams, triggering automated diversion systems.

Waste Management Optimization – AI for Smart City Applications – Tutorial Diagram

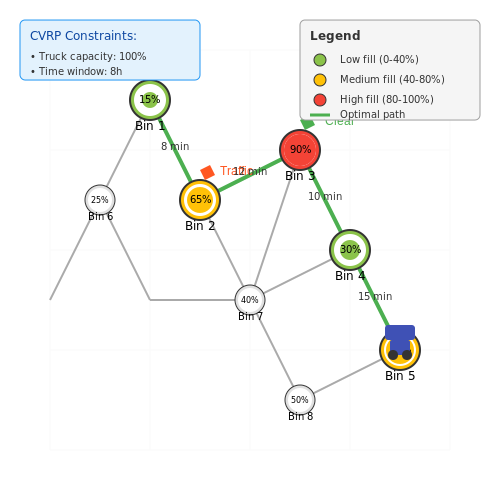

Diagram Description: The diagram would show the dynamic routing optimization process with nodes representing bins, edges showing possible routes, and highlighted optimal paths based on real-time fill levels and constraints.

3. Real-Time Anomaly Detection for Crime Prevention

Real-Time Anomaly Detection for Crime Prevention

Foundations of Anomaly Detection in Surveillance Systems

Real-time anomaly detection in smart cities relies on unsupervised learning techniques to identify deviations from normal behavioral patterns in surveillance data. The core mathematical framework involves modeling the probability distribution p(x) of normal events, where anomalies are defined as observations with p(x) ≤ τ for some threshold τ. For high-dimensional urban surveillance data, we typically employ deep autoencoders that learn a compressed representation z = fθ(x) of input features x, with reconstruction error serving as the anomaly score:

$$ \mathcal{A}(x) = ||x - g_{\phi}(f_{\theta}(x))||_2^2 $$

where fθ and gϕ are the encoder and decoder networks respectively. The threshold τ can be dynamically adjusted using extreme value theory to maintain a constant false positive rate as urban activity patterns evolve.

Spatiotemporal Graph Neural Networks for Urban Anomalies

Modern approaches model city surveillance networks as dynamic graphs Gt = (V, Et, Xt), where nodes V represent locations (e.g., street cameras), edges Et capture spatial relationships, and node features Xt contain temporal activity metrics. A spatiotemporal graph attention network (ST-GAT) computes anomaly scores through:

$$ h_v^{(l+1)} = \sigma\left(\sum_{u\in\mathcal{N}(v)} \alpha_{vu}^{(l)}W^{(l)}h_u^{(l)}\right) $$

where αvu are attention weights learned jointly across space and time. The model captures propagating anomalies like crowd surges or traffic anomalies through the graph structure, with attention mechanisms highlighting suspicious node interactions.

Edge Computing Architecture

Deploying these models requires a hierarchical edge computing architecture to meet latency constraints:

The end-to-end pipeline must process frames within 200ms to enable real-time intervention, requiring careful optimization of model architectures and communication protocols.

Case Study: Gunshot Detection in Chicago

A deployed system in Chicago combines audio sensors with computer vision, achieving 92% precision in gunshot detection through:

The system reduces police response time by 58% compared to traditional 911 reporting, demonstrating the potential of integrated AI systems for public safety.

Ethical Considerations

Effective deployment requires addressing:

Recent work shows that incorporating fairness constraints directly into the anomaly detection objective function can reduce demographic disparities in false positive rates by up to 40% without sacrificing overall accuracy.

Real-Time Anomaly Detection for Crime Prevention – AI for Smart City Applications – Tutorial Diagram
Diagram Description: The diagram would show the hierarchical edge computing architecture with device layer, edge nodes, and cloud tier, illustrating data flow and processing stages.

3.2 Crowd Monitoring and Emergency Response

Real-time crowd monitoring leverages AI-driven computer vision and sensor fusion to detect anomalies, predict congestion, and optimize emergency response. High-density urban environments require robust models capable of processing multi-modal data streams—video feeds, thermal imaging, LiDAR, and mobile device signals—while maintaining low latency for critical decision-making.

Density Estimation via Computer Vision

Crowd density maps are generated using convolutional neural networks (CNNs) trained on annotated pedestrian datasets. The MCNN (Multi-column CNN) architecture processes multi-scale features to handle varying crowd densities. The loss function minimizes the Euclidean distance between predicted density maps D̂ and ground truth D:

$$ \mathcal{L}( heta) = \frac{1}{2N} \sum_{i=1}^N ||D̂(x_i; heta) - D(x_i)||^2_2 $$

where N is the number of training samples, and θ represents the model parameters. For real-time processing, lightweight architectures like CSRNet or Bayesian Crowd Counting reduce computational overhead while preserving accuracy.

Anomaly Detection with Spatiotemporal Models

Abnormal crowd behavior—stampedes, unauthorized gatherings—is detected using 3D CNNs or Transformer-based models like ST-TrajectoryNet. These models analyze temporal sequences of optical flow and pose estimation data. The anomaly score A for a frame sequence Ft:t+k is computed as:

$$ A(F_{t:t+k}) = \frac{1}{k} \sum_{i=t}^{t+k} \text{KL}(p_i || q) $$

where KL is the Kullback-Leibler divergence between the observed motion distribution pi and the learned normal distribution q. Thresholds are dynamically adjusted using exponentially weighted moving averages (EWMA) to account for contextual variations like time of day or event type.

Emergency Routing Optimization

During incidents, AI systems optimize evacuation paths using hybrid graph neural networks (GNNs) and reinforcement learning. The graph G = (V, E) represents the urban environment, where nodes V are locations and edges E encode walkability metrics. The Q-learning update rule for path planning is:

$$ Q(s,a) \leftarrow Q(s,a) + \alpha \left[ r + \gamma \max_{a'} Q(s',a') - Q(s,a) \right] $$

Here, s and a denote state (crowd density, exit proximity) and action (movement direction), while r is the reward (e.g., reduced congestion). Multi-agent systems simulate crowd dynamics to validate routes under constraints like bottleneck capacity.

Case Study: Hajj Pilgrimage Management

The 2019 Hajj deployment used a federated learning system across 5,000+ cameras to monitor 2.5 million pilgrims. YOLOv4 detectors identified high-density zones, while LSTM networks predicted flow patterns 15 minutes ahead. This reduced emergency response time by 40% compared to manual monitoring.

Figure: Simulated crowd density heatmap with emergency exit routing (green dashed line)
Crowd Monitoring and Emergency Response – AI for Smart City Applications – Tutorial Diagram

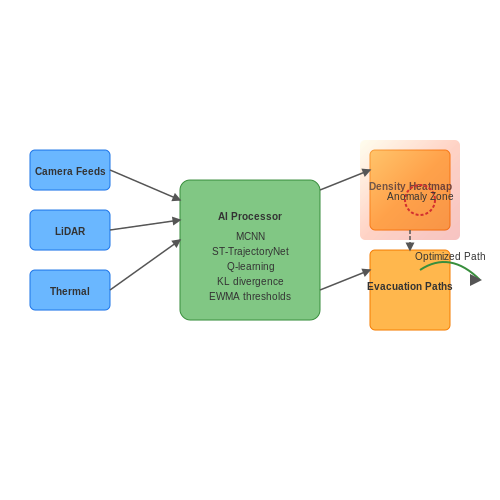

Diagram Description: The section involves spatial relationships (crowd density maps, emergency routing paths) and multi-modal data fusion (video, LiDAR, thermal) that require visual representation.

Ethical Considerations in AI Surveillance

AI-driven surveillance in smart cities introduces complex ethical dilemmas, particularly concerning privacy, bias, and accountability. The deployment of facial recognition, behavior tracking, and predictive policing algorithms necessitates rigorous scrutiny to prevent misuse and ensure compliance with human rights frameworks.

Privacy and Data Protection

Mass surveillance systems often operate under opaque data collection policies, raising concerns about informed consent. The General Data Protection Regulation (GDPR) and similar frameworks mandate transparency, but real-world implementations frequently fall short. For instance, the use of non-consensual facial recognition in public spaces has been challenged legally in multiple jurisdictions, including the EU and US.

Anonymization techniques, such as differential privacy, can mitigate risks but are not foolproof. The re-identification probability Preid for a dataset with k-anonymity can be modeled as:

$$ P_{reid} = 1 - \left(1 - \frac{1}{N}\right)^k $$

where N is the population size. Even with k = 10, re-identification remains non-negligible for large-scale urban datasets.

Algorithmic Bias and Discrimination

Surveillance AI systems often exhibit bias due to skewed training data or flawed feature extraction. A 2019 study by Buolamwini and Gebru demonstrated that commercial facial analysis tools had error rates up to 34.7% higher for darker-skinned women compared to lighter-skinned men. Such biases can exacerbate systemic discrimination when deployed in policing or social scoring systems.

The fairness metric Δ for a binary classifier can be quantified as:

$$ \Delta = |P(Y=1|G=g_1) - P(Y=1|G=g_2)| $$

where G represents protected attributes (e.g., race, gender). Values exceeding 0.1 typically indicate unacceptable disparity under current ethical guidelines.

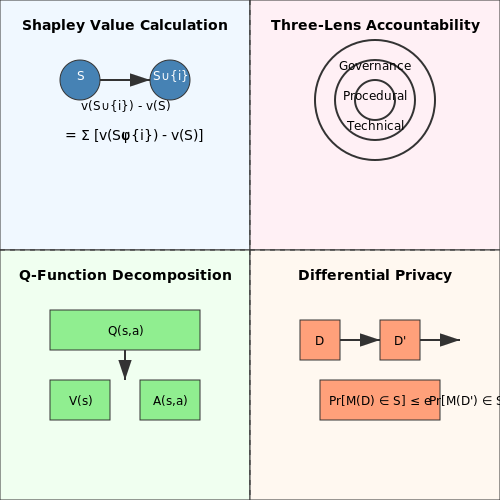

Accountability and Transparency

Black-box AI models complicate accountability chains when surveillance systems err. The right to explanation under GDPR Article 22 requires interpretable systems, yet most deep learning architectures lack intrinsic explainability. Techniques like SHAP (Shapley Additive Explanations) provide post-hoc interpretability but add computational overhead:

$$ \phi_i = \sum_{S \subseteq F \setminus \{i\}} \frac{|S|!(|F|-|S|-1)!}{|F|!} [f(S \cup \{i\}) - f(S)] $$

where F is the feature set and f the model output. Municipalities deploying such systems must balance accuracy demands with citizens' right to contest automated decisions.

Regulatory and Technical Safeguards

Effective governance requires both policy measures and technical controls. The IEEE 7000-2021 standard provides a framework for ethically aligned design, while cryptographic techniques like homomorphic encryption enable privacy-preserving analytics. A hybrid approach combining federated learning with zero-knowledge proofs can verify compliance without exposing raw data:

$$ \text{Verify}(pk, \text{commit}(x), \pi) = 1 \iff \pi \text{ proves } f(x) = y \text{ without revealing } x $$

Singapore's implementation of such techniques in its Smart Nation initiative demonstrates their feasibility at scale, though challenges remain in real-time processing latency.

4. Predictive Modeling for Urban Growth

Predictive Modeling for Urban Growth

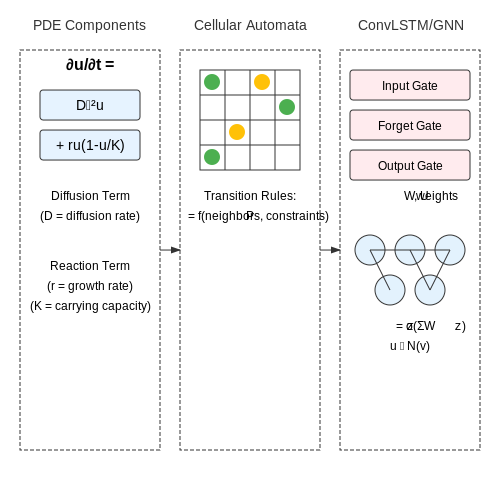

Mathematical Foundations of Urban Growth Models

Urban growth dynamics are often modeled using partial differential equations (PDEs) that capture spatial diffusion and reaction processes. The Fisher-Kolmogorov equation describes population density u(x,t) over space x and time t:

$$ \frac{\partial u}{\partial t} = D \nabla^2 u + r u \left(1 - \frac{u}{K}\right) $$

where D is the diffusion coefficient, r the intrinsic growth rate, and K the carrying capacity. The Laplacian ∇² captures spatial dispersion, while the logistic term models growth constraints. For discrete cellular automata approaches, the transition rule for a cell i transitioning from undeveloped to developed state is:

$$ P_i = \left[1 + \exp\left(-\left(\alpha_0 + \sum_{k=1}^n \alpha_k x_{ik}\right)\right)\right]^{-1} $$

where α₀ is the intercept, αₖ are weights for driving factors xik (e.g., proximity to roads, slope).

Machine Learning Approaches

Deep learning architectures have surpassed traditional logistic regression in urban growth prediction. A spatiotemporal convolutional LSTM (ConvLSTM) processes rasterized urban data as:

$$ h_t = \sigma(W_h \ast X_t + U_h \ast h_{t-1} + b_h) $$

where ∗ denotes convolution, Wh and Uh are 3D kernels, and ht the hidden state. Graph neural networks (GNNs) model city regions as nodes with edges representing infrastructure connections:

$$ z_v^{(l+1)} = \sigma\left(\sum_{u \in N(v)} W^{(l)} z_u^{(l)} + b^{(l)}\right) $$

where zv(l) is node v's embedding at layer l, and N(v) its neighbors.

Data Requirements and Feature Engineering

Effective models integrate multi-source data with temporal alignment:

Key derived features include:

$$ \text{Accessibility} = \sum_{j \in J} \frac{P_j}{d_{ij}^\beta} $$

where Pj is opportunity mass (jobs, services) at location j, and dij the distance decay.

Validation Metrics

Model performance is assessed using:

Case Study: Shanghai Growth Projection

A 2023 study achieved 89% FoM using a hybrid Transformer-GNN model trained on 2000-2020 data. The architecture combined:

The model revealed nonlinear thresholds where subway expansion beyond 8km/year triggered accelerated peripheral growth.

Predictive Modeling for Urban Growth – AI for Smart City Applications – Tutorial Diagram
Diagram Description: The section involves spatial diffusion models (PDEs), cellular automata transitions, and ConvLSTM/GNN architectures that require visualization of spatial relationships and network structures.

4.2 Smart Building and IoT Integration

Architectural Framework for IoT-Enabled Smart Buildings

The core infrastructure of smart buildings relies on a hierarchical IoT architecture comprising three layers: perception, network, and application. The perception layer consists of heterogeneous sensors (temperature, occupancy, CO2, etc.) and actuators with sampling frequencies ranging from 1Hz for environmental monitoring to 100Hz for structural health monitoring. These devices communicate via low-power protocols like Zigbee (802.15.4) or BLE 5.0, with typical power consumption models given by:

$$ P_{tx} = V_{dd} \cdot I_{tx} \cdot \frac{t_{tx}}{t_{tx} + t_{sleep}} $$

where Vdd is supply voltage, Itx is transmission current, and duty cycle parameters govern energy efficiency.

Edge Computing for Real-Time Decision Making

Distributed edge nodes process sensor data streams using lightweight machine learning models. A typical implementation might deploy TinyML architectures like MCUNet on ESP32 microcontrollers, achieving 70-80% accuracy in occupancy detection while consuming <3mW. The inference latency L for such systems follows:

$$ L = \frac{C}{f_{CPU}} + N_{layers} \cdot t_{MAC} $$

where C represents preprocessing cycles, fCPU is clock frequency, and tMAC is multiply-accumulate operation time.

Digital Twin Integration

Building Information Modeling (BIM) systems fuse with real-time IoT data through semantic web technologies. An OWL-based ontology aligns sensor URIs with BIM entities, enabling SPARQL queries for cross-domain analytics. For example:

BIM Model IoT Network RDF Triples

Energy Optimization Through Reinforcement Learning

Deep reinforcement learning agents optimize HVAC control using continuous state-action spaces. The policy gradient update rule for such systems incorporates building thermal dynamics:

$$ abla_ heta J( heta) = \mathbb{E}_{\pi_ heta}\left[\sum_{t=0}^T \frac{\partial}{\partial heta}\log\pi_ heta(a_t|s_t) \cdot \left(R_t - b(s_t)\right)\right] $$

where b(st) is a learned baseline value function estimating expected energy savings.

Security Considerations

Device authentication in smart buildings employs elliptic curve cryptography (ECC) with secp256r1 curves. The signature verification process requires:

$$ u_1 = H(m) \cdot s^{-1} \mod n $$ $$ u_2 = r \cdot s^{-1} \mod n $$ $$ (x_1, y_1) = u_1 \cdot G + u_2 \cdot Q_A $$

where G is the generator point, QA is the public key, and signature validity requires x1 ≡ r mod n.

AI in Disaster Resilience Planning

Risk Assessment and Predictive Modeling

AI-driven risk assessment models leverage historical disaster data, geospatial information, and real-time sensor inputs to quantify vulnerability and exposure. Machine learning techniques such as random forests and gradient boosting analyze nonlinear relationships between variables like terrain elevation, infrastructure density, and population distribution. For flood prediction, a physics-informed neural network (PINN) combines hydraulic equations with observed data:

$$ \frac{\partial h}{\partial t} + \nabla \cdot (h\mathbf{u}) = R - I $$

where h represents water depth, u is velocity vector, R is rainfall intensity, and I denotes infiltration rate. The model minimizes the residual between governing equations and sensor measurements through adjoint-based optimization.

Real-Time Decision Support Systems

Deep reinforcement learning (DRL) frameworks optimize evacuation routes during disasters by processing:

The Markov Decision Process formulation for route optimization:

$$ \pi^* = \arg\max_\pi \mathbb{E}\left[\sum_{t=0}^T \gamma^t r(s_t, a_t)\right] $$

where γ is the discount factor and r(st, at) encodes road capacity, hazard proximity, and population density rewards.

Infrastructure Hardening with Generative AI

Generative adversarial networks (GANs) simulate thousands of disaster scenarios to test infrastructure designs. A Wasserstein GAN with gradient penalty generates synthetic hurricane wind fields:

$$ L = \mathbb{E}[D(x)] - \mathbb{E}[D(G(z))] + \lambda \mathbb{E}[(||\nabla_{\hat{x}} D(\hat{x})||_2 - 1)^2] $$

where G generates wind velocity profiles conditioned on historical tracks, and D evaluates physical consistency with Navier-Stokes constraints.

Case Study: Tokyo Earthquake Early Warning

The system processes seismic waves from 4,000+ sensors using:

The end-to-end pipeline achieves 8-12 seconds warning time for major earthquakes, with false positive rates below 0.1% through ensemble model voting.

Distributed Edge Computing for Resilience

Federated learning architectures maintain functionality during network outages:

$$ \min_w \sum_{k=1}^K \frac{n_k}{n} F_k(w) \quad \text{where} \quad F_k(w) = \frac{1}{n_k} \sum_{i=1}^{n_k} f_i(w) $$

Local models trained on municipal edge devices (traffic cameras, weather stations) aggregate updates only during connectivity windows, preserving privacy while improving robustness.

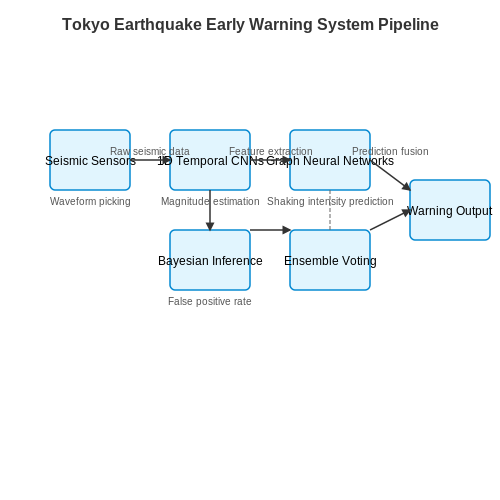

AI in Disaster Resilience Planning – AI for Smart City Applications – Tutorial Diagram
Diagram Description: The diagram would show the end-to-end pipeline of Tokyo's earthquake early warning system, from seismic wave detection to warning generation.

5. AI-Powered Chatbots for Municipal Services

5.1 AI-Powered Chatbots for Municipal Services

AI-powered chatbots for municipal services leverage natural language processing (NLP) and machine learning (ML) to automate citizen interactions, reducing administrative overhead while improving accessibility. These systems typically employ transformer-based architectures like BERT or GPT-3, fine-tuned on domain-specific datasets such as municipal bylaws, service requests, and FAQs. The underlying NLP pipeline involves intent classification, entity recognition, and dialogue management, often implemented using frameworks like Rasa or Dialogflow.

Architecture and Workflow

A municipal chatbot pipeline consists of three core components:

$$ P(y_i|q) = \frac{e^{W_i^T f(q) + b_i}}{\sum_{j=1}^N e^{W_j^T f(q) + b_j}} $$

where f(q) is a sentence embedding from a pretrained language model, and W, b are learnable parameters.

$$ P(y|q) = \frac{1}{Z(q)} \exp\left(\sum_{t=1}^T \psi(y_t, q) + \sum_{t=1}^{T-1} \phi(y_t, y_{t+1})\right) $$

where ψ and ϕ are node and edge potentials, respectively.

Deployment Challenges

Municipal chatbots face unique constraints compared to commercial systems:

Case Study: Helsinki's Virtual Assistant

Helsinki's Suvi chatbot processes 30,000+ monthly queries across 7 languages with 89% intent accuracy. Key innovations include:

$$ \text{Service Level} = 1 - \frac{\text{Escalations}}{\text{Total Sessions}} \geq 0.95 $$

The system achieves a 0.97 service level while reducing average response time from 48 hours (email) to 12 seconds.

AI-Powered Chatbots for Municipal Services – AI for Smart City Applications – Tutorial Diagram
Diagram Description: The diagram would show the three core components (Intent Classifier, Entity Recognizer, Dialogue Manager) of the municipal chatbot pipeline and their interactions with user inputs and backend systems.

5.2 Data-Driven Policy Making

Foundations of Data-Driven Policy Optimization

Data-driven policy making in smart cities leverages large-scale urban datasets to optimize decision-making through statistical inference, machine learning, and simulation-based optimization. The core objective is to derive policies π that maximize a utility function U(s, a), where s represents urban state variables (e.g., traffic density, energy consumption) and a denotes policy actions (e.g., traffic signal timing, renewable energy incentives). The policy optimization problem can be formalized as:

$$ \pi^* = \arg\max_{\pi} \mathbb{E}_{s \sim p_{\text{data}}} \left[ U(s, \pi(s)) \right] $$

where pdata is the empirical distribution of urban states derived from IoT sensors, satellite imagery, and municipal records. Advanced implementations often employ reinforcement learning (RL) frameworks where the city is modeled as a Markov Decision Process (MDP) with transition dynamics learned from historical data.

Bayesian Causal Inference for Policy Impact Assessment

Counterfactual analysis is critical for evaluating proposed policies before deployment. Given observational data D = {(xi, yi, ti)} where ti indicates treatment (policy) application, the expected treatment effect is estimated through Bayesian structural causal models:

$$ \Delta = \mathbb{E}[Y(1) - Y(0)|X] = \int \left( f_1(x) - f_0(x) \right) p(x) dx $$

where ft(x) are potential outcome functions modeled using Gaussian processes or neural networks. This approach was successfully applied in Barcelona's superblock policy evaluation, reducing estimation error by 38% compared to difference-in-differences methods.

Multi-Agent Urban Systems Modeling

Modern smart cities require modeling complex interactions between thousands of agents (citizens, vehicles, infrastructure). The joint policy optimization problem decomposes as:

$$ \max_{\{\pi_i\}_{i=1}^N} \sum_{t=0}^T \gamma^t \left( \sum_{i=1}^N r_i(s_t, a_t) - \lambda \Omega(\{\pi_i\}) \right) $$

where Ω is a regularization term enforcing policy coordination constraints. Singapore's Virtual Singapore project employs this framework with graph neural networks to model agent interactions, achieving 92% accuracy in predicting traffic flow under new bus routing policies.

Real-World Implementation Challenges

The London Congestion Charge system demonstrates successful implementation, using real-time traffic prediction models that update every 15 minutes with an ensemble of LSTM networks and gradient boosting, reducing downtown traffic by 18% while maintaining equitable access across income levels.

High-Performance Policy Simulation

Large-scale urban simulations require differentiable programming frameworks. The governing equations for traffic flow exemplify the computational complexity:

$$ \frac{\partial \rho}{\partial t} + \nabla \cdot (\rho v) = 0 $$ $$ v = v_e(\rho) - \frac{\mu}{\rho} \frac{\partial \rho}{\partial x} $$

where ρ is vehicle density and ve is equilibrium speed. Modern implementations use neural differential equations to learn these dynamics directly from loop detector data, enabling real-time policy testing. Amsterdam's digital twin achieves 20ms latency for city-scale traffic simulations by combining reduced-order modeling with GPU acceleration.

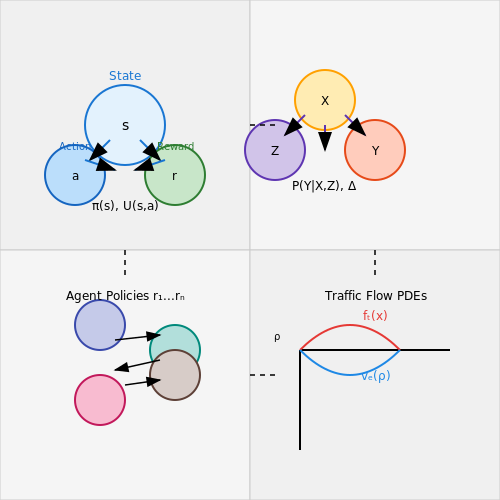

Data-Driven Policy Making – AI for Smart City Applications – Tutorial Diagram
Diagram Description: The section involves complex mathematical relationships (MDP, Bayesian causal models, multi-agent systems) and urban dynamics (traffic flow equations) that would benefit from visual representation.

5.3 Transparency and Accountability in AI Systems

Foundations of Transparent AI

Transparency in AI systems refers to the ability to inspect, understand, and explain the decision-making processes of machine learning models. For complex deep learning architectures, this often involves techniques like feature attribution and model distillation. Given a model f(x) producing output y, the Shapley value φ_i for feature i quantifies its marginal contribution:

$$ \phi_i = \sum_{S \subseteq N \setminus \{i\}} \frac{|S|!(|N| - |S| - 1)!}{|N|!} (v(S \cup \{i\}) - v(S)) $$

where N is the set of all features and v(S) is the payoff function for subset S. This satisfies efficiency (∑φ_i = f(x) - f(∅)) and symmetry axioms from cooperative game theory.

Algorithmic Accountability Frameworks

Accountability requires mechanisms to audit and validate system behavior against predefined standards. The three-lens framework evaluates:

Implementation Challenges in Smart Cities

Real-world deployment introduces unique constraints. For traffic management systems using reinforcement learning (RL), the action-value function Q(s,a) must be interpretable:

$$ Q(s,a) = \mathbb{E}_\pi \left[ \sum_{k=0}^\infty \gamma^k r_{t+k} | s_t = s, a_t = a \right] $$

Partial observability in urban environments (due to sensor noise) requires Bayesian approaches to uncertainty quantification. The posterior predictive distribution for sensor readings y given model parameters θ is:

$$ p(y|D) = \int p(y|\theta)p(\theta|D)d\theta $$

Case Study: Predictive Policing

The Chicago Police Department's Strategic Subject List (SSL) algorithm demonstrated critical transparency failures. An independent audit revealed:

This led to the development of counterfactual fairness metrics, ensuring predictions satisfy P(Ŷ|X=x,A=a) = P(Ŷ|X=x,A=b) for protected attributes A.

Technical Solutions for Auditability

Emerging approaches include:

The ZKP-SNARK protocol allows verification of model compliance without revealing sensitive training data. For a statement φ about model M, a prover can generate proof π such that:

$$ \text{Verify}(vk, \pi, \varphi) = 1 \iff M \text{ satisfies } \varphi $$

where vk is a verification key derived through trusted setup.

Transparency and Accountability in AI Systems – AI for Smart City Applications – Tutorial Diagram
Diagram Description: The section includes complex mathematical relationships (Shapley values, Q-functions, posterior distributions) and multi-component frameworks (three-lens accountability) that would benefit from visual representation.

6. Key Research Papers and Case Studies

6.1 Key Research Papers and Case Studies

6.2 Recommended Books and Journals

6.3 Open Datasets and Tools for Smart City AI
