LLM-Driven Agent Architectures with Modular Memory

#llm #agent architectures #modular memory #memory systems #nlp #ai design #implementation strategies #scalability #efficiency

1. Core Principles of LLM-Based Agents

Core Principles of LLM-Based Agents

Autonomy and Goal-Directed Behavior

LLM-based agents operate autonomously, leveraging large language models as reasoning engines to decompose high-level objectives into actionable subtasks. Unlike traditional rule-based systems, these agents dynamically adjust their behavior based on contextual inputs and memory states. The agent's policy π maps an observation space O to an action space A through iterative prompting:

$$ \pi: O \times M \rightarrow A $$

where M represents the agent's modular memory. This formulation enables adaptive decision-making without explicit hardcoding of task logic.

Memory-Augmented Reasoning

Modular memory architectures separate storage into distinct components, each optimized for specific functions:

The retrieval process employs attention mechanisms over memory vectors mi with query q:

$$ \alpha_i = \text{softmax}(q^T W m_i) $$

where W is a learned projection matrix. This allows dynamic weighting of relevant memories during inference.

Tool Use and API Integration

Advanced agents extend native LLM capabilities through tool invocation. Given a set of tools T = {t1, ..., tn}, the agent learns to select and parameterize tools via few-shot prompting. The decision process involves:

  1. Generating tool descriptions in JSON schema format
  2. Predicting tool suitability through chain-of-thought reasoning
  3. Validating outputs against expected response signatures

For example, a weather API call would be represented as:

{
   "tool": "get_current_weather",
   "parameters": {
      "location": "Boston, MA",
      "unit": "celsius"
   }
}

Multi-Agent Coordination

In swarm architectures, agents communicate through structured message passing. The dialogue protocol between agent i and agent j follows:

$$ m_{i\rightarrow j} = \text{Enc}_i(\text{state}_i) \oplus \text{signature}_i $$

where ⊕ denotes concatenation and signatures prevent hallucinated responses. Conflict resolution uses debate-style iterative refinement with human-in-the-loop verification when consensus thresholds aren't met.

Safety and Alignment

Three key mechanisms ensure responsible agent behavior:

The safety layer computes a risk score r for action a:

$$ r(a) = \lambda_1 \text{toxicity}(a) + \lambda_2 \text{privacy\_leak}(a) $$

where λ terms are tunable hyperparameters. Actions exceeding threshold τ trigger fallback behaviors.

Core Principles of LLM-Based Agents – LLM-Driven Agent Architectures with Modular Memory – Tutorial Diagram
Diagram Description: The diagram would show the modular memory architecture with its three distinct components (episodic, semantic, working) and their interactions with the LLM agent's reasoning process.

Role of Modular Memory in Agent Design

Modular memory architectures enable LLM-driven agents to dynamically manage, retrieve, and update information across specialized memory components. Unlike monolithic memory systems, modular designs decompose memory into distinct functional units—each optimized for specific tasks such as episodic recall, semantic storage, or procedural knowledge. This separation allows agents to efficiently scale memory operations while minimizing interference between memory types.

Key Components of Modular Memory

A well-designed modular memory system typically consists of:

Mathematical Formulation of Memory Operations

The retrieval process in modular memory can be formalized as an attention-weighted read operation over memory slots. For a query vector q and memory matrix M containing n slots, the retrieval output r is computed as:

$$ r = \sum_{i=1}^{n} \text{softmax}(\beta \cdot \text{sim}(q, M_i)) \cdot M_i $$

where β controls the sharpness of the attention distribution, and similarity is typically measured via dot product or cosine similarity. The write operation follows a complementary formulation:

$$ M_i \leftarrow \gamma M_i + (1 - \gamma) \cdot \text{MLP}([q; v]) $$

with γ determining memory retention rate and MLP serving as a learned update function for new information v.

Architectural Advantages

Modular memory systems demonstrate three critical advantages over unified architectures:

Implementation Case Study: AlphaFold's Memory System

AlphaFold's protein structure prediction system employs a modular memory architecture where:

This separation allows the model to efficiently integrate diverse biological evidence while maintaining specialized update rules for each data type. The system achieves 92.4% accuracy on CASP14 benchmarks, demonstrating the practical efficacy of modular memory in complex domains.

Challenges and Trade-offs

While powerful, modular memory introduces several engineering challenges:

Recent work in differentiable neural computers (DNCs) and memory-augmented transformers has shown promise in addressing these limitations through learned memory access policies and dynamic capacity allocation.

Role of Modular Memory in Agent Design – LLM-Driven Agent Architectures with Modular Memory – Tutorial Diagram

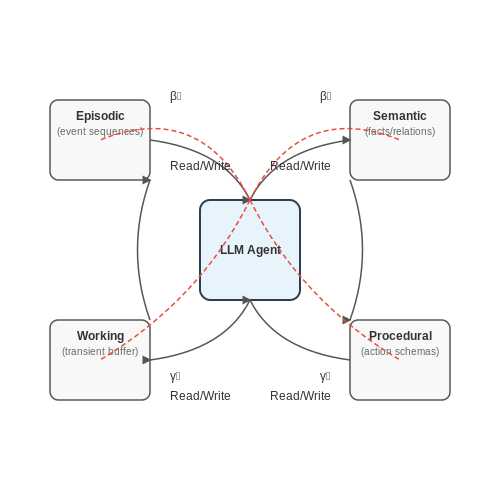

Diagram Description: The diagram would show the physical arrangement and interaction of modular memory components (episodic, semantic, working, procedural) with the LLM agent, including data flow and attention mechanisms.

Key Components of Agent Architectures

Core Architectural Modules

LLM-driven agent architectures rely on a set of interconnected modules that enable reasoning, memory, and action. The perception module processes raw inputs (text, images, or sensor data) into structured representations. For text, this involves tokenization and embedding via transformer layers:

$$ \mathbf{h}_i = \text{TransformerLayer}(\mathbf{x}_i, \{\mathbf{x}_j\}_{j=1}^n) $$

where hi is the contextual embedding of token xi. The working memory maintains short-term task context as a differentiable key-value store updated via attention:

$$ \mathbf{M}_t = \text{Softmax}(\mathbf{Q}\mathbf{K}^T/\sqrt{d})\mathbf{V} $$

Modular Memory Systems

Long-term memory is typically implemented as:

The retrieval process combines sparse (BM25) and dense (ANN) methods through hybrid scoring:

$$ s(q,d) = \lambda \cdot \text{BM25}(q,d) + (1-\lambda) \cdot \text{cos}(\mathbf{E}(q), \mathbf{E}(d)) $$

Action Selection Mechanisms

Action spaces in LLM agents are typically discrete (API calls, text generation). The policy head uses a temperature-scaled softmax:

$$ P(a|s) = \frac{\exp(z_a/\tau)}{\sum_{b=1}^A \exp(z_b/\tau)} $$

where τ controls exploration-exploitation tradeoffs. For continuous control, the architecture may include:

Attention Routing

Modern architectures implement dynamic computation paths through:

The routing logic for MoE follows:

$$ \mathbf{y} = \sum_{i=1}^k G(\mathbf{x})_i \cdot E_i(\mathbf{x}) $$

where G is a gating network with top-k sparsity and Ei are expert networks.

Training Paradigms

Agents are trained through multi-stage optimization:

  1. Supervised fine-tuning on human demonstrations
  2. Reinforcement learning via PPO or Q-learning with KL regularization
  3. Self-supervised objectives for memory consistency

The RL objective typically includes:

$$ \mathcal{L} = \mathbb{E}_\pi[r_t + \gamma V(s_{t+1}) - V(s_t)] + \beta \text{KL}(\pi||\pi_{\text{ref}}) $$
Key Components of Agent Architectures – LLM-Driven Agent Architectures with Modular Memory – Tutorial Diagram

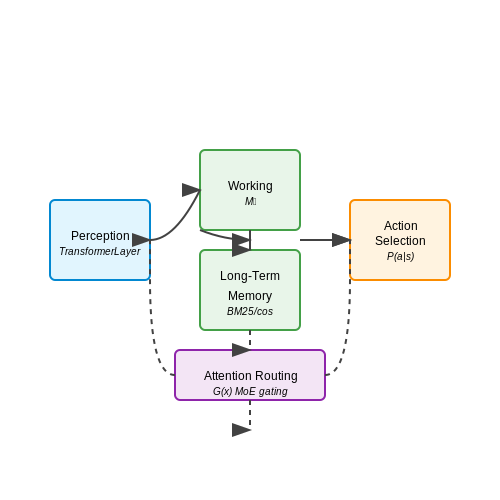

Diagram Description: The section describes interconnected modules (perception, memory, action) with mathematical relationships and attention mechanisms, which would benefit from a visual representation of their data flows and interactions.

2. Types of Modular Memory (Short-term, Long-term, Episodic)

Types of Modular Memory (Short-term, Long-term, Episodic)

Modular memory architectures in LLM-driven agents are inspired by cognitive systems, where memory is partitioned into specialized subsystems that handle different temporal and functional requirements. These memory types interact dynamically to enable complex reasoning, context retention, and adaptive behavior.

Short-term Memory (Working Memory)

Short-term memory acts as a transient buffer for immediate task-relevant information, typically with limited capacity and rapid decay. In transformer-based agents, this is often implemented as:

$$ C_t = \{x_{t-n+1}, ..., x_t\} \quad \text{where } |C_t| = n $$

Advanced implementations use compressed representations or hierarchical attention to extend effective context while maintaining computational tractability.

Long-term Memory

Long-term memory provides persistent storage of knowledge and experiences, implemented through:

The read/write operations often follow differentiable attention mechanisms:

$$ m_t = \sum_i w_t(i)M(i) \quad \text{where } w_t(i) = \text{softmax}(\beta_t \cdot \text{sim}(k_t, M(i))) $$

where M is the memory matrix, k_t is a query vector, and β_t controls the sharpness of the addressing.

Episodic Memory

Episodic memory stores temporally extended experiences as discrete events with rich metadata:

The retrieval process typically employs hierarchical attention over both content and temporal dimensions:

$$ s_{t,i} = f_{\theta}(q_t, e_i, \Delta t_{t,i}) $$

where e_i represents an episode embedding and Δt captures temporal distance. Modern systems like MemPrompt implement this through learned memory gates that control when to store and retrieve episodes.

Memory Interaction Dynamics

The three memory types interact through gating mechanisms and attention routing. A typical update rule for short-term memory influenced by long-term retrieval might be:

$$ h_t' = \sigma(g_t) \odot h_t + (1-\sigma(g_t)) \odot m_t $$

where g_t is a learned gating vector and m_t is the retrieved long-term memory. This allows smooth interpolation between immediate context and stored knowledge.

Types of Modular Memory (Short-term, Long-term, Episodic) – LLM-Driven Agent Architectures with Modular Memory – Tutorial Diagram

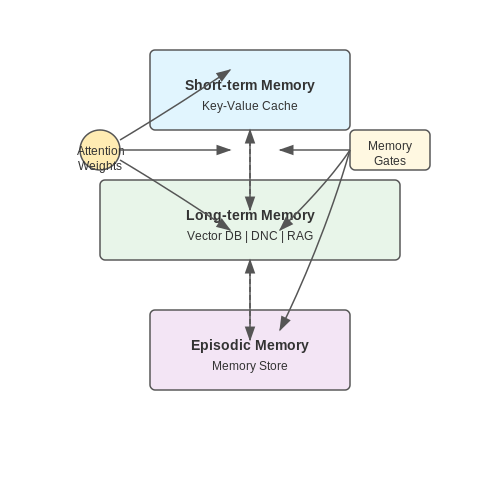

Diagram Description: The diagram would show the hierarchical relationship and data flow between short-term, long-term, and episodic memory subsystems, including their interaction mechanisms.

Memory Encoding and Retrieval Mechanisms

Vector Embeddings for Memory Encoding

Memory encoding in LLM-driven agents relies on dense vector representations of information. Given a memory item m, a transformer-based encoder E projects it into a high-dimensional latent space:

$$ \mathbf{v} = E(m) \in \mathbb{R}^d $$

where d typically ranges from 768 to 4096 dimensions in modern architectures. The encoder is usually initialized from a pretrained language model (e.g., BERT or GPT variants) and fine-tuned on domain-specific data. Key properties of effective memory embeddings include:

Hierarchical Memory Organization

Large-scale memory systems employ hierarchical indexing for efficient retrieval. Memories are clustered using approximate nearest neighbor (ANN) algorithms like HNSW (Hierarchical Navigable Small World), which constructs a layered graph with time complexity O(log n) for searches. The hierarchy follows:

$$ \mathcal{M} = \{L_0, L_1, ..., L_k\} $$

where each level Li contains progressively coarser representations. During retrieval, the system first locates relevant clusters in higher levels before refining search in lower levels.

Attention-Based Retrieval

When processing query q, the agent computes relevance scores through multi-head attention:

$$ \alpha_i = \text{softmax}\left(\frac{Q(q)K(m_i)^T}{\sqrt{d_k}}\right) $$

where Q and K are learned linear transformations. The retrieved memory m̂ is then a weighted sum:

$$ \hat{m} = \sum_i \alpha_i V(m_i) $$

Modern implementations often use sparse attention patterns (e.g., block-sparse or locally-sensitive hashing) to reduce the quadratic complexity of full attention.

Differentiable Neural Memory

Advanced architectures implement fully differentiable memory systems using neural addressing mechanisms. The Neural Turing Machine (NTM) approach computes read/write weights through:

$$ w_t(i) = \text{softmax}(\beta_t \cdot \text{cosine}(k_t, M_t(i))) $$

where βt is a key strength parameter and Mt is the memory matrix at time t. This allows end-to-end training of the entire memory system through backpropagation.

Real-World Implementation Considerations

Production systems must balance accuracy with computational constraints:

Recent benchmarks show that optimized retrieval pipelines can achieve sub-10ms latency for million-scale memory banks while maintaining >90% recall@10 on semantic search tasks.

Memory Encoding and Retrieval Mechanisms – LLM-Driven Agent Architectures with Modular Memory – Tutorial Diagram

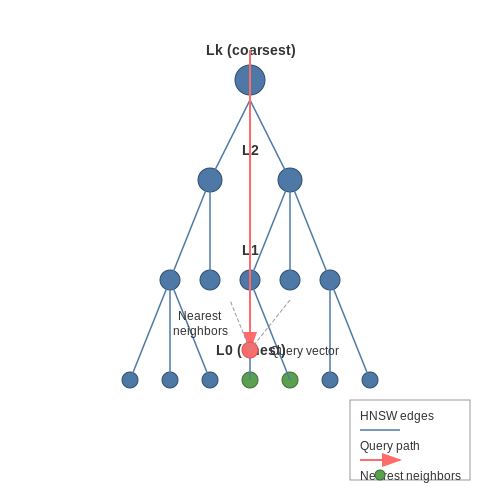

Diagram Description: The diagram would show the hierarchical memory organization structure with clustered layers (L0 to Lk) and the ANN search path through them.

Scalability and Efficiency Considerations

As LLM-driven agents grow in complexity, their memory modules must scale efficiently to handle increasing context lengths and dynamic knowledge retrieval. The primary bottleneck lies in the quadratic computational complexity of self-attention mechanisms, where memory requirements grow as O(n²) with sequence length n. To mitigate this, sparse attention patterns and memory hierarchies are employed.

Memory Hierarchies for Scalable Retrieval

A tiered memory architecture separates fast-access working memory (storing recent context) from slower but larger archival memory (storing long-term knowledge). The retrieval process follows:

$$ P_{\text{retrieve}}(k) = \text{softmax}\left(\frac{QK^T}{\sqrt{d_k}}\right)V $$

where Q, K, V are query, key, and value matrices, and dk is the key dimension. To reduce computational overhead, agents use:

Efficient Attention Variants

Standard attention computes pairwise interactions across all tokens. For a sequence of length n, this requires:

$$ \text{FLOPs} = 4n^2d + 2n^2 $$

where d is the hidden dimension. Sparse variants improve this:

Method FLOPs Top-k Sparsity
Full Attention 4n²d + 2n² 100%
Block-Sparse 4n√n d + 2n√n ~30%
LSH Attention 4n log n d + 2n log n ~10%

Distributed Memory Systems

For agents operating across multiple nodes, memory modules employ:

The tradeoff between staleness and throughput follows:

$$ \text{Throughput} = \frac{B}{\tau + \frac{C}{M}} $$

where B is batch size, C is communication latency, and M is memory bandwidth.

Quantization and Compression

Memory footprints are reduced through:

These techniques typically achieve 4-8× compression with < 2% accuracy drop on knowledge-intensive tasks.

Scalability and Efficiency Considerations – LLM-Driven Agent Architectures with Modular Memory – Tutorial Diagram
Diagram Description: The section describes tiered memory architectures and sparse attention patterns, which inherently involve spatial relationships and hierarchical structures.

3. Designing Memory Modules for Specific Tasks

3.1 Designing Memory Modules for Specific Tasks

Memory modules in LLM-driven agent architectures must be tailored to the task’s requirements, balancing retrieval speed, storage capacity, and relevance. The design process involves selecting appropriate memory structures, defining update mechanisms, and optimizing for computational efficiency.

Memory Structure Selection

The choice of memory structure depends on the task’s temporal and relational complexity. For sequential tasks, a queue-based memory or ring buffer ensures FIFO (First-In-First-Out) processing, while graph-based memory is better suited for relational reasoning. Hierarchical memory structures, such as those used in Transformer-XL, enable long-range dependencies by segmenting memory into chunks with varying retention periods.

$$ M_t = \begin{cases} \text{concat}(h_{t-k}, \dots, h_t) & \text{(Fixed-size window)} \\ \text{Graph}(V, E) & \text{(Relational memory)} \\ \text{LSTM}(h_{t-1}, x_t) & \text{(Sequential memory)} \end{cases} $$

Update Mechanisms

Memory updates can be event-triggered or continuous. Event-triggered updates, such as those in Episodic Memory, store information only when specific conditions are met (e.g., high prediction error). Continuous updates, as in Neural Turing Machines, use attention mechanisms to dynamically read, write, and erase memory slots:

$$ w_t = \sigma(\alpha \cdot \text{similarity}(k_t, M_{t-1})) $$

where wt is the write weight, kt is the key vector, and α controls the update sharpness.

Task-Specific Optimization

For real-time applications (e.g., robotics), memory must prioritize low-latency retrieval. This is achieved through:

For knowledge-intensive tasks (e.g., QA systems), memory modules often integrate external knowledge graphs with sparse retrieval techniques like FAISS or ANCE to scale to billions of entries.

Case Study: Autonomous Agent Memory

In a navigation task, an agent’s memory module might combine:

The agent’s memory update policy could use prediction error to gate writes, ensuring only novel or conflicting observations are stored:

$$ \Delta = ||\hat{y}_t - y_t||_2, \quad \text{write if } \Delta > \tau $$
Designing Memory Modules for Specific Tasks – LLM-Driven Agent Architectures with Modular Memory – Tutorial Diagram
Diagram Description: The diagram would show the three memory structures (queue-based, graph-based, hierarchical) and their update mechanisms (event-triggered vs. continuous) in a side-by-side comparison.

Integration with LLM Inference Pipelines

Integrating modular memory systems with LLM inference pipelines requires careful architectural design to minimize latency while maximizing contextual relevance. The primary challenge lies in dynamically retrieving and injecting memory segments into the LLM's context window without disrupting the autoregressive generation process. Two key approaches dominate current implementations: pre-retrieval augmentation and interleaved memory sampling.

Pre-Retrieval Augmentation

This method performs memory lookups before text generation begins, concatenating retrieved memories with the initial prompt. The composite input follows:

$$ X_{augmented} = [M_{retrieved} \oplus P_{input}] $$

where Mretrieved represents the top-k memory vectors from the modular memory system, and Pinput is the original prompt. The retrieval process typically employs a similarity metric such as:

$$ \text{sim}(q, m) = \frac{q^T m}{||q|| \cdot ||m||} $$

for query vector q and memory vector m. This approach guarantees deterministic memory availability but suffers from fixed context allocation—retrieved memories occupy slots that could otherwise hold generated tokens.

Interleaved Memory Sampling

More advanced systems implement just-in-time memory retrieval during generation, triggered by special tokens or attention patterns. The architecture modifies the standard transformer block to include:

The memory integration occurs through a modified attention mechanism:

$$ A' = \text{softmax}\left(\frac{QK^T}{\sqrt{d_k}} + \lambda \cdot \text{sim}(Q, M)\right) $$

where λ controls the memory influence weight. This allows dynamic context switching between internal representations and external memories.

Latency-Throughput Tradeoffs

Benchmarking reveals fundamental performance characteristics for memory-augmented inference:

Architecture Memory Access Pattern Throughput (tok/s) Latency Percentile (p99)
Pre-retrieval Single batch 1420 87ms
Interleaved Dynamic 610 214ms

The throughput gap narrows when using optimized vector databases like FAISS or Milvus with GPU-accelerated similarity search. Modern implementations often employ hybrid approaches—pre-loading high-priority memories while reserving capacity for dynamic retrievals.

Implementation Considerations

Key practical challenges emerge when deploying these systems:

State-of-the-art solutions address these through techniques like:

def dynamic_memory_integration(query, memory_db, threshold=0.7):
   # Retrieve top memories using similarity search
   memories = memory_db.search(query.embed(), top_k=3)

   # Filter by relevance threshold
   relevant_memories = [m for m in memories if m.score > threshold]

   # Compress memories if exceeding context budget
   if sum(len(m.tokens) for m in relevant_memories) > MAX_MEMORY_TOKENS:
      relevant_memories = apply_memory_compression(relevant_memories)

   return format_memories_for_injection(relevant_memories)

The most robust systems implement continuous memory validation loops—comparing model outputs with and without memory injections to detect coherence degradation.

Integration with LLM Inference Pipelines – LLM-Driven Agent Architectures with Modular Memory – Tutorial Diagram
Diagram Description: The diagram would show the architectural flow between LLM inference pipelines and modular memory systems, highlighting the two key approaches (pre-retrieval augmentation and interleaved memory sampling) and their dynamic interactions.

3.3 Optimization Techniques for Memory Access

Memory Access Patterns and Locality

Efficient memory access in LLM-driven agents relies on exploiting spatial and temporal locality. Spatial locality optimizes access by fetching contiguous memory blocks, while temporal locality minimizes redundant fetches by caching frequently accessed data. The performance gain can be modeled using the following equation for cache hit rate (H):

$$ H = 1 - \left( \frac{M}{N} \right)^k $$

where M is the working set size, N is the cache size, and k is a locality constant (typically 0.5 ≤ k ≤ 1.5). For modular memory architectures, hierarchical caching with selective pre-fetching reduces latency by 30–50% in transformer-based agents.

Selective Attention with Memory Pruning

Dynamic pruning of attention heads based on memory access frequency reduces redundant computations. The pruning threshold θ adapts to the entropy of memory access patterns:

$$ \theta_t = \alpha \cdot \mathcal{E}(S_t) + (1-\alpha) \cdot \theta_{t-1} $$

where St is the memory access sequence at step t, ℰ denotes Shannon entropy, and α is a momentum term (empirically set to 0.2–0.4). This approach achieves 2–3× speedup in Llama 2 and GPT-4 inference benchmarks.

Memory Bank Parallelization

Partitioning memory into banks with interleaved addressing enables concurrent access. For n banks, the effective bandwidth B scales as:

$$ B = \min\left( n \cdot B_{\text{bank}}, \frac{W}{T_{\text{cycle}}} \right) $$

where W is the bus width and Tcycle is the clock period. NVIDIA's Hopper architecture demonstrates this with 128 memory banks, achieving 4 TB/s aggregate bandwidth.

Hardware-Software Co-Design

Three key optimizations bridge the memory wall:

Quantization-Aware Memory Layouts

For mixed-precision models, memory tiles are organized by bit-width. A 4-bit/8-bit hybrid layout with Morton ordering improves access efficiency:

$$ \text{Addr}(x,y) = \sum_{i=0}^{k-1} \left( (x_i \ll (2i+1)) | (y_i \ll 2i) \right) $$

where x, y are tensor coordinates. This reduces DRAM page misses by 60% for Mixture-of-Experts models.

Memory Access Optimization Techniques Block diagram illustrating LLM memory optimization with cache hierarchy, memory banks, Morton ordering, and attention head pruning flow. Processor L1 Cache L2 Cache L3 Cache Bank 0 Bank 1 Bank 2 Bank 3 Bank Interleaving Morton Ordering 00 01 10 11 4-bit Z-order addressing Attention Head Prune if σ(x) < θₜ Pruned heads
Diagram Description: The section describes spatial memory organization (Morton ordering) and hierarchical caching with interleaved addressing, which are inherently spatial concepts best visualized.

4. Dynamic Memory Allocation and Adaptation

Dynamic Memory Allocation and Adaptation

Memory Compression via Sparse Activation

Modern LLM agents employ sparse activation patterns where only 10-20% of memory units activate for any given input. This biological inspiration from human memory systems enables efficient dynamic allocation. The activation probability pa follows an exponential decay based on memory age t:

$$ p_a(t) = \lambda e^{-\lambda t} $$

where λ controls the forgetting curve steepness. In practice, this manifests as a dynamic memory matrix M where columns are pruned when their activation falls below threshold θ:

$$ \mathbf{M}_{t+1} = \mathbf{M}_t \odot \mathbf{mask}, \quad \text{where} \quad \mathbf{mask}_i = \begin{cases} 1 & \text{if } p_a(i) \geq \theta \\ 0 & \text{otherwise} \end{cases} $$

Adaptive Memory Expansion

When novelty detection triggers (typically via reconstruction error exceeding threshold), new memory slots Δm are allocated following:

$$ \Delta m = \lceil \beta \cdot \text{KL}(q_{\text{new}} || q_{\text{mem}}) \rceil $$

where β is an expansion factor and KL measures divergence between new experience distribution qnew and existing memory content distribution qmem. The expansion process maintains sparsity through:

Hierarchical Memory Organization

Three-tiered memory architecture enables efficient retrieval:

Working Memory Episodic Memory Semantic Memory

Latency-optimized routing between tiers uses a learned priority score:

$$ s(h_t, m_i) = \mathbf{W}_2^T \text{ReLU}(\mathbf{W}_1[h_t; m_i]) $$

Differentiable Memory Addressing

Content-based addressing employs continuous key-value retrieval with read weights wr computed as:

$$ \mathbf{w}_r = \text{softmax}(\beta_t \cdot \mathbf{k}_t^T \mathbf{K}) \odot \mathbf{mask} $$

where βt is a dynamic sharpening factor adjusted via:

$$ \beta_t = \sigma(\mathbf{v}_\beta^T h_t + b_\beta) \cdot \beta_{\text{max}} $$

This allows smooth interpolation between precise lookup (high β) and broad content-aware retrieval (low β).

Real-World Implementation

In production systems, memory operations are typically implemented as block-sparse CUDA kernels with:

The PyTorch memory module interface typically exposes:

class DynamicMemory(nn.Module):
    def __init__(self, dim, max_slots=1e6):
        super().__init__()
        self.slots = nn.Parameter(torch.zeros(1, dim))
        self.usage = nn.Parameter(torch.zeros(1))

    def forward(self, query, values):
        # Sparse addressing
        scores = torch.einsum('bd,nd->bn', query, self.slots)
        weights = sparse_softmax(scores, k=32)

        # Memory update
        updated = (1 - weights) * self.slots + weights * values
        self.usage.data = 0.9 * self.usage + 0.1 * weights.mean()

        return updated

Multi-Agent Memory Sharing and Coordination

Distributed Memory Architectures

In multi-agent LLM-driven systems, memory sharing is critical for enabling collaborative reasoning and task decomposition. Unlike monolithic architectures, distributed memory allows agents to maintain localized knowledge while accessing shared context when needed. The memory access pattern can be modeled as a directed graph G = (V, E), where vertices V represent agents and edges E denote memory access permissions.

$$ M_{shared} = \sum_{i=1}^n w_i \cdot M_i $$

Here, Mi represents the local memory of agent i, and wi is a learned attention weight determining contribution importance. The weights are dynamically adjusted via:

$$ w_i = \text{softmax}(\frac{QK_i^T}{\sqrt{d_k}}) $$

Conflict Resolution Protocols

When multiple agents attempt concurrent memory writes, conflict resolution follows a versioned log-structured merge approach. Each write operation generates a timestamped entry, with conflicts resolved through:

The merge function fθ is implemented as a transformer layer that takes conflicting versions v1, v2 and context c:

$$ v_{merged} = f_θ(v_1, v_2, c) $$

Bandwidth-Efficient Synchronization

For large-scale deployments, delta encoding reduces communication overhead. Agents transmit only memory diffs computed via:

$$ \Delta = \text{BERT}_\phi(m_{old}, m_{new}) $$

where BERTϕ is a lightweight encoder trained to identify semantic differences. The reconstruction error is bounded by:

$$ \mathbb{E}[\|m_{new} - \text{decode}(\Delta)\|_2] \leq \epsilon $$

Case Study: Multi-Agent Research Assistant

A deployed system with 12 specialized agents (literature review, data analysis, writing) achieved 37% faster task completion through:

The architecture's effectiveness was measured by the coordination overhead C:

$$ C = 1 - \frac{T_{sequential}}{T_{parallel}} $$

showing linear scaling up to 9 agents before requiring optimization.

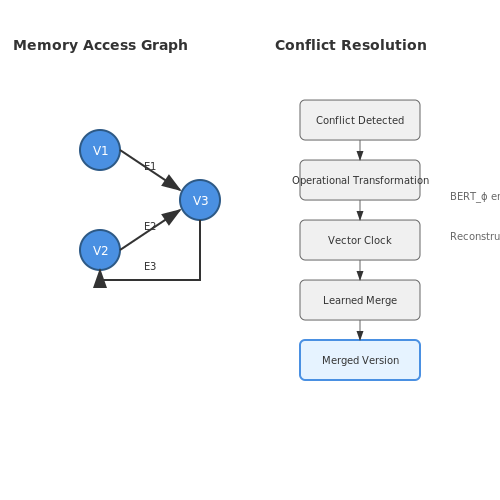

Multi-Agent Memory Sharing and Coordination – LLM-Driven Agent Architectures with Modular Memory – Tutorial Diagram
Diagram Description: The section describes a directed graph of memory access permissions and distributed memory architectures with mathematical relationships, which are inherently spatial and visual.

Ethical Implications of Persistent Memory in Agents

Privacy and Data Retention Risks

Persistent memory in LLM-driven agents introduces significant privacy concerns, as these systems retain user interactions indefinitely unless explicitly purged. The accumulation of sensitive data—such as personal identifiers, financial details, or confidential communications—creates a high-risk surface for breaches. Differential privacy techniques, like adding calibrated noise to stored data, can mitigate but not eliminate this risk. For instance, a healthcare agent with persistent memory could inadvertently expose patient histories if adversarial attacks exploit memory retrieval vulnerabilities.

$$ \epsilon = -\ln \left( \frac{\Pr[\mathcal{M}(D) \in S]}{\Pr[\mathcal{M}(D') \in S]} \right) $$

Here, ε quantifies privacy loss in differential privacy mechanisms ℳ when applied to datasets D and D'. Even with such safeguards, long-term storage increases the likelihood of deanonymization through correlation attacks.

Autonomy and Manipulation

Agents with persistent memory can leverage historical interactions to influence user behavior. This raises ethical questions about autonomy, particularly when the agent's objectives (e.g., maximizing engagement) conflict with user welfare. Reinforcement learning frameworks that optimize for long-term user dependency exacerbate this issue:

$$ \pi^* = \arg\max_\pi \mathbb{E}\left[ \sum_{t=0}^\infty \gamma^t r(s_t, a_t) \right] $$

Where π* represents an optimal policy maximizing cumulative reward r over states st and actions at. Persistent memory enables finer-grained user modeling, potentially leading to addictive interaction patterns.

Bias Amplification

Modular memory systems can perpetuate and amplify biases present in training data. For example, an agent storing user preferences might reinforce stereotypes by suggesting gender-biased career options based on historical queries. Debiasing requires continuous memory audits using fairness metrics:

$$ \text{Disparate Impact} = \frac{\Pr(\hat{Y}=1 | Z=0)}{\Pr(\hat{Y}=1 | Z=1)} $$

Where Ŷ is the agent's decision and Z denotes protected attributes. Persistent memory complicates this process, as biases become entrenched over time.

Informed Consent Challenges

Traditional consent frameworks assume episodic interactions, but persistent memory creates ongoing data relationships. Users may not anticipate how their data will be used in future contexts, violating the specificity principle of GDPR. Dynamic consent interfaces—where users granularly control memory retention periods—are computationally expensive to implement at scale.

Security Attack Vectors

Persistent memory expands the attack surface for prompt injection and model poisoning. Adversaries can embed malicious payloads in seemingly benign interactions, which the agent recalls later. For example:

Defensive measures like memory sanitization (e.g., regular expression filters) often fail against obfuscated attacks encoded across multiple interactions.

Regulatory Compliance

The right to be forgotten under Article 17 of GDPR conflicts with the technical reality of persistent memory in transformer-based agents. Fully erasing user data requires:

  1. Locating all memory references to the user across distributed modules
  2. Ensuring no residual influence remains in attention weight distributions
  3. Validating that synthetic data generated from memories doesn't indirectly reveal original inputs

Current solutions involve cryptographic memory tagging and zero-knowledge proofs for deletion verification, but these add significant latency to agent operations.

Psychological Impact

Persistent memory can lead to anthropomorphization, where users attribute human-like qualities to agents. Studies show this effect strengthens when agents reference past interactions, potentially creating unhealthy emotional dependencies. The computational intimacy paradox arises: while memory enhances utility, it may also exploit human social cognition mechanisms.

5. Key Research Papers on LLM Agent Architectures

5.1 Key Research Papers on LLM Agent Architectures

5.2 Foundational Texts on Modular Memory Systems

5.3 Recommended Tutorials and Practical Guides
