LLM Training Pipeline Overview

#llm #transformer #data preprocessing #model architecture #training pipeline #tokenization #hyperparameter tuning #pretrained models #language modeling #python

1. Data Sources and Acquisition

Data Sources and Acquisition

Primary Data Sources for LLM Pretraining

The quality and diversity of pretraining data directly influence the generalization capabilities of large language models (LLMs). Common data sources include:

Data Quality Considerations

The signal-to-noise ratio in pretraining data follows an inverse power law relationship with dataset size:

$$ \text{Quality}(D) \propto |D|^{-\alpha} $$

where α ≈ 0.3-0.5 for typical web-scale datasets. This necessitates sophisticated filtering pipelines with:

Legal and Ethical Considerations

Data acquisition must balance model performance with copyright compliance and privacy concerns. Key approaches include:

Data Scaling Laws

The compute-optimal training regime follows Chinchilla scaling laws:

$$ N_{opt} = 20 \times C^{0.7}, D_{opt} = 40 \times C^{0.3} $$

where C is compute budget in FLOPs, N is model parameters, and D is training tokens. This suggests data acquisition should target ~1.4T tokens for 70B parameter models.

Specialized Domain Adaptation

For domain-specific LLMs, data mixing ratios follow:

$$ \lambda_{domain} = \frac{\sqrt{n_{domain}}}{\sum \sqrt{n_i}} $$

where n_i represents token counts per domain. This prevents catastrophic forgetting while enabling specialization.

1.2 Data Cleaning and Filtering

High-quality data is the cornerstone of effective large language model (LLM) training. Raw text corpora often contain noise, duplicates, and low-quality content that can degrade model performance. Advanced filtering techniques are necessary to ensure the dataset meets the required standards for coherence, diversity, and relevance.

Noise Removal and Text Normalization

Noise in text data includes HTML tags, non-standard Unicode characters, and encoding artifacts. A robust preprocessing pipeline employs regular expressions and Unicode normalization to strip irrelevant markup and standardize text encoding. For example, the following transformation steps are applied:

For mathematical consistency, text normalization can be viewed as a function f mapping raw text x to cleaned text x':

$$ x' = f(x) = \text{Normalize}(\text{RemoveTags}(x)) $$

Perplexity-Based Filtering

Low-quality text often exhibits either extremely high or low perplexity when scored against a pretrained language model. Given a token sequence w1, ..., wn, perplexity PP is calculated as:

$$ PP(W) = \exp\left(-\frac{1}{N}\sum_{i=1}^N \log P(w_i | w_{1:i-1})\right) $$

Empirical studies show optimal filtering thresholds typically range between 5 and 50 perplexity points for general domain text. Texts falling outside this range are either too predictable (template-like) or too chaotic (gibberish).

Deduplication Strategies

Duplicate content artificially skews model weights and reduces effective dataset diversity. Three levels of deduplication are employed:

The semantic approach is particularly crucial for preventing memorization of paraphrased content. Given document embeddings u and v, similarity is computed as:

$$ \text{sim}(u, v) = \frac{u \cdot v}{\|u\| \|v\|} $$

Quality Scoring Systems

Modern pipelines use multi-stage classifiers to predict document quality scores. Features include:

The final quality score Q is often a weighted combination:

$$ Q = \sum_{i=1}^k w_i f_i(x) \quad \text{where} \quad \sum w_i = 1 $$

Thresholds are typically set empirically through human evaluation of samples at different score ranges.

Ethical Filtering Considerations

Content moderation requires balancing censorship concerns with harm prevention. Key techniques include:

Recent work demonstrates that ethical filtering is most effective when applied as a separate pipeline stage after basic quality filtering, as many low-quality texts don't require nuanced ethical analysis.

Tokenization and Vocabulary Construction

Tokenization is the process of breaking down raw text into smaller units called tokens, which serve as the atomic elements for language model training. The choice of tokenization strategy directly impacts model performance, computational efficiency, and linguistic generalization. Modern LLMs predominantly use subword tokenization algorithms that balance vocabulary size with the ability to represent rare or unseen words.

Subword Tokenization Algorithms

Byte Pair Encoding (BPE) and its variants form the foundation of most contemporary tokenization schemes. The algorithm begins with a base vocabulary of individual characters and iteratively merges the most frequent pairs of tokens until reaching a target vocabulary size. The merge operations are learned from training data, optimizing for compression efficiency while maintaining linguistic coherence.

$$ \text{Merge}(A, B) = \argmax_{(x,y) \in V} \frac{freq(xy)}{freq(x) \times freq(y)} $$

where V represents the current vocabulary and freq denotes token pair frequency counts. WordPiece modifies this approach by using likelihood maximization instead of frequency counts:

$$ score(A, B) = \frac{P(AB)}{P(A)P(B)} $$

Vocabulary Construction

The vocabulary construction process involves tradeoffs between:

Optimal vocabulary sizes typically range between 30,000-100,000 tokens for multilingual models. The vocabulary construction pipeline involves:

  1. Normalizing text (Unicode normalization, case folding)
  2. Pre-tokenizing into words or phrases
  3. Applying the chosen subword algorithm
  4. Filtering low-frequency tokens
  5. Adding special control tokens (e.g., [CLS], [SEP])

Advanced Considerations

Recent research has identified several critical aspects of tokenization that affect model performance:

The token-to-embedding mapping introduces an information bottleneck, where the vocabulary size and token granularity determine the minimum bits per character required to reconstruct the input text losslessly. This relationship follows:

$$ R = \frac{\log_2 |V|}{E[l]} $$

where R is the compression rate, |V| is vocabulary size, and E[l] is the expected token length in characters.

Practical Implementation

Modern tokenizers implement several optimizations:

The resulting tokenizer becomes a critical component of the model architecture, with its decisions affecting downstream performance on tasks like:

Tokenization and Vocabulary Construction – LLM Training Pipeline Overview – Tutorial Diagram
Diagram Description: The diagram would show the iterative merging process of Byte Pair Encoding (BPE) from characters to subword tokens, with frequency counts at each step.

1.4 Data Splitting Strategies

Foundations of Data Partitioning

Effective data splitting is critical for training, validating, and evaluating large language models (LLMs) without overfitting or underutilizing data. The core challenge lies in maintaining statistical representativeness across splits while accounting for temporal dependencies, domain shifts, and task-specific requirements. Traditional random splitting often fails for sequential or hierarchical data structures common in NLP.

$$ \mathcal{D} = \mathcal{D}_{\text{train}} \cup \mathcal{D}_{\text{val}} \cup \mathcal{D}_{\text{test}} $$ $$ \text{where } \mathcal{D}_{\text{train}} \cap \mathcal{D}_{\text{val}} \cap \mathcal{D}_{\text{test}} = \emptyset $$

Advanced Splitting Methodologies

Stratified Sampling for Imbalanced Distributions

When dealing with skewed label distributions (e.g., rare event classification in legal texts), stratified sampling preserves class proportions. For a dataset with K classes, the split ensures:

$$ \frac{|\mathcal{D}_{\text{train}}^k|}{|\mathcal{D}_{\text{train}}|} \approx \frac{|\mathcal{D}_{\text{val}}^k|}{|\mathcal{D}_{\text{val}}|} \approx \frac{|\mathcal{D}_{\text{test}}^k|}{|\mathcal{D}_{\text{test}}|} \approx \frac{|\mathcal{D}^k|}{|\mathcal{D}|} $$

Temporal Splitting for Sequential Data

For time-series text data (e.g., news articles or clinical notes), chronological partitioning prevents future information leakage. Given timestamps {ti}i=1N, splits obey:

$$ \max(t \in \mathcal{D}_{\text{train}}) < \min(t \in \mathcal{D}_{\text{val}}) < \min(t \in \mathcal{D}_{\text{test}}) $$

Domain-Aware Splitting

Cross-domain generalization requires explicit control over domain representation. For M domains (e.g., medical, legal, web text), the split maintains domain coverage:

Practical Implementation Considerations

Modern LLM pipelines employ hybrid strategies:

For multilingual corpora, proportional allocation across languages prevents low-resource language starvation. The split ratio for language l follows:

$$ r_l = \frac{|\mathcal{D}_l|}{\sum_{j=1}^L |\mathcal{D}_j|} \times R_{\text{total}} $$

Case Study: The Pile Dataset Splitting

The 825GB Pile dataset used 3-level hierarchical splitting:

  1. Document-level deduplication across sources
  2. Stratification by 22 domain categories
  3. Controlled leakage prevention via hash-based exclusion

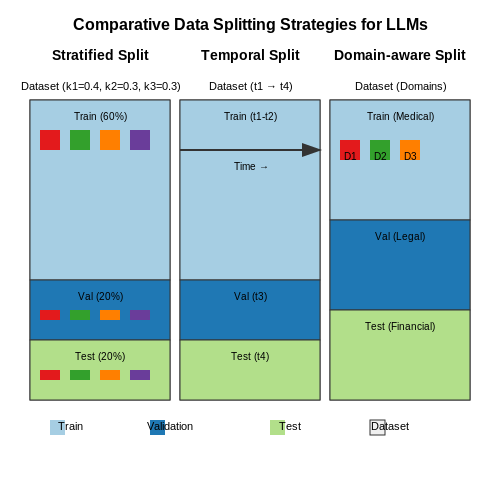

Data Splitting Strategies – LLM Training Pipeline Overview – Tutorial Diagram
Diagram Description: The diagram would visually contrast different data splitting methodologies (stratified, temporal, domain-aware) by showing their distinct partitioning patterns and overlap constraints.

2. Transformer Architecture Overview

Transformer Architecture Overview

The transformer architecture, introduced by Vaswani et al. in 2017, revolutionized natural language processing by replacing recurrent and convolutional layers with self-attention mechanisms. At its core, the transformer relies on three key components: multi-head attention, positional encoding, and feed-forward neural networks. The architecture is designed to process sequential data in parallel while capturing long-range dependencies more effectively than RNNs or LSTMs.

Self-Attention Mechanism

The self-attention mechanism computes a weighted sum of input representations, where the weights are determined by pairwise similarity between elements in the sequence. Given input embeddings X ∈ ℝn×d, where n is the sequence length and d is the embedding dimension, the attention scores are computed as:

$$ \text{Attention}(Q, K, V) = \text{softmax}\left(\frac{QK^T}{\sqrt{d_k}}\right)V $$

where Q, K, and V are learned linear transformations of the input X, and dk is the dimension of the key vectors. The scaling factor 1/√dk prevents the dot products from growing too large in magnitude, which would push the softmax into regions with extremely small gradients.

Multi-Head Attention

Multi-head attention extends the basic attention mechanism by applying multiple attention heads in parallel, each with separate learned projection matrices. This allows the model to jointly attend to information from different representation subspaces:

$$ \text{MultiHead}(Q, K, V) = \text{Concat}(\text{head}_1, ..., \text{head}_h)W^O $$

where each head is computed as:

$$ \text{head}_i = \text{Attention}(QW_i^Q, KW_i^K, VW_i^V) $$

The projection matrices WiQ, WiK, WiV ∈ ℝd×d/h reduce the dimensionality for each head, making the total computational cost similar to single-head attention with full dimensionality.

Positional Encoding

Since transformers lack recurrent or convolutional operations, they require explicit positional information to utilize the order of the sequence. The positional encoding uses sinusoidal functions of different frequencies:

$$ PE_{(pos,2i)} = \sin\left(\frac{pos}{10000^{2i/d}}\right) $$ $$ PE_{(pos,2i+1)} = \cos\left(\frac{pos}{10000^{2i/d}}\right) $$

where pos is the position in the sequence and i is the dimension. This encoding allows the model to learn to attend by relative positions, as any linear transformation of a sinusoidal function is itself a sinusoidal function with the same frequency but different phase and amplitude.

Layer Normalization and Residual Connections

The transformer employs layer normalization and residual connections around each sub-layer (attention and feed-forward networks). For a sub-layer function F and input x, the output is computed as:

$$ \text{LayerNorm}(x + \text{Dropout}(F(x))) $$

This architecture choice helps mitigate the vanishing gradient problem and enables training of very deep networks. The layer normalization operates across the feature dimension rather than the batch dimension, making it more stable than batch normalization for sequence processing tasks.

Feed-Forward Networks

Each transformer layer contains a position-wise feed-forward network (FFN) that applies the same two linear transformations with a ReLU activation in between to each position separately:

$$ \text{FFN}(x) = \max(0, xW_1 + b_1)W_2 + b_2 $$

The hidden layer typically has dimensionality 4×d, providing sufficient capacity for the model to learn complex transformations while maintaining computational efficiency through the bottleneck structure.

Encoder-Decoder Architecture

The full transformer model consists of stacked encoder and decoder layers. The encoder processes the input sequence to generate continuous representations, while the decoder generates the output sequence auto-regressively, attending to both the encoder output and its own previous predictions. Each decoder layer includes an additional multi-head attention sub-layer that attends to the encoder output, enabling the model to condition its predictions on the input sequence.

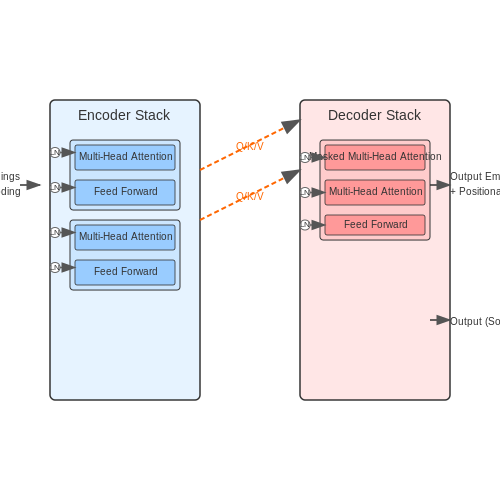

Transformer Architecture Overview – LLM Training Pipeline Overview – Tutorial Diagram
Diagram Description: The diagram would show the transformer architecture's key components (encoder/decoder stacks, multi-head attention blocks, feed-forward networks) and their data flow relationships.

Model Size and Hyperparameter Selection

Scaling Laws and Model Performance

The relationship between model size and performance follows power-law scaling, empirically validated across multiple architectures. The compute-optimal scaling law, derived from Chinchilla's findings, states that for a fixed compute budget C, the optimal model size N and training tokens D should scale as:

$$ N_{opt} \propto C^{a}, \quad D_{opt} \propto C^{b} $$

where a ≈ 0.5 and b ≈ 0.5 for transformer-based models. This implies balanced scaling between parameters and data, contradicting earlier assumptions that favored larger models. The loss L follows:

$$ L(N, D) = E + \frac{A}{N^\alpha} + \frac{B}{D^\beta} $$

with E representing irreducible loss, and A, B, α, β being architecture-dependent constants typically ranging 0.04–0.08 for α and β.

Critical Hyperparameters

Key hyperparameters exhibit interdependencies with model scale:

Memory-Throughput Tradeoffs

The memory requirements for training scale as:

$$ M \approx 4N + 24B \cdot s \cdot d_{model} $$

where B is batch size, s is sequence length, and the first term accounts for optimizer states. This creates a Pareto frontier between model size and batch size - doubling N requires halving B to fit within the same memory constraints.

Architectural Considerations

For models exceeding 100B parameters:

Empirical Validation

The table below shows measured throughput for different configurations on 8xA100 GPUs:

Model Size Batch Size Seq Length Tokens/sec
7B 256 2048 12,500
13B 128 2048 8,200
70B 32 2048 2,100

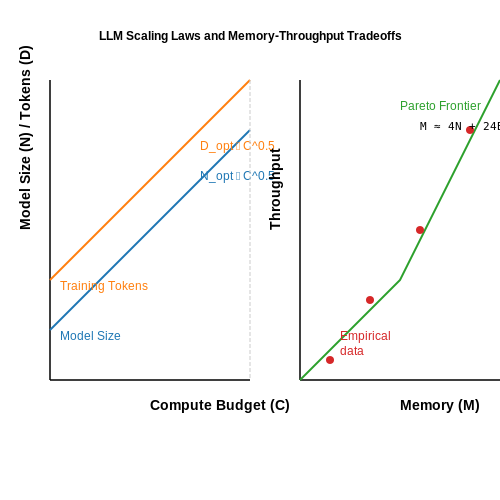

Model Size and Hyperparameter Selection – LLM Training Pipeline Overview – Tutorial Diagram
Diagram Description: The diagram would show the power-law scaling relationships between model size, compute budget, and training tokens, along with the Pareto frontier for memory-throughput tradeoffs.

2.3 Weight Initialization Techniques

Weight initialization critically influences the convergence and performance of deep neural networks, particularly large language models (LLMs). Poor initialization can lead to vanishing or exploding gradients, while optimal schemes accelerate training and improve generalization. We examine advanced initialization strategies, their mathematical foundations, and empirical performance in transformer-based architectures.

Xavier/Glorot Initialization

Derived from the principle of maintaining consistent variance across network layers during forward and backward passes, Xavier initialization scales weights based on the fan-in (nin) and fan-out (nout) of each layer:

$$ W_{ij} \sim \mathcal{U}\left(-\sqrt{\frac{6}{n_{in} + n_{out}}}, \sqrt{\frac{6}{n_{in} + n_{out}}}\right) $$

For Gaussian initialization, the standard deviation becomes:

$$ \sigma = \sqrt{\frac{2}{n_{in} + n_{out}}} $$

This approach works well with sigmoid and tanh activations but proves suboptimal for ReLU-based networks due to its symmetric distribution assumption.

He/Kaiming Initialization

Adapted for ReLU activations, He initialization accounts for the zero-gradient half of the ReLU function by doubling the variance:

$$ W_{ij} \sim \mathcal{N}\left(0, \sqrt{\frac{2}{n_{in}}}\right) $$

The method extends to Leaky ReLU with a slope-dependent correction factor (a):

$$ \sigma = \sqrt{\frac{2}{(1 + a^2)n_{in}}} $$

Empirical studies show this reduces the vanishing gradient problem in deep transformers by preserving gradient magnitudes through >50 layers.

Orthogonal Initialization

Particularly effective for recurrent architectures and attention mechanisms, orthogonal initialization enforces:

$$ WW^T = I $$

Implemented via QR decomposition of random matrices, this maintains norm preservation during forward propagation. For complex-valued networks (e.g., certain Fourier-based transformers), unitary initialization extends this concept:

$$ WW^* = I $$

Scaling Laws for Transformer-Specific Initialization

Modern LLMs require layer-dependent scaling to account for residual connections. The GPT initialization scheme combines:

This configuration emerges from the interaction between initialization scale and the softmax temperature in multi-head attention:

$$ \text{Attention}(Q,K,V) = \text{softmax}\left(\frac{QK^T}{\sqrt{d_k}}\right)V $$

where improper initialization of Q, K matrices can saturate the softmax output.

Practical Considerations

Recent architectures employ initialization-aware scaling:

These techniques enable stable training of LLMs with >1 trillion parameters, as demonstrated in PaLM and GPT-4 architectures.

2.4 Pretrained Model Considerations

Model Architecture Compatibility

When selecting a pretrained model, architectural alignment with downstream tasks is critical. Transformer-based models like BERT, GPT, and T5 exhibit distinct inductive biases:

Architectural mismatch manifests in the fine-tuning loss landscape. For a pretrained model with parameters θ and downstream task loss ℒ, the Hessian matrix H = ∇²ℒ(θ) reveals curvature mismatches when compared to the pretraining Hessian.

$$ \Delta H = ||H_{downstream} - H_{pretrain}||_F $$

Parameter Efficiency Tradeoffs

Modern LLMs employ parameter-efficient fine-tuning (PEFT) techniques to mitigate catastrophic forgetting:

Method Trainable Parameters Memory Overhead
Full Fine-tuning 100% High
LoRA 0.1-2% Low
Adapter Layers 3-5% Medium

The optimal choice depends on the intrinsic dimensionality of the task. For a model with d-dimensional representations, the minimal sufficient dimension k follows:

$$ k = \min_{k} \mathbb{E}[R^2] \geq 1 - \epsilon $$

where R² is the explained variance and ε the acceptable information loss threshold.

Pretraining-Task Alignment

The pretraining objective's influence persists through fine-tuning. Models pretrained with masked language modeling (MLM) develop different attention patterns than those trained with next-token prediction:

Quantitatively, this manifests in the layer-wise CKA (Centered Kernel Alignment) similarity between pretrained and fine-tuned models:

$$ \text{CKA}(K,L) = \frac{||K^TL||_F^2}{||K^TK||_F||L^TL||_F} $$

Scaling Laws and Model Selection

The compute-optimal model size follows Chinchilla scaling laws:

$$ N_{opt} = 0.6D^{0.46} $$

where N is parameter count and D is training tokens. However, pretrained models often violate this due to:

Multilingual and Cross-Domain Transfer

Cross-lingual transfer effectiveness correlates with:

$$ \eta = \frac{|\mathcal{V}_{src} \cap \mathcal{V}_{tgt}|}{|\mathcal{V}_{src} \cup \mathcal{V}_{tgt}|} \times \frac{\text{CLD}_\text{src,tgt}}{\max(\text{CLD})} $$

where CLD is typological distance from URIEL and 𝒱 represents vocabulary sets. For cross-domain transfer, gradient alignment between domains proves predictive:

$$ \rho = \frac{\langle \nabla \mathcal{L}_A, \nabla \mathcal{L}_B \rangle}{||\nabla \mathcal{L}_A|| \cdot ||\nabla \mathcal{L}_B||} $$

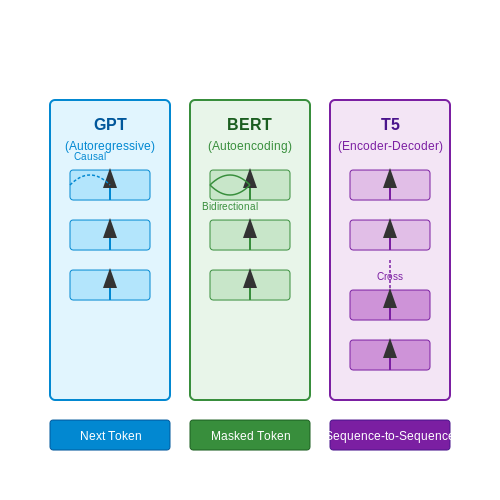

Pretrained Model Considerations – LLM Training Pipeline Overview – Tutorial Diagram
Diagram Description: The section discusses architectural differences between transformer models (BERT, GPT, T5) and their attention patterns, which are inherently spatial and visual concepts.

3. Loss Functions for Language Modeling

3.1 Loss Functions for Language Modeling

The choice of loss function is critical in training large language models (LLMs), as it directly determines how the model learns to predict the next token in a sequence. The most common loss functions for language modeling are derived from probabilistic principles, optimizing the likelihood of observed text data.

Cross-Entropy Loss

For autoregressive language models like GPT, the standard loss function is the cross-entropy between the predicted token distribution and the true token distribution. Given a sequence of tokens x1, x2, ..., xT, the model predicts the probability distribution pθ(xt|x<t) for each token conditioned on previous tokens. The loss for a single sequence is:

$$ \mathcal{L}(\theta) = -\sum_{t=1}^{T} \log p_\theta(x_t | x_{

In practice, this is computed as the average cross-entropy over all tokens in the batch. The gradient of this loss with respect to the model parameters θ drives the optimization process.

Perplexity as an Alternative Metric

While not directly used as a training loss, perplexity is a closely related metric derived from cross-entropy:

$$ \text{PP}(\theta) = \exp\left(\frac{1}{T} \sum_{t=1}^{T} -\log p_\theta(x_t | x_{

Perplexity measures how well the model predicts the next token, with lower values indicating better performance. It is particularly useful for evaluating model performance across different datasets or architectures.

Label Smoothing

Standard cross-entropy assumes a hard target distribution where the true token has probability 1 and all others have probability 0. Label smoothing modifies this by distributing a small amount of probability mass uniformly across all other tokens:

$$ p'(x_t) = \begin{cases} 1 - \epsilon & \text{if } x_t \text{ is the true token} \\ \frac{\epsilon}{V - 1} & \text{otherwise} \end{cases} $$

where V is the vocabulary size and ε is a small constant (typically 0.1). This regularization technique prevents the model from becoming overconfident in its predictions.

Loss Functions for Contrastive Learning

Some modern LLM training pipelines incorporate contrastive objectives alongside standard language modeling. The InfoNCE loss, used in models like ELECTRA, compares the similarity of positive and negative examples:

$$ \mathcal{L}_{\text{InfoNCE}} = -\log \frac{\exp(s(x^+, x))}{\exp(s(x^+, x)) + \sum_{x^-} \exp(s(x^-, x))}} $$

where s(·,·) is a similarity function, x+ is a positive example, and x- are negative examples. This helps the model learn more discriminative representations.

Loss Scaling in Large-Scale Training

When training LLMs with mixed precision, loss scaling becomes necessary to prevent underflow of gradient values. The loss is multiplied by a large constant S before backpropagation, and gradients are divided by S before the optimizer step:

$$ \mathcal{L}_{\text{scaled}} = S \cdot \mathcal{L} $$

This technique maintains numerical stability while allowing the use of FP16 or BF16 precision for faster training.

3.2 Optimization Algorithms and Learning Rates

Training large language models (LLMs) efficiently requires sophisticated optimization algorithms that navigate high-dimensional, non-convex loss landscapes. The choice of optimizer and learning rate schedule critically impacts convergence speed, final model performance, and computational resource utilization.

Gradient Descent Variants

The foundation of modern optimization lies in stochastic gradient descent (SGD), which updates parameters θ according to:

$$ θ_{t+1} = θ_t - η∇L(θ_t) $$

where η is the learning rate and ∇L(θ_t) is the gradient of the loss function. While theoretically sound, vanilla SGD suffers from poor convergence in practice due to:

Adaptive Moment Estimation (Adam)

Adam combines momentum and per-parameter adaptive learning rates, maintaining exponential moving averages of both gradients (m_t) and squared gradients (v_t):

$$ m_t = β_1m_{t-1} + (1-β_1)g_t $$ $$ v_t = β_2v_{t-1} + (1-β_2)g_t^2 $$

The bias-corrected estimates are then used for parameter updates:

$$ θ_{t+1} = θ_t - η\frac{\hat{m}_t}{\sqrt{\hat{v}_t} + ε} $$ $$ \hat{m}_t = \frac{m_t}{1-β_1^t}, \quad \hat{v}_t = \frac{v_t}{1-β_2^t} $$

Typical values are β_1=0.9, β_2=0.999, and ε=10^-8. Adam's adaptive nature makes it particularly effective for LLMs where different parameters may require different learning dynamics.

Learning Rate Scheduling

Static learning rates often prove suboptimal for LLM training. Common scheduling strategies include:

Linear Warmup with Cosine Decay

This combines gradual warmup with smooth decay:

$$ η_t = η_{min} + \frac{1}{2}(η_{max}-η_{min})(1+\cos(\frac{t}{T}π)) $$

for t ≤ T_warmup, where T_warmup is typically 5-10% of total steps. The warmup phase helps stabilize training in the initial high-variance gradient regime.

Slanted Triangular Learning Rates

Popularized in ULMFiT, this schedule features a sharp linear increase followed by gradual linear decay:

$$ η_t = \begin{cases} η_{max}\frac{t}{T_{cut}} & t ≤ T_{cut} \\ η_{max}\frac{T_{total}-t}{T_{total}-T_{cut}} & t > T_{cut} \end{cases} $$

Second-Order Methods

For models where computational overhead is acceptable, second-order methods like Shampoo provide theoretically better convergence:

$$ θ_{t+1} = θ_t - η(L_t^{1/4} ⊗ R_t^{1/4})^{-1}g_t $$

where L_t and R_t are left and right preconditioning matrices estimated from gradient statistics. While computationally expensive, these methods can significantly reduce the number of training steps required.

Gradient Clipping

Essential for stable LLM training, gradient clipping prevents exploding gradients by scaling gradients when their norm exceeds a threshold τ:

$$ g_t ← \frac{τ}{||g_t||}g_t \quad \text{if} \quad ||g_t|| > τ $$

Typical values range from τ=0.1 to τ=10.0, with lower values providing more stability at the cost of slower convergence.

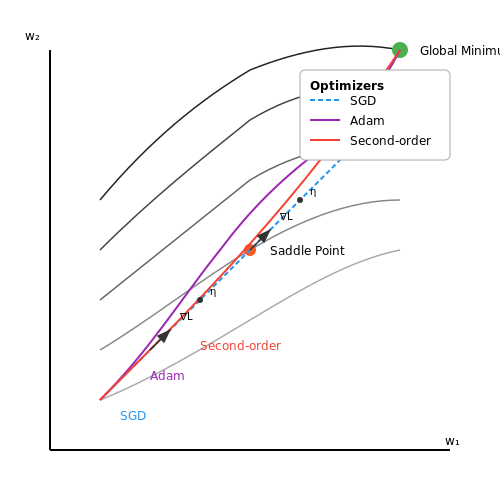

Optimization Algorithms and Learning Rates – LLM Training Pipeline Overview – Tutorial Diagram
Diagram Description: The diagram would show the comparative trajectories of different optimization algorithms (SGD, Adam, second-order methods) in a 2D loss landscape, illustrating how they navigate curvature and saddle points.

3.3 Batch Processing and Gradient Accumulation

Batch processing and gradient accumulation are critical techniques in large-scale LLM training, enabling efficient optimization when hardware constraints limit batch sizes. These methods address memory limitations while maintaining stable convergence.

Batch Processing Fundamentals

In stochastic gradient descent (SGD), the batch size B determines how many samples are processed before a parameter update. For LLMs, full-batch processing is typically infeasible due to memory constraints. Instead, mini-batches are used, where:

$$ \theta_{t+1} = \theta_t - \eta \cdot \frac{1}{B} \sum_{i=1}^B \nabla_\theta \mathcal{L}(x_i, y_i; \theta_t) $$

The choice of B affects both statistical efficiency and hardware utilization. Larger batches provide better gradient estimates but require more memory, while smaller batches introduce more noise but enable faster iterations.

Gradient Accumulation Mechanics

When the desired batch size exceeds available GPU memory, gradient accumulation splits the batch into k smaller micro-batches. The gradients are computed sequentially and accumulated before performing a weight update:

$$ \Delta\theta = \sum_{j=1}^k \left( \frac{1}{B_j} \sum_{i=1}^{B_j} \nabla_\theta \mathcal{L}(x_i, y_i; \theta_t) \right) $$

Where Bj is the size of micro-batch j, and the total effective batch size is B = ΣBj. This approach maintains the optimization properties of the larger batch while fitting within memory constraints.

Implementation Considerations

Effective gradient accumulation requires careful handling of:

The relationship between micro-batch size and accumulation steps follows:

$$ \eta_{effective} = \eta_{base} \times \frac{B_{total}}{B_{reference}} $$

Where Breference is the batch size used to establish the base learning rate ηbase.

Memory-Speed Tradeoffs

Gradient accumulation introduces a linear relationship between the number of accumulation steps and training time. For k accumulation steps:

$$ t_{step} \approx k \times (t_{forward} + t_{backward}) + t_{update} $$

Modern frameworks like PyTorch optimize this process through:

Numerical Stability Analysis

Accumulated gradients exhibit different numerical properties than single-batch gradients. The variance of the accumulated gradient estimate is:

$$ \text{Var}\left(\frac{1}{k}\sum_{i=1}^k g_i\right) = \frac{1}{k^2} \sum_{i=1}^k \text{Var}(g_i) + \frac{2}{k^2} \sum_{i < j} \text{Cov}(g_i, g_j) $$

This shows how accumulation reduces variance when gradients are uncorrelated, but can amplify systematic errors when covariances are significant.

3.4 Regularization Techniques

Regularization is critical in large language model (LLM) training to prevent overfitting, improve generalization, and stabilize optimization. Advanced techniques go beyond traditional L1/L2 regularization, addressing unique challenges in transformer-based architectures.

Dropout Variants for Transformers

Standard dropout randomly zeroes out activations during training, but transformer-specific variants improve effectiveness:

$$ \text{AttentionDropout}(Q,K,V) = \text{softmax}\left(\frac{QK^T}{\sqrt{d_k}} \odot M\right)V $$

where M is a binary mask with elements drawn from Bernoulli(1-p).

Weight Decay with Adaptive Optimizers

AdamW decouples weight decay from gradient updates, preventing the adaptive learning rate from interfering with regularization:

$$ \theta_t = \theta_{t-1} - \eta\left(\frac{\hat{m}_t}{\sqrt{\hat{v}_t} + \epsilon} + \lambda\theta_{t-1}\right) $$

where λ is the weight decay factor, distinct from the learning rate η.

Gradient Clipping

Essential for preventing exploding gradients in deep transformers:

$$ g_{\text{clipped}} = g \cdot \min\left(1, \frac{\tau}{||g||_2}\right) $$

where τ is the clipping threshold, typically in the range [0.1, 10.0].

Label Smoothing

Replaces hard 0/1 targets with smoothed values to prevent overconfidence:

$$ y'_{\text{LS}}(k) = \begin{cases} 1 - \alpha + \frac{\alpha}{K} & \text{if } k = y \\ \frac{\alpha}{K} & \text{otherwise} \end{cases} $$

where α is typically 0.1 and K is the vocabulary size.

Layer-wise Adaptive Rate Scaling

Applies different learning rates to each transformer layer based on their gradient magnitudes:

$$ \eta_l = \frac{\eta_{\text{base}}}{1 + \beta\cdot l} $$

where l is the layer depth and β controls the decay rate.

Entropy Regularization

Encourages exploration in autoregressive generation by penalizing low-entropy distributions:

$$ \mathcal{L}_{\text{entropy}} = -\mathbb{E}_{x\sim p_{\text{model}}}[\log p_{\text{model}}(x)] $$

3.5 Hardware Considerations and Distributed Training

Training large language models (LLMs) requires specialized hardware architectures to handle the computational and memory demands. The primary bottleneck is the quadratic scaling of attention mechanisms with sequence length, necessitating high-throughput parallel processing. Modern LLM training leverages heterogeneous computing systems combining GPUs, TPUs, and high-bandwidth interconnects.

Accelerator Architectures

NVIDIA's Tensor Core GPUs (A100/H100) dominate LLM training due to their mixed-precision matrix multiplication units and high memory bandwidth (2TB/s on H100). Each GPU contains:

Google's TPU v4 pods provide alternative architectures with 4096 chips interconnected via 3D toroidal networks, achieving 1.1 exaflops of bfloat16 performance. The choice between GPU and TPU involves tradeoffs:

$$ \text{Throughput}_{\text{GPU}} = \frac{N_{\text{SM}} \times f_{\text{clock}} \times \text{MMA}_{\text{ops/cycle}}}{ \text{Memory Latency} } $$

Distributed Training Strategies

Three primary parallelism approaches combine to handle billion-parameter models:

Data Parallelism

Each device processes a subset of the batch with synchronized gradients. The all-reduce operation dominates communication overhead:

$$ t_{\text{all-reduce}} = 2(N-1)\frac{D}{B} + N\log N\frac{D}{B} $$

where D is parameter size and B is interconnect bandwidth.

Model Parallelism

Tensor parallelism splits weight matrices across devices. For a linear layer Y = XW, the computation becomes:

$$ Y = [X_1 \ X_2] \begin{bmatrix} W_1 \\ W_2 \end{bmatrix} = X_1W_1 + X_2W_2 $$

Pipeline parallelism partitions layers across devices, requiring careful micro-batching to maintain utilization.

Memory Optimization Techniques

Gradient checkpointing reduces activation memory by 5-10x through recomputation:

Mixed precision training combines bfloat16 for activations with fp32 for master weights, using loss scaling to prevent underflow:

$$ \text{gradient}_{\text{fp32}} = \text{gradient}_{\text{bf16}} \times S_{\text{scale}} $$

Network Topologies

DGX SuperPOD configurations use NVIDIA's Quantum-2 InfiniBand with 400Gb/s per port and 3.2μs latency. Key topology choices include:

The optimal configuration depends on the ratio of computation to communication, characterized by the arithmetic intensity:

$$ I_{\text{arith}} = \frac{\text{FLOPs}}{\text{Bytes Transferred}} $$

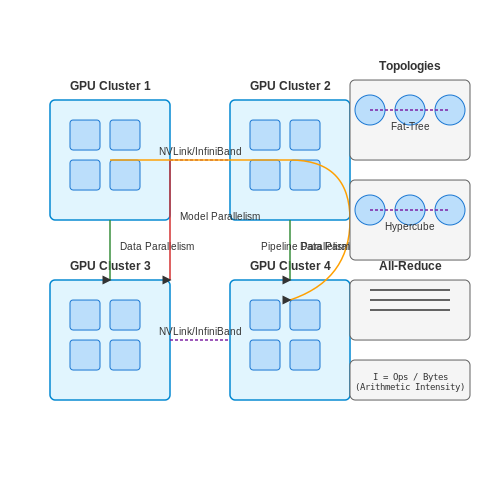

Hardware Considerations and Distributed Training – LLM Training Pipeline Overview – Tutorial Diagram
Diagram Description: The section covers distributed training strategies and network topologies, which involve spatial relationships between hardware components and data flow paths that are difficult to visualize through text alone.

4. Perplexity and Other Metrics

4.1 Perplexity and Other Metrics

Perplexity as an Intrinsic Evaluation Metric

Perplexity measures how well a language model predicts a sample of text, quantifying the uncertainty in its predictions. For a test set W consisting of N tokens w1, w2, ..., wN, perplexity PP(W) is defined as the exponential of the cross-entropy loss:

$$ PP(W) = \exp\left(-\frac{1}{N} \sum_{i=1}^{N} \log P(w_i | w_{<i})\right) $$

Lower perplexity indicates better predictive performance, as the model assigns higher probabilities to the actual next tokens. For example, a perplexity of 30 means the model is as uncertain as if it had to choose uniformly among 30 possible tokens at each step.

Mathematical Derivation of Perplexity

Starting from the definition of cross-entropy H(W) for the test set:

$$ H(W) = -\frac{1}{N} \sum_{i=1}^{N} \log P(w_i | w_{<i}) $$

Perplexity is derived by exponentiating the cross-entropy, effectively converting the log-probability average back into a multiplicative measure of uncertainty:

$$ PP(W) = 2^{H(W)} $$

This formulation aligns with information theory, where perplexity represents the effective branching factor of the model's predictions.

Alternative Metrics for LLM Evaluation

While perplexity is widely used, other metrics provide complementary insights:

Practical Considerations in Metric Selection

Perplexity is sensitive to tokenization strategies—models using subword tokenization (e.g., Byte Pair Encoding) may artificially lower perplexity by splitting rare words into frequent subword units. In contrast, BPC remains stable across tokenization schemes but is less intuitive to interpret.

For generative tasks, human evaluation metrics like BLEU, ROUGE, or METEOR are often employed alongside perplexity. However, these require reference texts and may not correlate perfectly with intrinsic measures. Recent work also explores learned metrics like BERTScore, which align better with human judgments by leveraging pretrained embeddings.

Case Study: Perplexity in Model Selection

When comparing GPT-3 variants, the 175B parameter model achieved a perplexity of 20.5 on the Penn Treebank test set, while the 6B parameter model scored 35.2. This quantitative difference reflects the larger model's superior ability to capture linguistic patterns, though real-world deployment must also consider computational costs and latency.

4.2 Validation Strategies

Holdout Validation

Holdout validation partitions the dataset into fixed training (70-80%), validation (10-15%), and test (10-15%) sets. While simple, this method risks high variance in performance estimates if the dataset is small or imbalanced. For LLMs, stratified sampling is often applied to maintain label distribution across splits, especially for low-resource languages or specialized domains like biomedical text.

$$ \text{Validation Error} = \frac{1}{n_{\text{val}}} \sum_{i=1}^{n_{\text{val}}} \mathcal{L}(f(x_i), y_i) $$

Cross-Validation

K-fold cross-validation mitigates holdout limitations by rotating validation sets. For LLMs, computational costs often restrict K to 3-5 folds. Time-series data requires blocked cross-validation to prevent leakage:

Dynamic Validation Metrics

Beyond perplexity, LLM validation integrates task-specific metrics:

$$ \text{BLEU} = \text{BP} \cdot \exp\left(\sum_{n=1}^N w_n \log p_n\right) $$

where BP (brevity penalty) penalizes short translations, and \( p_n \) is n-gram precision. For dialogue systems, metrics like coherence (BERTScore) and diversity (distinct-n) are tracked.

Adversarial Validation

Tests model robustness against perturbed inputs (e.g., typos, paraphrases). Techniques include:

Online Validation

Deploys shadow models in production to compare live user interactions with offline validation results. Key metrics include:

Validation for Multimodal Models

For models processing text and images (e.g., LLaVA), validation requires:

4.3 Hyperparameter Tuning

Hyperparameter tuning is a critical step in optimizing large language models (LLMs), where the choice of parameters not directly learned during training significantly impacts model performance. Unlike model weights, hyperparameters must be set prior to training and govern the learning dynamics, architecture, and regularization.

Key Hyperparameters in LLM Training

The most influential hyperparameters in transformer-based LLMs include:

Mathematical Foundations

The relationship between learning rate and batch size follows scaling laws derived from gradient noise analysis. For a fixed compute budget, the optimal learning rate scales with the square root of batch size:

$$ \eta \propto \sqrt{B} $$

This emerges from analyzing gradient variance where the signal-to-noise ratio (SNR) scales as:

$$ \text{SNR} = \frac{\|\mathbb{E}[\nabla \mathcal{L}]\|_2}{\sqrt{\text{Var}[\nabla \mathcal{L}]}} \propto \sqrt{B} $$

Warmup schedules often use linear or inverse square root scaling. The Adam optimizer's effective learning rate with warmup is:

$$ \eta_{\text{eff}} = \eta \cdot \min\left(1, \frac{t}{t_{\text{warm}}}\right) \cdot \frac{\sqrt{1-\beta_2^t}}{1-\beta_1^t} $$

Advanced Tuning Strategies

Bayesian Optimization

Models the hyperparameter response surface as a Gaussian process, using acquisition functions like expected improvement (EI) to guide sampling:

$$ \text{EI}(x) = \mathbb{E}[\max(0, f(x) - f(x^+))] $$

Where x+ is the current best configuration. This outperforms grid/random search when evaluation costs are high.

Population-Based Training (PBT)

Maintains a population of models that asynchronously explore and exploit hyperparameter space through:

Practical Considerations

For billion-parameter models, tuning requires distributed infrastructure with:

Recent work shows that some hyperparameters (like attention dimensions) follow power-law scaling with model size, allowing extrapolation from smaller proxy models.

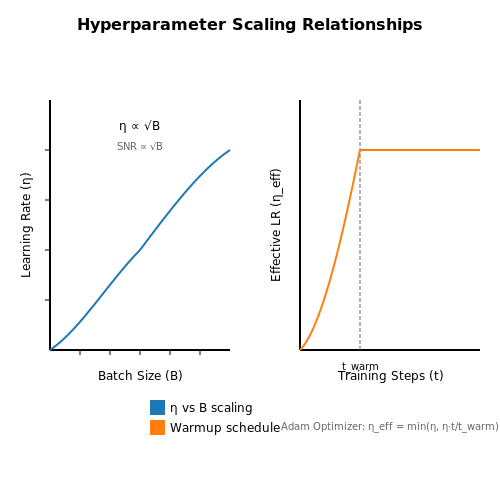

Hyperparameter Tuning – LLM Training Pipeline Overview – Tutorial Diagram
Diagram Description: The diagram would show the mathematical relationship between learning rate and batch size scaling, and the warmup schedule's impact on effective learning rate over time.

4.4 Domain-Specific Fine-Tuning

Domain-specific fine-tuning adapts a pre-trained language model to specialized tasks or knowledge domains by further training on curated datasets. Unlike general-purpose pre-training, this stage emphasizes task relevance and domain alignment, optimizing the model's performance for applications like legal document analysis, biomedical research, or financial forecasting.

Mathematical Foundations

The fine-tuning objective minimizes a domain-adapted loss function, typically combining the original pre-training loss with a task-specific term. For a model with parameters θ, the optimization problem becomes:

$$ \min_{\theta} \left( \mathcal{L}_{\text{pretrain}}(\theta) + \lambda \mathcal{L}_{\text{domain}}(\theta) \right) $$

where λ controls the trade-off between retaining general knowledge and acquiring domain expertise. The domain loss often employs cross-entropy for classification tasks or masked language modeling for continued pretraining:

$$ \mathcal{L}_{\text{domain}} = -\sum_{x \in \mathcal{D}} \log p_\theta(y_x | x) $$

Key Methodologies

1. Continued Pretraining

Models undergo additional unsupervised training on domain-specific corpora (e.g., PubMed for biomedical applications). This phase updates the model's embedding space to better represent domain terminology and concepts before task-specific fine-tuning.

2. Multi-Task Learning

Simultaneous optimization across related domain tasks improves generalization. The loss function becomes:

$$ \mathcal{L} = \sum_{i=1}^N w_i \mathcal{L}_i(\theta) $$

where wi are task weights, often determined through uncertainty weighting or gradient normalization.

3. Parameter-Efficient Methods

For resource-constrained scenarios:

Practical Considerations

Data Curation requires careful balancing of domain coverage and quality. Effective strategies include:

Evaluation Metrics must reflect domain requirements. Beyond standard accuracy, consider:

Architectural Modifications

Specialized architectures often emerge from domain analysis:

$$ \text{ModifiedAttention}(Q,K,V) = \text{Softmax}\left(\frac{QK^T}{\sqrt{d_k}} + M\right)V $$

where M represents domain-specific attention biases (e.g., enforcing legal citation hierarchies).

5. Model Quantization and Compression

5.1 Model Quantization and Compression

Fundamentals of Quantization

Quantization reduces the precision of model parameters, typically from 32-bit floating-point (FP32) to lower-bit representations (e.g., INT8, INT4). The process minimizes memory footprint and computational cost while preserving model accuracy. For a tensor X with range [α, β], uniform quantization maps values to integers Q via:

$$ Q = \text{round}\left(\frac{X - \alpha}{s}\right) $$

where s is the scale factor, calculated as s = (β − α)/(2b − 1) for b-bit quantization. Dequantization reconstructs the original range:

$$ \hat{X} = Q \cdot s + \alpha $$

Advanced Quantization Techniques

Dynamic Quantization applies scaling per tensor at runtime, adapting to input distributions. Static Quantization precomputes scales using calibration data, reducing runtime overhead. For LLMs, hybrid approaches like group-wise quantization partition weight matrices into groups, each with unique scales, mitigating accuracy loss:

$$ s_g = \frac{\max(|W_g|)}{2^{b-1} - 1} $$

where Wg denotes weights in group g. Recent methods like GPTQ optimize rounding via layer-wise Hessian-based calibration, achieving near-FP16 accuracy at 4 bits.

Efficient Compression Strategies

Pruning removes redundant weights, often combined with quantization. Magnitude pruning eliminates weights below a threshold, while structured pruning removes entire neurons or attention heads. The sparsity pattern is encoded using formats like CSR (Compressed Sparse Row):

$$ \text{CSR size} = 2 \cdot \text{nnz} + n + 1 $$

where nnz is non-zero count and n is rows. Knowledge Distillation trains a smaller student model to mimic a quantized teacher, recovering accuracy through logit matching:

$$ \mathcal{L}_{KD} = \text{KL}(p_{\text{teacher}} || p_{\text{student}}) $$

Hardware-Aware Optimization

Modern accelerators (e.g., NVIDIA Tensor Cores, TPUs) exploit quantized arithmetic for throughput gains. INT8 matrix multiplication achieves up to 4× speedup over FP32 by leveraging integer SIMD units. The effective compute throughput T scales as:

$$ T \propto \frac{\text{ops}}{\text{bitwidth}} \cdot \text{utilization} $$

Emerging techniques like mixed-precision quantization allocate higher bits to sensitive layers (e.g., attention outputs), balancing accuracy and latency.

Case Study: LLM Deployment

Meta’s LLaMA-2 70B reduces memory from 280GB (FP32) to 20GB (4-bit) via GPTQ, enabling single-GPU inference. Latency drops linearly with bitwidth, while perplexity increases by only 0.5 on WikiText-103. Trade-offs are formalized in the Pareto frontier of size versus accuracy.

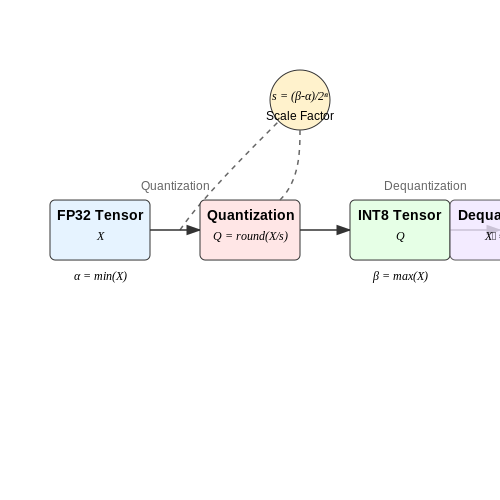

Model Quantization and Compression – LLM Training Pipeline Overview – Tutorial Diagram
Diagram Description: The diagram would show the step-by-step transformation of a tensor through uniform quantization and dequantization, including scale factor calculation and rounding operations.

5.2 Inference Optimization Techniques

Quantization

Quantization reduces the precision of model weights and activations from 32-bit floating-point (FP32) to lower-bit representations (e.g., INT8, INT4). This decreases memory footprint and accelerates computation while maintaining acceptable accuracy. Two primary approaches exist:

$$ W_{quant} = \text{round}\left(\frac{W}{s}\right) \cdot s $$

where s is the scaling factor and round maps values to the nearest integer. For asymmetric INT8 quantization:

$$ s = \frac{255}{\max(W) - \min(W)}, \quad z = \text{round}(-s \cdot \min(W)) $$

Pruning

Pruning removes redundant weights or neurons while preserving model performance. Common methods include:

Pruning is typically iterative: train → prune → fine-tune. The sparsity level k defines the fraction of weights retained:

$$ \mathcal{L}_{pruned} = \mathcal{L}(f(x; W \odot M), y) + \lambda \|M\|_0 $$

where M is a binary mask and λ controls sparsity.

Knowledge Distillation

Knowledge distillation (KD) trains a smaller student model to mimic a larger teacher model's behavior. The loss function combines task-specific loss (e.g., cross-entropy) and distillation loss:

$$ \mathcal{L}_{KD} = \alpha \mathcal{H}(y, \sigma(z_s)) + (1-\alpha) \tau^2 \mathcal{KL}(\sigma(z_t/\tau), \sigma(z_s/\tau)) $$

where z_t and z_s are teacher/student logits, τ is the temperature parameter, and α balances the losses.

Efficient Attention Mechanisms

Standard self-attention has O(n²) complexity. Optimizations include:

For example, Linformer projects keys/values to k-dimensions:

$$ \text{Attention}(Q, K, V) = \text{softmax}\left(\frac{Q(EK)^T}{\sqrt{d_k}}\right) EV $$

where E is a learned projection matrix.

Hardware-Aware Optimizations

Tailoring models to hardware accelerators involves:

Dynamic Computation

Techniques like early exiting or adaptive width allocate computation dynamically based on input difficulty. For a model with L layers and exit points at {l_1, ..., l_k}, the exit condition for layer l_i is:

$$ \mathbb{I}(\max(\sigma(z_{l_i})) > \theta) $$

where θ is a confidence threshold.

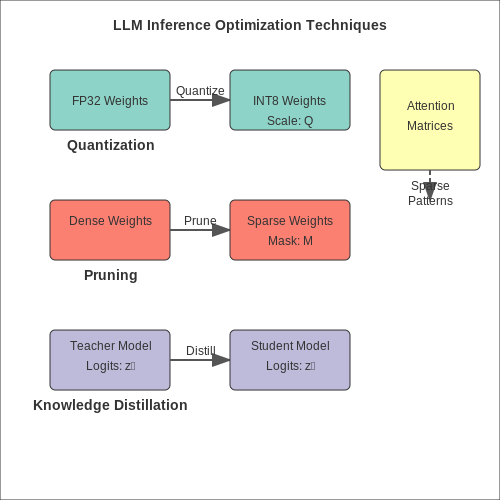

Inference Optimization Techniques – LLM Training Pipeline Overview – Tutorial Diagram
Diagram Description: The section covers multiple optimization techniques (quantization, pruning, knowledge distillation) that involve transformations of model weights and architectures, which are inherently spatial and benefit from visual representation.

5.3 Serving Infrastructure

Deploying large language models (LLMs) in production requires a robust serving infrastructure capable of handling high-throughput, low-latency inference requests while maintaining scalability and cost efficiency. The architecture must address compute constraints, memory bandwidth limitations, and dynamic load balancing to ensure optimal performance under varying traffic conditions.

Key Components of LLM Serving Systems

Modern LLM serving stacks typically consist of several critical layers:

Latency-Throughput Tradeoffs

The serving infrastructure must balance competing demands of latency and throughput, governed by the relationship:

$$ T = \frac{L \cdot N}{C} + \frac{S}{B} $$

where T is total response time, L is sequence length, N is batch size, C is compute capacity (tokens/sec), S is model size, and B is memory bandwidth. This reveals the fundamental tension between increasing batch size (improving throughput) and maintaining low latency.

Hardware Considerations

Specialized accelerators like NVIDIA H100 GPUs with Transformer Engine or Google TPU v4 Pods provide architectural advantages for LLM serving:

Orchestration Systems

Production deployments typically leverage Kubernetes-based orchestration with custom schedulers that account for:

Advanced systems implement predictive scaling using request pattern analysis and gradient boosting models to anticipate traffic spikes before they occur, reducing cold start latency by 40-60% compared to reactive scaling.

Monitoring and Observability

Comprehensive telemetry collection is critical for maintaining service-level objectives (SLOs):

Distributed tracing systems like OpenTelemetry correlate these metrics across the entire serving stack, from load balancers to individual model shards.

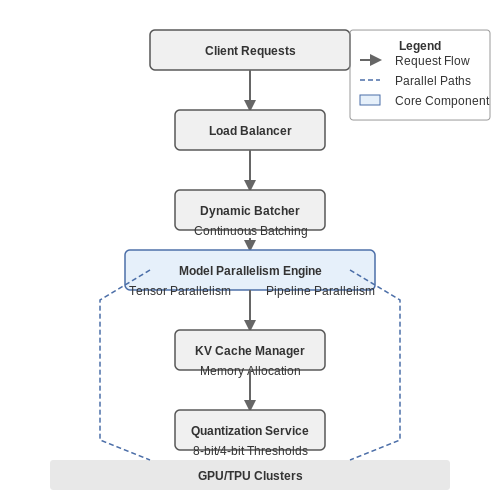

Serving Infrastructure – LLM Training Pipeline Overview – Tutorial Diagram
Diagram Description: The diagram would show the layered architecture of an LLM serving system with model parallelism, dynamic batching, and KV cache management components interacting across distributed hardware.

5.4 Monitoring and Maintenance

Effective monitoring and maintenance of large language models (LLMs) during and after training is critical to ensure model stability, performance consistency, and early detection of degradation. Unlike traditional machine learning models, LLMs require specialized monitoring due to their scale, complexity, and dynamic behavior.

Key Metrics for Training Monitoring

During training, the following metrics must be tracked in real-time to detect anomalies or suboptimal convergence:

Post-Training Monitoring

Once deployed, LLMs require continuous monitoring to detect:

Maintenance Strategies

Proactive maintenance involves:

Automated Alerting Systems

Implement multi-level alerting based on:

$$ A = \begin{cases} 0 & \text{if } |\Delta m| < \sigma \\ 1 & \text{if } \sigma \leq |\Delta m| < 3\sigma \\ 2 & \text{if } |\Delta m| \geq 3\sigma \end{cases} $$

where $$\Delta m$$ is the metric deviation from baseline and $$\sigma$$ is the moving standard deviation. Level 2 alerts should trigger automatic rollbacks to known-good model checkpoints.

Infrastructure Considerations

Distributed monitoring requires:

6. Bias and Fairness in Training Data

Bias and Fairness in Training Data

Bias in training data manifests when the dataset disproportionately represents certain groups, perspectives, or features, leading to skewed model predictions. This bias can propagate through the entire LLM training pipeline, resulting in outputs that reinforce stereotypes or discriminate against underrepresented groups. Mathematically, bias can be quantified using statistical disparity measures, such as demographic parity difference:

$$ \Delta_{DP} = P(\hat{Y}=1 | Z=1) - P(\hat{Y}=1 | Z=0) $$

where Ŷ is the model's prediction and Z denotes the sensitive attribute (e.g., gender, race). A non-zero ΔDP indicates bias in the model's decision boundary.

Sources of Bias in Training Data

Bias originates from multiple stages of data collection and preprocessing:

Measuring Fairness in LLMs

Fairness metrics for LLMs extend beyond classification tasks to generative outputs. Key approaches include:

$$ \text{Original: "The nurse handed the doctor the scalpel."} $$ $$ \text{Counterfactual: "The male nurse handed the female doctor the scalpel."} $$

Statistical tests then measure output distribution differences between original and counterfactual examples.

$$ \text{WEAT} = \frac{\text{mean}_{x \in X} s(x, A, B) - \text{mean}_{y \in Y} s(y, A, B)} {\text{std-dev}_{w \in X \cup Y} s(w, A, B)} $$

where s(w, A, B) measures the association strength between word w and attribute sets A, B.

Debiasing Techniques

Current debiasing methods operate at different pipeline stages:

Pre-processing Methods

Reweighting training instances to balance demographic representation. For a dataset with groups G1, G2, weights wi are computed as:

$$ w_i = \frac{\min(|G_1|, |G_2|)}{|G_k|} \quad \text{for} \quad x_i \in G_k $$

This ensures equal contribution from minority groups during gradient updates.

In-processing Methods

Adversarial debiasing introduces a discriminator network that predicts the sensitive attribute from hidden representations. The loss function becomes:

$$ \mathcal{L} = \mathcal{L}_{\text{task}} - \lambda \mathcal{L}_{\text{adv}} $$

where λ controls the trade-off between task performance and fairness. The adversarial loss Ladv maximizes the discriminator's error, forcing the encoder to remove sensitive information.

Post-processing Methods

Calibration techniques adjust model outputs post-training. For binary classification, the predicted probability p is transformed to satisfy equalized odds:

$$ p'(x) = \frac{p(x)}{p(x) + \frac{1 - \pi_z}{\pi_z} \cdot \frac{1 - p(x)}{p(x)}} $$

where πz is the base rate for group Z=z. This ensures equal true positive rates across groups.

Case Study: Gender Bias in Occupation Prediction

A 2022 study fine-tuned BERT on occupation descriptions from Wikipedia, revealing that:

This demonstrates that while bias mitigation is possible, it requires careful benchmarking across multiple fairness dimensions.

6.2 Environmental Impact of Training

Carbon Footprint of Large-Scale Training

The computational demands of training large language models (LLMs) result in significant energy consumption, primarily driven by matrix multiplications and attention mechanisms in transformer architectures. The carbon footprint can be quantified using the following relationship:

$$ E = P \times t \times C $$

where E is the total CO2 emissions (kg), P is the average power consumption (kW), t is the training time (hours), and C is the carbon intensity of the energy source (kg CO2/kWh). For example, training GPT-3 with 175B parameters on NVIDIA V100 GPUs consumed approximately 1,300 MWh, resulting in roughly 550 metric tons of CO2 when using grid electricity at 0.429 kg CO2/kWh.

Energy Efficiency Metrics

The energy efficiency of LLM training is often measured in floating-point operations per watt (FLOPs/W). Current state-of-the-art models achieve:

$$ \eta = \frac{N_{\text{FLOPs}}}{E_{\text{total}}} $$

where η represents computational efficiency (FLOPs/J), NFLOPs is the total operations, and Etotal is the energy expenditure (Joules). Modern transformer architectures typically operate in the range of 109-1010 FLOPs/J, with sparsely activated models (e.g., Mixture of Experts) showing 2-3× improvements over dense counterparts.

Hardware Considerations

The choice of hardware significantly impacts environmental costs:

Mitigation Strategies

Several approaches can reduce environmental impact:

Lifecycle Analysis

The full environmental cost extends beyond training to include:

6.3 Content Moderation and Safety

Modern large language models (LLMs) must be trained to avoid generating harmful, biased, or unsafe content. This requires a multi-stage pipeline combining automated filtering, human annotation, and reinforcement learning from human feedback (RLHF). The key challenge lies in balancing safety constraints with model creativity and usefulness.

Automated Toxicity Detection

Pre-training data is first filtered using classifier models trained to detect toxic, violent, or NSFW content. The most common approach uses a binary classifier with a threshold probability p:

$$ P(y=1|x) = \sigma(W^T\phi(x) + b) $$

where φ(x) represents the text embeddings and σ is the sigmoid function. In practice, ensembles of classifiers (BERT, RoBERTa, and specialized toxicity models) achieve higher recall. The threshold p is tuned to minimize false positives while catching 95%+ of truly harmful content.

Human-in-the-Loop Annotation

Automated filters are supplemented with human review for edge cases. Annotators label content across multiple dimensions:

Inter-annotator agreement (measured via Fleiss' kappa) must exceed 0.7 for reliable labels. Disagreements are resolved through adjudication.

Reinforcement Learning from Human Feedback

RLHF fine-tunes the model using human preferences on safety vs. helpfulness. The reward function combines:

$$ R(x) = \alpha R_{safety}(x) + (1-\alpha)R_{helpfulness}(x) $$

where α controls the safety-utility tradeoff. Proximal Policy Optimization (PPO) is typically used to maximize expected reward while staying close to the original policy.

Red Teaming and Adversarial Testing

Before deployment, models undergo rigorous adversarial testing where red teams attempt to elicit harmful outputs through:

Successful attacks are added to the training data for further fine-tuning. This iterative process continues until the model's failure rate drops below an acceptable threshold (typically <1% for high-risk applications).

Real-Time Moderation Systems

Deployed models use a secondary classifier to filter unsafe generations post-inference. This safety net catches:

The moderation system can either block unsafe outputs or trigger a more conservative model response. Latency constraints require efficient architectures like distilled BERT variants.

Continuous Monitoring and Updates

Post-deployment, user feedback and new attack patterns feed back into the training pipeline. Key metrics include:

$$ \text{Safety Score} = 1 - \frac{\text{# unsafe outputs}}{\text{total queries}} $$

Models are retrained when the safety score drops below a threshold or new vulnerability classes are discovered. This closed-loop system ensures ongoing safety as both language norms and attack methods evolve.

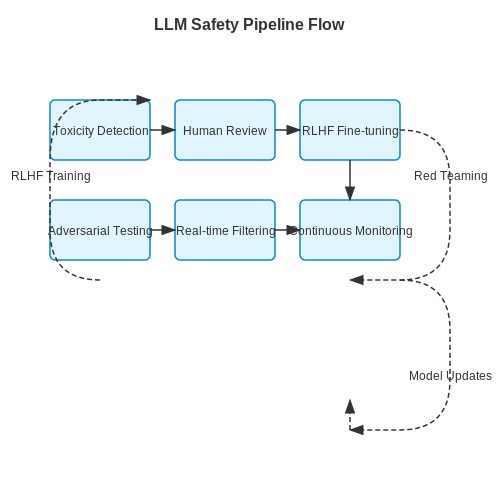

Content Moderation and Safety – LLM Training Pipeline Overview – Tutorial Diagram
Diagram Description: The diagram would show the multi-stage pipeline of content moderation and safety, illustrating how automated filtering, human annotation, RLHF, red teaming, and real-time moderation systems interact sequentially.

6.4 Legal and Compliance Issues

Intellectual Property and Copyright Considerations

Training large language models requires massive datasets, often scraped from publicly available sources including books, articles, and websites. This raises critical questions around copyright law's applicability to machine learning. The fair use doctrine in U.S. law (17 U.S.C. § 107) provides limited exceptions for purposes like research, but commercial applications face stricter scrutiny. The EU's Copyright in the Digital Single Market Directive (2019/790) explicitly addresses text and data mining, requiring explicit opt-outs for copyrighted material.

$$ P(\text{infringement}) = 1 - \prod_{i=1}^{n} (1 - P(\text{detect}_i \cap \text{enforce}_i)) $$

Where detection probability scales with dataset uniqueness and enforcement likelihood depends on jurisdictional factors. Recent cases like Authors Guild v. Google (2015) established precedent for transformative use, but the legal landscape remains unsettled for generative AI outputs.

Data Privacy Regulations

Global privacy frameworks impose strict requirements on personal data processing:

Differential privacy techniques can help achieve compliance:

$$ \mathcal{E} \leq \frac{\sqrt{2\ln(1.25/\delta)}}{\sigma} $$

Where ε represents the privacy budget and σ is noise scale. Practical implementations often use Rényi differential privacy for tighter composition bounds during multi-epoch training.

Export Controls and Dual-Use Restrictions

LLMs face increasing scrutiny under export control regimes like:

Model weights exceeding certain computational thresholds (≥1024 FLOPs training) may trigger licensing requirements. The AI Export Controls Act (2023) proposes explicit parameter-based thresholds:

$$ \text{Controlled} = \begin{cases} \text{True} & \text{if } n_{\text{params}} > 10^9 \cap \text{domain} \in \{\text{CV},\text{NLP}\} \\ \text{False} & \text{otherwise} \end{cases} $$

Liability Frameworks

Three dominant legal theories apply to LLM outputs:

The AI Liability Directive (EU 2022/0300) introduces a rebuttable presumption of causality, shifting the burden of proof to developers for high-risk AI systems. Insurance requirements scale with model capabilities:

$$ \text{Premium} = k \cdot \text{params}^{1.2} \cdot \text{API calls}^{0.8} $$

Compliance Automation

Emerging tools use ML to maintain compliance:

Architectural solutions include:

class ComplianceLayer(nn.Module):
    def __init__(self, legal_jurisdiction):
        super().__init__()
        self.gdpr_filter = GDPRFilter() if 'EU' in legal_jurisdiction else None
        self.ccpa_optout = CCPAOptOut() if 'CA' in legal_jurisdiction else None

    def forward(self, x):
        if self.gdpr_filter:
            x = self.gdpr_filter(x)
        if self.ccpa_optout:
            x = self.ccpa_optout(x)
        return x

7. Key Research Papers

7.1 Key Research Papers

7.2 Open-Source Implementations

7.3 Recommended Books and Courses

7.4 Community Resources and Forums
