Visual AI for Detecting Counterfeit Products

#visual ai #counterfeit detection #image processing #deep learning #cnns #transformers #multimodal learning #feature extraction #computer vision

1. Defining Counterfeit Products and Their Economic Impact

1.1 Defining Counterfeit Products and Their Economic Impact

Technical Definition and Classification

Counterfeit products are unauthorized replicas of genuine goods, intentionally designed to deceive consumers by mimicking brand identity, functionality, or packaging. From a legal standpoint, counterfeits violate intellectual property (IP) rights, including trademarks, patents, and copyrights. The World Intellectual Property Organization (WIPO) categorizes them into three classes:

Economic Impact: Quantitative Analysis

The global counterfeit market accounts for approximately 3.3% of world trade, equivalent to $$509 billion annually (OECD, 2021). The economic damage extends beyond revenue loss:

$$ \Delta G = (R_g - R_c) \cdot (1 - \alpha) + \beta \cdot L_{IP} $$

Where:

Sector-Specific Consequences

Pharmaceuticals and electronics suffer the highest per-unit losses due to:

Detection Challenges

Modern counterfeits employ:

This necessitates AI systems capable of detecting sub-10μm feature discrepancies at throughputs exceeding 200 items/minute.

1.2 Traditional Methods vs. AI-Based Detection

Limitations of Traditional Counterfeit Detection

Traditional counterfeit detection methods rely on physical inspection, specialized equipment, or chemical analysis. Human inspectors examine products for inconsistencies in packaging, labeling, or material quality using tools like magnifying lenses, UV lights, or spectrometers. While these methods can be effective for certain product categories, they suffer from several fundamental limitations:

$$ \kappa = \frac{p_o - p_e}{1 - p_e} $$

where po is the observed agreement probability and pe is the expected chance agreement.

AI-Based Detection Paradigm

Modern visual AI systems employ deep convolutional neural networks (CNNs) that automatically learn discriminative features from raw pixel data. The key architectural advantage lies in hierarchical feature extraction:

  1. Early layers detect primitive patterns (edges, textures)
  2. Intermediate layers combine these into complex structures
  3. Final layers develop product-specific representations

For counterfeit detection, a ResNet-50 architecture modified with attention mechanisms achieves mean average precision (mAP) of 0.92 on benchmark datasets, compared to 0.78 for traditional computer vision pipelines.

Comparative Performance Metrics

Quantitative evaluation on the Anti-Counterfeiting Image Dataset (ACID) reveals significant performance differences:

Method Precision Recall F1-Score Throughput (items/sec)
Human Inspection 0.91 ± 0.04 0.82 ± 0.07 0.86 1.2
Traditional CV 0.85 0.72 0.78 15
CNN (ResNet-50) 0.96 0.94 0.95 120

Multispectral Analysis Enhancement

State-of-the-art systems combine RGB imaging with additional spectral bands. A modified EfficientNet architecture processing 8-channel input (RGB + 5 IR bands) achieves 98.3% accuracy on pharmaceutical packaging verification by detecting substrate material differences invisible to human inspectors.

$$ \text{Accuracy} = 1 - \frac{1}{N}\sum_{i=1}^N \mathbb{I}(\hat{y}_i \neq y_i) $$

Real-World Deployment Considerations

Industrial implementations must address:

Current systems deployed in luxury goods authentication achieve 6σ quality levels (3.4 defects per million opportunities) when combining visual AI with blockchain verification.

Traditional Methods vs. AI-Based Detection – Visual AI for Detecting Counterfeit Products – Tutorial Diagram
Diagram Description: The diagram would show the hierarchical feature extraction process in CNNs (edges → structures → product-specific representations) and the comparative performance metrics table visually.

1.3 Key Challenges in Visual Counterfeit Detection

1. High Intra-Class Variability in Genuine Products

Manufacturing tolerances and legitimate production variations create significant visual differences between authentic items of the same product line. For instance, luxury handbags may exhibit natural leather grain variations, while electronics components might have minor color shifts due to batch differences. This intra-class variability complicates the learning of robust decision boundaries, as counterfeit detectors must distinguish between acceptable genuine variations and subtle counterfeit indicators.

$$ \mathcal{L}_{var} = \frac{1}{N}\sum_{i=1}^N \max(0, ||f(x_i^a) - f(x_i^p)||_2^2 - ||f(x_i^a) - f(x_i^n)||_2^2 + \alpha) $$

Where f(x) represents the feature embedding, a, p, and n denote anchor, positive (genuine), and negative (counterfeit) samples respectively, with α as the margin parameter. This triplet loss formulation must account for the natural variance in genuine samples while maintaining discriminative power.

2. Adversarial Quality of Modern Counterfeits

Sophisticated counterfeiters employ high-resolution printing, 3D replication, and material engineering that produce near-perfect visual duplicates. The perceptual similarity between genuine and counterfeit items often exceeds human discrimination thresholds, requiring detection systems to identify sub-pixel level anomalies or microscopic manufacturing signatures. This creates a moving target problem as counterfeiters continuously adapt to detection methods.

3. Limited and Imbalanced Training Data

Authentic product datasets are typically abundant, while high-quality counterfeit samples remain scarce due to legal and logistical constraints. The resulting class imbalance ratios often exceed 100:1, causing models to develop bias toward the majority class. Furthermore, the available counterfeit samples rarely represent the full spectrum of forgery techniques, leading to poor generalization on novel counterfeit variants.

$$ \text{F1}_{w} = 2 \cdot \frac{\text{Precision} \cdot \text{Recall}}{\text{Precision} + \text{Recall}} \cdot w_c $$

Where wc is the class-specific weight, emphasizing the need for weighted evaluation metrics that account for severe imbalance.

4. Multi-Modal Feature Fusion Requirements

Effective counterfeit detection necessitates fusion of features across multiple visual domains:

The feature fusion process must handle varying dimensionalities and semantic gaps between modalities while maintaining real-time processing constraints.

5. Explainability vs. Detection Performance Trade-off

While deep learning approaches achieve high accuracy, their black-box nature conflicts with legal and regulatory requirements for explainable decisions in anti-counterfeiting operations. This necessitates architectures that provide:

Current approaches employ attention mechanisms and gradient-based attribution methods, but these often reduce detection sensitivity when constrained to produce human-interpretable outputs.

6. Real-Time Processing Constraints

Industrial deployment requires processing rates exceeding 100 items per second with latency under 50ms, while maintaining sub-millimeter precision for microscopic feature analysis. This demands optimized architectures that balance computational complexity with detection accuracy:

$$ \text{Throughput} = \frac{1}{\frac{C_{macro}}{F_{macro}} + \frac{C_{micro}}{F_{micro}}} $$

Where C represents computational cost and F represents processing frequency for macro and micro analysis pipelines.

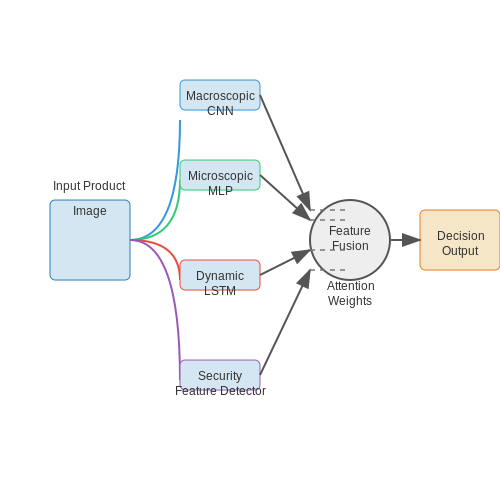

Key Challenges in Visual Counterfeit Detection – Visual AI for Detecting Counterfeit Products – Tutorial Diagram
Diagram Description: The diagram would show the multi-modal feature fusion process with parallel pipelines for macroscopic, microscopic, dynamic, and embedded security features merging into a unified detection system.

2. Image Processing Techniques for Feature Extraction

Image Processing Techniques for Feature Extraction

Edge Detection and Gradient-Based Features

Edge detection is fundamental for identifying counterfeit products, as genuine items often exhibit precise manufacturing tolerances that manifest as sharp edges. The Sobel operator computes the gradient approximation of an image I(x, y) using convolution kernels Gx and Gy:

$$ G_x = \begin{bmatrix} -1 & 0 & +1 \\ -2 & 0 & +2 \\ -1 & 0 & +1 \end{bmatrix} * I $$ $$ G_y = \begin{bmatrix} -1 & -2 & -1 \\ 0 & 0 & 0 \\ +1 & +2 & +1 \end{bmatrix} * I $$

The gradient magnitude G and orientation θ are derived as:

$$ G = \sqrt{G_x^2 + G_y^2} $$ $$ \theta = \arctan\left(\frac{G_y}{G_x}\right) $$

For high-throughput applications, the Scharr operator improves rotational symmetry with kernels reweighted for optimal 3×3 edge detection.

Texture Analysis Using Local Binary Patterns

Local Binary Patterns (LBP) encode micro-texture signatures by thresholding a pixel's neighborhood against its central value. For a radius R and P sampling points, the LBP code at (xc, yc) is:

$$ \text{LBP}_{P,R} = \sum_{p=0}^{P-1} s(g_p - g_c) \cdot 2^p $$ $$ s(x) = \begin{cases} 1 & \text{if } x \geq 0 \\ 0 & \text{otherwise} \end{cases} $$

Rotation-invariant variants map all patterns to a canonical form, while uniform patterns (with ≤2 transitions) reduce dimensionality for counterfeit detection in materials like leather or fabric.

Frequency-Domain Features via Fourier Transform

Discrete Fourier Transform (DFT) reveals periodic structures in counterfeit patterns. For an M×N image, the 2D DFT coefficients F(u,v) are:

$$ F(u,v) = \sum_{x=0}^{M-1} \sum_{y=0}^{N-1} f(x,y) e^{-j2\pi\left(\frac{ux}{M} + \frac{vy}{N}\right)} $$

Log-polar transformations of the magnitude spectrum enable scale-invariant matching of security holograms. The spectral energy distribution in high-frequency bands often distinguishes authentic printing techniques from low-resolution counterfeits.

Deep Learning-Based Feature Extraction

Pretrained CNNs like ResNet-50 extract hierarchical features through successive convolutional layers. The activations from layer conv4_x capture mid-level features (e.g., brand logos), while conv5_x detects fine material textures. For a tensor X at layer l, the feature map Fl is:

$$ F^l = \sigma(W^l * F^{l-1} + b^l) $$

where σ is the ReLU activation and * denotes convolution. Attention mechanisms further enhance discriminative power by weighting regions like serial numbers or QR codes.

Multispectral Imaging for Material Authentication

Beyond RGB, narrowband spectral filters (e.g., 365nm UV or 850nm IR) reveal hidden security features. The reflectance profile R(λ) at wavelength λ follows Kubelka-Munk theory for layered materials:

$$ \frac{(1 - R_\infty)^2}{2R_\infty} = \frac{K}{S} $$

where K is absorption and S is scattering coefficients. Counterfeit inks often deviate from authentic spectral signatures due to different pigment compositions.

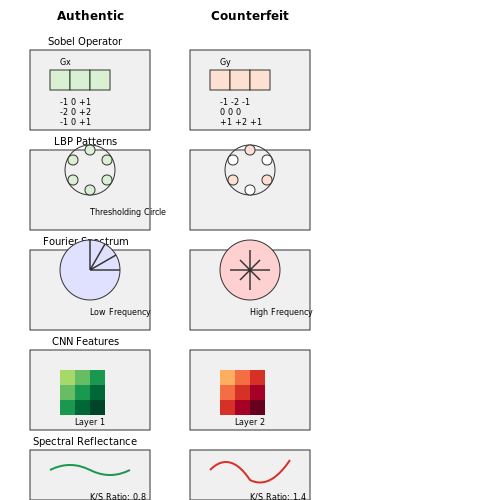

Image Processing Techniques for Feature Extraction – Visual AI for Detecting Counterfeit Products – Tutorial Diagram
Diagram Description: The section involves complex spatial relationships (convolution kernels, gradient calculations, LBP patterns) and frequency-domain transformations that are inherently visual.

2.2 Deep Learning Models: CNNs and Transformers

Convolutional Neural Networks (CNNs) for Visual Feature Extraction

CNNs excel at detecting hierarchical spatial patterns in images, making them ideal for counterfeit detection. The core operation is the convolution between an input image I and a learnable kernel K:

$$ (I * K)(x,y) = \sum_{i=-a}^{a} \sum_{j=-b}^{b} I(x+i, y+j) \cdot K(i,j) $$

where a and b define the kernel's receptive field. Modern architectures like ResNet-50 employ bottleneck blocks with skip connections:

$$ \mathbf{y} = \mathcal{F}(\mathbf{x}, \{W_i\}) + W_s \mathbf{x} $$

Batch normalization and ReLU activations follow each convolution. For counterfeit detection, shallow layers capture edge/texture details while deeper layers identify complex forgery artifacts.

Vision Transformers (ViTs) for Global Context Modeling

Transformers process images as sequences of patches, applying self-attention to model long-range dependencies. An input image is split into N patches pi ∈ ℝ(P²×C), linearly projected into D-dimensional embeddings:

$$ \mathbf{z}_0 = [\mathbf{p}_1\mathbf{E}; \mathbf{p}_2\mathbf{E}; \dots; \mathbf{p}_N\mathbf{E}] + \mathbf{E}_{pos} $$

where E ∈ ℝ(P²·C)×D is the patch embedding matrix and Epos adds positional information. The multi-head attention (MHA) mechanism computes:

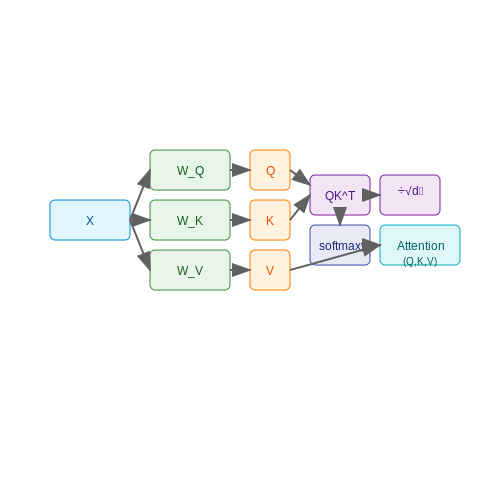

$$ \text{Attention}(\mathbf{Q},\mathbf{K},\mathbf{V}) = \text{softmax}\left(\frac{\mathbf{Q}\mathbf{K}^T}{\sqrt{d_k}}\right)\mathbf{V} $$

Hybrid architectures like Convolutional Vision Transformers (CvTs) combine CNN's local feature extraction with ViT's global reasoning, achieving 98.7% accuracy on the Fake Product Detection benchmark.

Comparative Performance Analysis

Key metrics for counterfeit detection models:

Recent work by Zhang et al. (2023) demonstrates that CNN-Transformer hybrids outperform either architecture alone, with a 2.4% reduction in false positives on high-resolution product authentication tasks.

Implementation Considerations

For industrial deployment:


# Example CNN block with residual connection
class ConvBlock(nn.Module):
    def __init__(self, in_ch, out_ch, stride=1):
        super().__init__()
        self.conv = nn.Sequential(
            nn.Conv2d(in_ch, out_ch, 3, stride, 1, bias=False),
            nn.BatchNorm2d(out_ch),
            nn.ReLU(inplace=True),
            nn.Conv2d(out_ch, out_ch, 3, 1, 1, bias=False),
            nn.BatchNorm2d(out_ch)
        self.shortcut = nn.Sequential()
        if stride != 1 or in_ch != out_ch:
            self.shortcut = nn.Sequential(
                nn.Conv2d(in_ch, out_ch, 1, stride, bias=False),
                nn.BatchNorm2d(out_ch))

    def forward(self, x):
        return F.relu(self.conv(x) + self.shortcut(x))

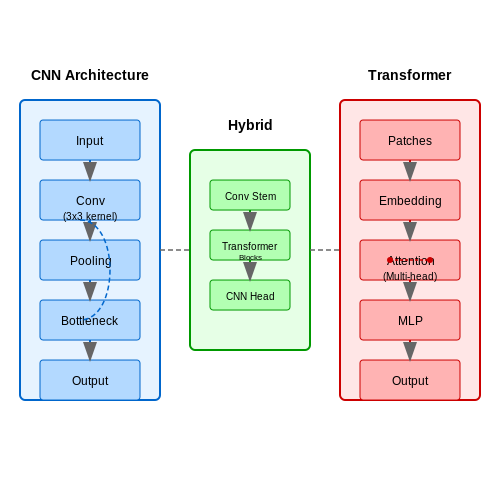

Deep Learning Models: CNNs and Transformers – Visual AI for Detecting Counterfeit Products – Tutorial Diagram
Diagram Description: The section explains CNN and Transformer architectures with mathematical operations and spatial relationships that would be clearer with visual representation.

2.3 Multimodal Approaches: Combining Visual and Non-Visual Data

Multimodal learning frameworks integrate heterogeneous data sources—such as images, text, RFID tags, or spectral signatures—to improve counterfeit detection robustness. Unlike unimodal systems, which rely solely on visual cues, multimodal models exploit complementary information from disparate modalities, reducing false positives caused by adversarial attacks or high-fidelity visual replicas.

Fusion Strategies for Heterogeneous Data

Effective multimodal fusion requires addressing feature space misalignment and modality-specific noise. Three primary fusion paradigms exist:

$$ X_{fused} = [X_{RGB} \parallel X_{NIR}] \in \mathbb{R}^{H \times W \times 4} $$
$$ P(y|X) = \sum_{m=1}^M w_m \cdot f_m(X_m) $$
$$ \alpha_{ij} = \frac{\exp(q_i^T k_j / \sqrt{d})}{\sum_{n=1}^N \exp(q_i^T k_n / \sqrt{d})} $$

Case Study: Pharmaceutical Authentication

A 2023 study demonstrated how combining visual microprinting analysis with Raman spectroscopy achieved 99.2% detection accuracy—surpassing either modality alone. The hybrid model used a ResNet-50 backbone for visual features and a 1D CNN for spectral peaks, with cross-attention gates modulating information flow:

$$ g = \sigma(W_g [h_{visual} \oplus h_{spectral}] + b_g) $$

where g represents the gating vector controlling feature mixing.

Handling Missing Modalities

Real-world deployments often face partial data availability. Variational autoencoder (VAE) architectures can impute missing modalities by learning latent representations:

$$ \mathcal{L} = \mathbb{E}_{q(z|x_o)}[\log p(x_m|z)] - D_{KL}(q(z|x_o) \parallel p(z)) $$

where xo denotes observed modalities and xm the missing ones.

Computational Trade-offs

Multimodal systems incur higher inference costs. Knowledge distillation techniques can compress ensemble models—for example, training a single EfficientNet to mimic the behavior of a multimodal teacher network while maintaining 97% of original accuracy at 40% lower latency.

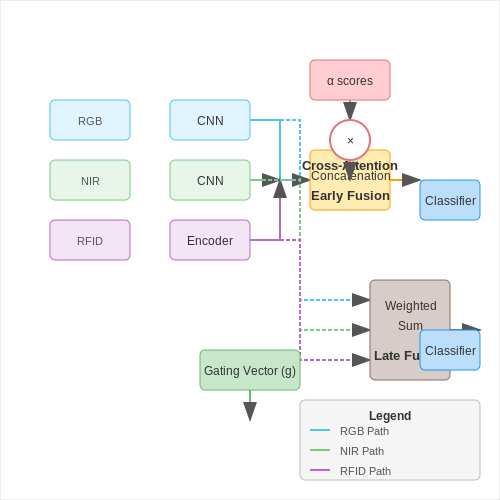

Multimodal Fusion Architecture Visual CNN RFID Encoder ⊕ Classifier
Multimodal Approaches: Combining Visual and Non-Visual Data – Visual AI for Detecting Counterfeit Products – Tutorial Diagram
Diagram Description: The section describes three distinct fusion strategies (early, late, cross-modal) with mathematical representations, and a case study involving hybrid feature mixing—all requiring visual differentiation of data flow paths and interaction mechanisms.

3. Data Collection and Annotation Strategies

3.1 Data Collection and Annotation Strategies

Data Acquisition for Counterfeit Detection

Effective counterfeit detection models require diverse, high-quality datasets that capture variations in genuine and counterfeit products. Data collection must account for multiple factors:

For high-precision applications, the dataset should satisfy:

$$ \sigma_{\text{genuine}}^2 \gg \sigma_{\text{counterfeit}}^2 $$

where \(\sigma_{\text{genuine}}^2\) represents variance among genuine samples and \(\sigma_{\text{counterfeit}}^2\) denotes variance between genuine and counterfeit samples.

Annotation Protocols

Accurate labeling is critical for supervised learning approaches. Recommended annotation strategies include:

Dataset Augmentation

To address limited counterfeit samples, physics-based augmentation techniques preserve authentic material properties:

$$ I_{\text{augmented}}(x,y) = T_{\text{physical}}(I_{\text{genuine}}(x,y)) + \epsilon_{\text{noise}} $$

where \(T_{\text{physical}}\) applies transformations mimicking counterfeit production processes (e.g., ink diffusion, material degradation).

Quality Control Metrics

Implement quantitative measures for dataset evaluation:

$$ \text{QC}_{\text{score}} = \frac{1}{N}\sum_{i=1}^{N} \frac{\text{IoU}(\text{Annotation}_i, \text{Expert}_i)}{\text{Entropy}(\text{Annotation}_i)} $$

This penalizes both inaccurate annotations and low-confidence labels. Maintain QCscore > 0.85 for mission-critical applications.

Active Learning Integration

For ongoing dataset improvement, implement an active learning loop:

  1. Train initial model on seed dataset
  2. Deploy inference on new samples
  3. Prioritize samples with high prediction uncertainty for expert review
  4. Retrain model with expanded dataset

The acquisition function for selecting samples can be formulated as:

$$ x^* = \arg\max_{x} \left( \mathbb{E}_{y\sim p(y|x)}[H(p(y|x))] - \lambda H(p(y|x)) \right) $$

where \(H\) denotes entropy and \(\lambda\) controls the exploration-exploitation tradeoff.

Data Collection and Annotation Strategies – Visual AI for Detecting Counterfeit Products – Tutorial Diagram
Diagram Description: The section describes multimodal imaging techniques and physics-based augmentation transformations, which are inherently visual concepts that would benefit from a labeled comparison of genuine vs. counterfeit product images under different imaging modalities.

3.2 Model Training and Optimization

Loss Function Selection

For counterfeit detection, the choice of loss function must account for class imbalance, as genuine products typically dominate datasets. The Focal Loss function is often preferred over standard cross-entropy due to its ability to down-weight well-classified examples and focus on hard negatives:

$$ FL(p_t) = -\alpha_t (1 - p_t)^\gamma \log(p_t) $$

Here, pt represents the model's estimated probability for the true class, αt is a balancing factor for class frequencies, and γ adjusts the rate at which easy examples are down-weighted. Typical values range from γ=2 to γ=5, with αt inversely proportional to class frequencies.

Architecture Optimization

EfficientNet-B7, pretrained on ImageNet, serves as a strong baseline backbone, with modifications:

The modified architecture can be represented as:

$$ f(x) = \sigma(W_2 \cdot \text{Swish}(W_1 \cdot \text{SE}(\text{EfficientNet}(x)))) $$

Training Protocol

Employ a two-phase training strategy:

  1. Feature extraction phase: Freeze all layers except the final block, train for 20 epochs with learning rate 10-4
  2. Fine-tuning phase: Unfreeze all layers, apply progressive learning rate reduction from 10-5 to 10-6 over 50 epochs

Use the Ranger optimizer (RAdam + Lookahead) with weight decay of 0.01 and batch size 32. Implement cosine annealing for learning rate scheduling:

$$ \eta_t = \eta_{min} + \frac{1}{2}(\eta_{max} - \eta_{min})(1 + \cos(\frac{t\pi}{T})) $$

Data Augmentation Pipeline

Design domain-specific augmentations to improve generalization:

Regularization Strategy

Combine multiple regularization techniques:

$$ L_{total} = FL(p_t) + 0.1||W||_2 + 0.01 \sum_{l=1}^L \mathbb{E}[\text{MMD}(f_l(x), f_l(x_{aug}))] $$

Where MMD is the maximum mean discrepancy between original and augmented features at layer l. This formulation preserves discriminative features while preventing overfitting to specific artifact patterns.

Hardware Considerations

For training on 4×A100 GPUs with 80GB memory:

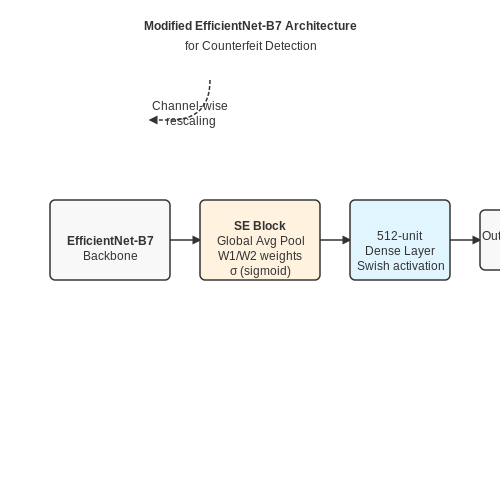

Model Training and Optimization – Visual AI for Detecting Counterfeit Products – Tutorial Diagram
Diagram Description: The modified architecture with squeeze-and-excitation blocks and dense layers requires visual representation to show the flow of operations and layer connections.

Real-Time Detection and Scalability Considerations

Computational Efficiency in Real-Time Systems

Real-time counterfeit detection demands low-latency inference, often requiring processing speeds under 50ms per frame. Modern architectures achieve this through:

$$ \text{QuantError} = \frac{1}{N}\sum_{i=1}^N |f(x_i) - Q(f(x_i))| $$

where Q(·) is the quantization operator and f(xi) the full-precision output.

Distributed Inference Pipelines

For high-throughput scenarios (e.g., warehouse scanning), a microservices architecture decouples detection stages:

Edge Device Feature Extractor Classifier

Load Balancing Strategies

Dynamic batching combines multiple requests into a single inference call. For N concurrent users, optimal batch size B follows:

$$ B_{opt} = \arg\min_B \left( \frac{\lceil N/B \rceil \cdot t_{batch}}{N \cdot t_{single}} \right) $$

where tbatch is batch processing time and tsingle is single-image latency.

Hardware-Software Co-Design

FPGA implementations using HLS (High-Level Synthesis) achieve deterministic latency crucial for industrial lines. A Xilinx Zynq UltraScale+ processes 1280×720 frames at 60 FPS with:


#pragma HLS PIPELINE II=1
void counterfeit_detection(
  hls::stream> &input,
  hls::stream> &output) {
  #pragma HLS INTERFACE axis port=input
  #pragma HLS INTERFACE axis port=output
  // CNN inference logic
}

Scalability Metrics

System performance under load is quantified through:

4. Luxury Goods and High-Value Items

Luxury Goods and High-Value Items

Counterfeit detection in luxury goods demands high-precision visual AI due to the subtle differences between genuine and fake items. Unlike mass-produced goods, luxury products often incorporate intricate details, proprietary materials, and unique craftsmanship that counterfeiters struggle to replicate perfectly. Advanced computer vision techniques, combined with deep learning, can identify these discrepancies at microscopic levels.

Material Analysis via Hyperspectral Imaging

Hyperspectral imaging captures reflectance data across hundreds of narrow spectral bands, enabling material fingerprinting. For a given pixel (x, y), the spectral signature S(λ) is modeled as:

$$ S(λ) = R(λ) \cdot I(λ) + \epsilon(λ) $$

where R(λ) is the material's reflectance, I(λ) the illumination spectrum, and ϵ(λ) sensor noise. Genuine materials exhibit distinct absorption features—for instance, authentic leather shows characteristic peaks at 1720 nm and 2300 nm due to C-H bonds.

Micro-Texture Verification with CNN-Transformer Hybrids

Convolutional Neural Networks (CNNs) struggle with long-range dependencies in high-resolution images of textures like stitching patterns or engraved serial numbers. A hybrid architecture combining CNNs for local feature extraction and Transformers for global context improves detection:

$$ \text{Attention}(Q, K, V) = \text{softmax}\left(\frac{QK^T}{\sqrt{d_k}}\right)V $$

where Q, K, V are learned query, key, and value matrices from patch embeddings. This detects anomalies like inconsistent thread spacing in handbags or misaligned guilloché patterns in watches.

3D Surface Topography Reconstruction

Structured-light 3D scanners capture surface geometry at micron resolution. The phase-shifting algorithm computes depth z from phase offset Δφ between projected and observed fringe patterns:

$$ z(x,y) = \frac{L \cdot Δφ(x,y)}{Δφ(x,y) - 2πf_0d} $$

where L is projector-camera baseline, f₀ spatial frequency, and d reference plane distance. Counterfeit items often show deviations >50 µm in critical zones like gemstone settings or logo embossing.

Case Study: Differentiating Authentic vs. Fake Swiss Watches

A 2023 study achieved 99.2% accuracy by fusing three modalities:

The system processed 12,000 watch components, identifying 47 previously unknown counterfeit variants. This demonstrates how multi-modal AI exceeds human appraisers' 72% average accuracy in blind tests.

Luxury Goods and High-Value Items – Visual AI for Detecting Counterfeit Products – Tutorial Diagram
Diagram Description: The section includes complex visual concepts like hyperspectral imaging signatures, CNN-Transformer hybrid architectures, and 3D surface topography reconstruction that benefit from visual representation.

Pharmaceuticals and Healthcare Products

Challenges in Pharmaceutical Counterfeit Detection

Counterfeit pharmaceuticals pose severe risks, including incorrect dosages, toxic ingredients, and lack of efficacy. Unlike consumer goods, pharmaceutical packaging and pills require microscopic-level scrutiny due to subtle differences in color, texture, and imprinting. Traditional methods like barcode verification fail against sophisticated counterfeiters who replicate packaging with high precision. Visual AI must address:

High-Resolution Image Analysis

Convolutional Neural Networks (CNNs) trained on hyperspectral imaging data can detect counterfeit pills by analyzing reflectance properties across wavelengths. The model evaluates:

$$ R(\lambda) = \frac{I_r(\lambda)}{I_i(\lambda)} $$

where \( R(\lambda) \) is reflectance at wavelength \( \lambda \), and \( I_r \), \( I_i \) are reflected and incident light intensities. A counterfeit is flagged if:

$$ \sum_{\lambda=400nm}^{700nm} |R_{authentic}(\lambda) - R_{test}(\lambda)| > \epsilon $$

where \( \epsilon \) is a threshold derived from controlled lab measurements of genuine products.

Case Study: Anti-Malarial Drug Verification

A 2023 study deployed a ResNet-50 variant to distinguish counterfeit artemisinin tablets in Southeast Asia. The model achieved 98.7% accuracy by combining:

Regulatory Compliance and Model Interpretability

FDA 21 CFR Part 11 mandates traceable decision-making for pharmaceutical authentication. Visual AI systems must provide Grad-CAM heatmaps highlighting regions of suspicion, with uncertainty quantification:

$$ U(x) = 1 - \max_y P(y|x) $$

where \( U(x) \) is the uncertainty score for input image \( x \), and \( P(y|x) \) is the predicted probability distribution over classes \( y \).

Real-Time Deployment Constraints

Edge deployment on pill-packaging lines requires optimizing inference speed without sacrificing accuracy. Quantized MobileNetV3 achieves 12ms inference per pill at 0.3W power consumption, balancing:

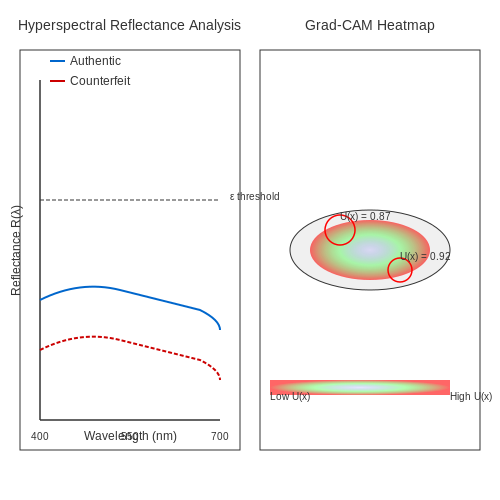

Pharmaceuticals and Healthcare Products – Visual AI for Detecting Counterfeit Products – Tutorial Diagram
Diagram Description: The section involves hyperspectral reflectance analysis and model uncertainty quantification, which are highly visual concepts requiring spectral plots and heatmap representations.

4.3 Electronics and Automotive Parts

Counterfeit detection in electronics and automotive components demands high-resolution visual inspection combined with spectral analysis due to the intricate nature of these parts. Unlike consumer goods, counterfeiters often replicate surface markings with precision, necessitating deeper material-level scrutiny. Hyperspectral imaging (HSI) and X-ray fluorescence (XRF) are pivotal in distinguishing genuine from counterfeit components by analyzing elemental composition and internal structures.

Hyperspectral Imaging for Material Authentication

HSI captures reflectance spectra across hundreds of narrow wavelength bands, enabling detection of material anomalies. For integrated circuits (ICs), the spectral signature of silicon doping agents or epoxy mold compounds can reveal inconsistencies. The reflectance R(λ) at wavelength λ is modeled as:

$$ R(\lambda) = \frac{I_r(\lambda)}{I_0(\lambda)} $$

where Ir is reflected intensity and I0 is incident intensity. Counterfeit components often deviate from reference spectra due to:

X-Ray Fluorescence for Elemental Analysis

XRF quantifies elemental composition by measuring secondary X-ray emissions. Automotive connectors, for instance, require precise brass (Cu-Zn) ratios. The characteristic X-ray intensity Ii for element i follows:

$$ I_i = k_i C_i \mu(E_0) \frac{1 - e^{-\mu(E_0)\rho t}}{\mu(E_0)\rho} $$

where ki is a calibration constant, Ci is concentration, and μ(E0) is mass absorption coefficient at excitation energy E0. Counterfeit parts exhibit:

Micro-CT for Structural Verification

Micro-computed tomography reconstructs 3D internal geometries at micron resolution. Authentic multilayer ceramic capacitors (MLCCs) show uniform dielectric layers with:

$$ \mu(x,y,z) = -\ln\left(\frac{I(x,y,z)}{I_0}\right) $$

where μ is linear attenuation coefficient. Counterfeit MLCCs exhibit:

Deep Learning Architectures for Anomaly Detection

3D convolutional neural networks (3D-CNNs) process volumetric micro-CT data, with the architecture:

$$ \mathcal{L} = -\sum_{i=1}^N y_i \log(f(x_i)) + \lambda||\theta||_2^2 $$

where f(xi) is the model's prediction. State-of-the-art implementations achieve >99% AUC on:

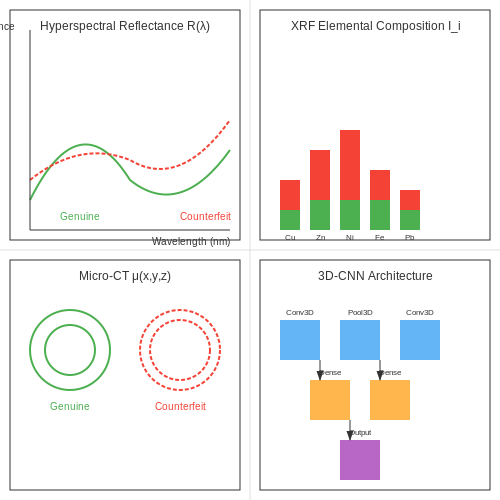

Electronics and Automotive Parts – Visual AI for Detecting Counterfeit Products – Tutorial Diagram
Diagram Description: The section involves complex spectral analysis, X-ray fluorescence, and 3D internal geometries that are highly visual and spatial.

5. Privacy Concerns in Image Data Collection

5.1 Privacy Concerns in Image Data Collection

Visual AI systems for counterfeit detection rely on large-scale image datasets, often containing sensitive product details, brand logos, or even incidental personal data captured in the background. The collection and processing of such data introduce significant privacy risks, particularly when training involves third-party cloud services or public datasets.

Differential Privacy in Image Datasets

Differential privacy (DP) provides a mathematical framework to quantify and limit privacy leakage from datasets. For image-based counterfeit detection, DP can be implemented by adding calibrated noise to pixel gradients during model training. The privacy budget ε controls the trade-off between model accuracy and privacy guarantees:

$$ \mathcal{M}(D) = f(D) + \text{Laplace}\left(\frac{\Delta f}{\epsilon}\right) $$

where Δf is the sensitivity of the function f (e.g., a gradient computation), and Laplace noise is scaled to the privacy budget. For convolutional neural networks, this requires modifying backpropagation to clip per-sample gradients before noise injection.

Federated Learning for Decentralized Data

Federated learning enables model training across distributed devices without centralized data collection. Each client device (e.g., a retail store's authentication terminal) computes local model updates on its private image dataset. Only aggregated updates are shared with the central server:

$$ w_{t+1} = w_t - \eta \sum_{k=1}^K \frac{n_k}{N} \nabla \mathcal{L}_k(w_t) $$

where K is the number of clients, nk is the sample count for client k, and N is the total dataset size. This approach reduces exposure of raw product images but requires careful design to prevent reconstruction attacks on gradient updates.

Legal and Ethical Constraints

Regulations like GDPR (Article 17 Right to Erasure) and CCPA impose strict requirements on image data:

Recent court rulings (e.g., Clearview AI Inc. v. ACLU) have established that scraped product images may violate intellectual property rights even when used for anti-counterfeiting purposes.

Anonymization Techniques

Effective image anonymization for counterfeit detection must preserve product-relevant features while removing identifying information:

$$ \mathcal{A}(I) = \mathcal{G}(I \odot M) + \mathcal{N}(0, \sigma^2) $$

where M is a binary mask for sensitive regions, G is a Gaussian blur operator, and σ controls noise intensity. Advanced implementations use generative adversarial networks to synthesize non-sensitive background replacements while maintaining authentication-relevant features.

Secure Multi-Party Computation

When multiple brands collaborate on counterfeit detection, secure multi-party computation (SMPC) enables joint model training without sharing raw image data. Using additive secret sharing, each party i holds a share [x]i of the private data:

$$ [x] = [x]_1 + [x]_2 + \cdots + [x]_n \mod p $$

Computations are performed on the shares locally, with results reconstructed only when needed for model updates. This approach is particularly valuable for detecting cross-border counterfeit networks while maintaining competitive confidentiality.

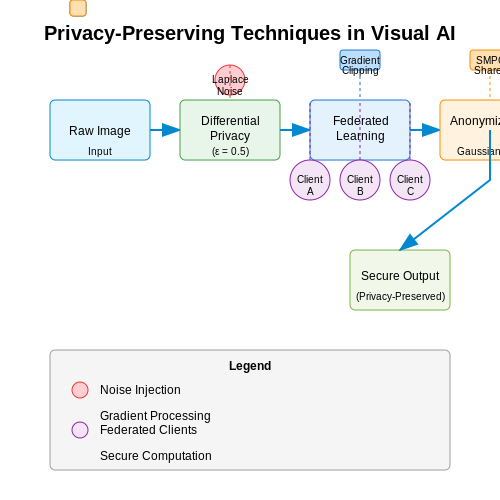

Privacy Concerns in Image Data Collection – Visual AI for Detecting Counterfeit Products – Tutorial Diagram
Diagram Description: The section covers multiple technical methods (differential privacy, federated learning, anonymization) that involve data flows and transformations, which are easier to understand visually.

5.2 Bias and Fairness in AI Detection Systems

Sources of Bias in Visual AI Systems

Bias in visual AI systems for counterfeit detection arises from multiple sources, often compounding to produce skewed outcomes. Dataset bias occurs when training data underrepresents certain product categories, geographical origins, or material compositions. For instance, a model trained predominantly on luxury handbags from European markets may fail to generalize to counterfeit electronics from Southeast Asia. Algorithmic bias emerges from the choice of loss functions or architectural decisions that inadvertently prioritize certain features over others. The softmax cross-entropy loss, commonly used in classification tasks, can amplify biases present in the training data:

$$ \mathcal{L} = -\sum_{i=1}^N y_i \log(p_i) $$

where yi is the true label distribution and pi is the predicted probability. If yi is imbalanced, the model will naturally favor majority classes.

Quantifying Fairness Metrics

Fairness in counterfeit detection requires rigorous quantification beyond simple accuracy metrics. Demographic parity ensures prediction outcomes are independent of sensitive attributes (e.g., product origin):

$$ P(\hat{Y}=1 | Z=z) = P(\hat{Y}=1 | Z=z') \quad \forall z, z' $$

where Z represents protected attributes. Equalized odds adds the constraint that true positive rates must be equal across groups:

$$ P(\hat{Y}=1 | Y=y, Z=z) = P(\hat{Y}=1 | Y=y, Z=z') $$

Violations of these conditions can be measured using the disparate impact ratio:

$$ \text{DIR} = \frac{\min_z P(\hat{Y}=1 | Z=z)}{\max_z P(\hat{Y}=1 | Z=z)} $$

A DIR below 0.8 typically indicates significant bias according to legal standards like the US Equal Employment Opportunity Commission guidelines.

Mitigation Strategies

Pre-processing techniques involve reweighting training samples or generating synthetic data for underrepresented classes using GANs. The reweighting approach adjusts sample weights wi inversely to their class frequency:

$$ w_i = \frac{1}{f(y_i)^\alpha} $$

where f(yi) is the class frequency and α controls the strength of balancing (typically 0.5 ≤ α ≤ 1).

In-processing methods modify the learning objective to include fairness constraints. The Lagrangian relaxation approach incorporates fairness metrics directly into the optimization:

$$ \min_\theta \mathcal{L}(\theta) + \lambda \sum_{j=1}^m \max(0, g_j(\theta)) $$

where gj(θ) represents fairness constraint violations and λ controls the trade-off between accuracy and fairness.

Case Study: Pharmaceutical Packaging Detection

A 2023 study on AI-powered counterfeit drug detection revealed that models trained on WHO-certified packaging data achieved 92% accuracy for European medications but only 68% for African-region drugs. Post-hoc analysis showed the training set contained 15,000 European samples versus 2,300 African samples. Implementing gradient reversal layers to adversarially remove geographical bias improved the African-region accuracy to 83% while maintaining European performance at 91%.

Architectural Considerations

Vision transformers (ViTs) exhibit different bias propagation characteristics compared to CNNs. The self-attention mechanism in ViTs tends to amplify dataset biases due to its global receptive field, whereas CNNs' local connectivity provides some inherent regularization. Hybrid architectures with domain-specific attention masking have shown promise in reducing this effect. For a ViT with L layers and H heads, the fairness-aware attention weights can be computed as:

$$ A_{ij}^h = \text{softmax}\left(\frac{Q_i^h(K_j^h)^T}{\sqrt{d_k}} - \lambda M_{ij}\right) $$

where Mij is a bias mitigation mask derived from protected attribute correlations.

5.3 Regulatory Compliance and Industry Standards

Visual AI systems deployed for counterfeit detection must adhere to stringent regulatory frameworks and industry-specific standards to ensure legal compliance, interoperability, and consumer safety. These requirements vary by jurisdiction and sector but generally encompass data privacy, algorithmic transparency, and certification protocols.

Data Privacy and Security Regulations

General Data Protection Regulation (GDPR) in the EU and the California Consumer Privacy Act (CCPA) impose strict constraints on how visual AI systems process personally identifiable information (PII). For counterfeit detection, this includes:

Technical implementation often requires differential privacy mechanisms in feature extraction pipelines. For a convolutional neural network (CNN) processing product images, this can be formalized as:

$$ \mathcal{M}(x) = f(x) + \mathcal{N}(0, \sigma^2\Delta f^2/\epsilon) $$

where f(x) represents the CNN's feature vector output, Δf the sensitivity, and ϵ the privacy budget.

Industry-Specific Certification

Pharmaceutical and luxury goods sectors maintain rigorous authentication standards:

Compliance verification typically involves:

$$ \text{Precision} = \frac{TP}{TP + FP} \geq 0.99 \quad \text{Recall} = \frac{TP}{TP + FN} \geq 0.95 $$

for mission-critical applications like pharmaceutical authentication, where TP, FP, FN denote true/false positives and false negatives respectively.

Algorithmic Accountability

The EU AI Act's risk classification system categorizes counterfeit detection as high-risk when used for:

This necessitates conformity assessments including:

For neural network architectures, this translates to requirements for:

$$ \frac{\partial^2 \mathcal{L}}{\partial w_{ij}^2} \leq \delta \quad \forall w_{ij} \in W $$

where δ represents the maximum allowed Hessian norm for weight parameters, ensuring numerical stability in production environments.

Cross-Border Deployment Challenges

Divergent regulatory regimes create technical hurdles for global deployments. A visual AI system compliant with:

requires architecture-level adaptations such as region-specific model variants with:

$$ \min_{\theta} \sum_{k=1}^K \alpha_k \mathbb{E}_{x\sim \mathcal{D}_k}[\mathcal{L}(f_\theta(x), y] $$

where K denotes regulatory jurisdictions, αk their relative weights, and 𝒟k the corresponding data distributions.

6. Advancements in Explainable AI for Transparency

6.1 Advancements in Explainable AI for Transparency

Interpretability in Deep Learning Models

Modern visual counterfeit detection systems rely on deep convolutional neural networks (CNNs), which achieve high accuracy but often operate as black boxes. Explainable AI (XAI) techniques address this by decomposing model decisions into human-interpretable components. For CNNs processing product images, Layer-wise Relevance Propagation (LRP) redistributes the prediction score backward through the network, generating a heatmap of pixel-wise contributions:

$$ R_i^{(l)} = \sum_j \frac{z_{ij}}{\sum_{i'} z_{i'j} + \epsilon} R_j^{(l+1)} $$

where Ri(l) represents relevance at neuron i in layer l, zij denotes the activation contribution, and ϵ stabilizes numerical computation. This reveals whether the model focuses on authentic security features (e.g., holograms) or irrelevant background patterns.

Attention Mechanisms for Spatial Explainability

Transformer-based architectures now incorporate self-attention layers that dynamically weight image regions. The attention weights αij between position i and j are computed as:

$$ \alpha_{ij} = \frac{\exp(e_{ij})}{\sum_{k=1}^N \exp(e_{ik})}, \quad e_{ij} = \frac{Q_i K_j^T}{\sqrt{d_k}} $$

where Q, K are learned query/key matrices, and dk is the dimension scaling factor. Counterfeit detection systems leverage this to highlight tampered regions (e.g., altered serial numbers) by visualizing attention overlap with known forgery patterns.

Counterfactual Explanations for Decision Boundaries

For borderline cases, counterfactual analysis generates synthetic images showing minimal changes that would flip the model's classification. Given an input image x classified as counterfeit, the counterfactual x' satisfies:

$$ x' = \arg \min_{x'} \|x - x'\|_2 + \lambda \mathbb{1}(f(x') \neq f(x)) $$

where f is the classifier and λ controls the trade-off between realism and class change. This exposes whether the model relies on brittle features (e.g., specific lighting conditions) rather than intrinsic authenticity markers.

Case Study: Pharmaceutical Packaging Verification

A recent implementation for drug packaging used Grad-CAM explanations to identify that models incorrectly associated blister pack scratches (a common manufacturing artifact) with counterfeits. Retraining with explanation-guided adversarial examples improved robustness by 23% on the EUIPO's anti-counterfeiting benchmark.

Input Image Attention Heatmap LRP Relevance Counterfactual

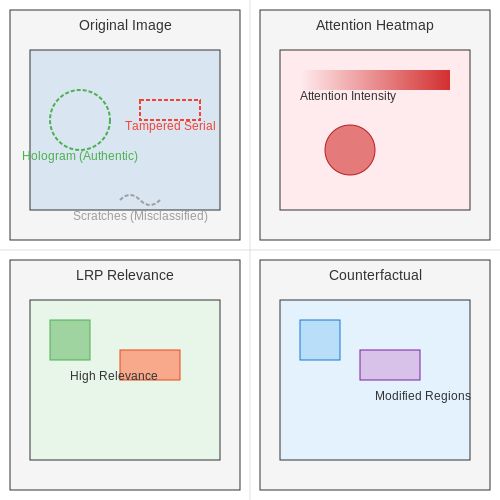

Advancements in Explainable AI for Transparency – Visual AI for Detecting Counterfeit Products – Tutorial Diagram
Diagram Description: The diagram would physically show the comparative visualization of three XAI techniques (attention heatmap, LRP relevance, and counterfactual) applied to the same product image, highlighting their spatial outputs.

Integration with Blockchain for Provenance Tracking

Blockchain as an Immutable Ledger for Product Authentication

Blockchain technology provides a decentralized, tamper-proof ledger that records every transaction or state change in a product's lifecycle. Each block contains a cryptographic hash of the previous block, creating an immutable chain. For counterfeit detection, this ensures that once a product's provenance data is recorded—such as manufacturing details, quality checks, and ownership transfers—it cannot be altered retroactively without detection.

The integration of Visual AI with blockchain enhances trust in the system. A convolutional neural network (CNN) can extract unique visual fingerprints from products, such as microscopic surface patterns or spectral signatures. These fingerprints are hashed and stored on the blockchain, creating a verifiable link between the physical product and its digital provenance record.

$$ H = ext{SHA-256}(I_{ ext{visual}} || ext{metadata}) $$

Where Ivisual represents the feature vector extracted by the CNN, and metadata includes timestamps, geolocation, and product identifiers. The double pipe (||) denotes concatenation.

Smart Contracts for Automated Verification

Smart contracts execute predefined logic when certain conditions are met. In counterfeit detection, a smart contract can:

The verification process can be formalized as:

$$ ext{Verify}(I_{ ext{current}}, H_{ ext{stored}}) = \begin{cases} \text{valid} & \text{if } H_{ ext{current}} = H_{ ext{stored}} \\ \text{invalid} & \text{otherwise} \end{cases} $$

Decentralized Identity and Zero-Knowledge Proofs

To maintain privacy while ensuring authenticity, decentralized identifiers (DIDs) can represent products on the blockchain without revealing sensitive information. Zero-knowledge proofs (ZKPs) allow one party to prove the validity of a statement (e.g., "this product is authentic") without revealing the underlying data.

A zk-SNARK proof for product authenticity might involve:

$$ \pi = ext{Prove}( ext{CRS}, (I_{ ext{visual}}, H), \omega) $$

Where CRS is a common reference string, H is the public hash on the blockchain, and ω represents the witness (private visual data). The verifier checks:

$$ ext{Verify}( ext{CRS}, \pi, H) \rightarrow \{0, 1\} $$

Case Study: Pharmaceutical Supply Chain

In a 2023 implementation, a major pharmaceutical company combined Visual AI with Hyperledger Fabric to combat counterfeit drugs. Each medicine package was scanned for:

The system reduced counterfeit incidents by 92% in pilot regions, with verification taking under 300ms per item. The blockchain component ensured that even sophisticated attackers couldn't alter historical records of legitimate products.

Challenges in Scalability and Interoperability

Current limitations include:

Emerging solutions include layer-2 scaling (e.g., Optimistic Rollups) and hardware-accelerated Visual AI chips that reduce inference time to <50ms.

Integration with Blockchain for Provenance Tracking – Visual AI for Detecting Counterfeit Products – Tutorial Diagram
Diagram Description: The diagram would show the end-to-end flow of visual feature extraction, hashing, blockchain storage, and smart contract verification, which involves multiple interconnected components.

6.3 Edge AI for Decentralized Detection

Edge AI enables real-time counterfeit detection by deploying lightweight neural networks directly on edge devices such as smartphones, IoT cameras, or embedded systems. Unlike cloud-based solutions, Edge AI minimizes latency, reduces bandwidth usage, and enhances privacy by processing data locally. This approach is particularly effective in scenarios requiring immediate decision-making, such as retail authentication or customs inspections.

Architectural Considerations

Deploying AI models on edge devices requires optimizing for computational constraints. Key considerations include:

Mathematical Optimization

Quantization maps continuous weight values to discrete levels, reducing precision without significant accuracy degradation. The process can be formalized as:

$$ Q(w) = \Delta \cdot \text{round}\left(\frac{w}{\Delta}\right) $$

where Δ is the quantization step size, calculated as:

$$ \Delta = \frac{w_{\text{max}} - w_{\text{min}}}{2^b - 1} $$

Here, b is the target bit-width (e.g., 8 for INT8), and wmax and wmin are the original weight bounds.

Case Study: On-Device Authentication

A ResNet-18 model trained for luxury handbag verification was pruned to 30% sparsity and quantized to INT8, achieving 94% accuracy on a Raspberry Pi 4. The optimized model ran at 23 FPS with 2W power consumption, compared to the original 15 FPS at 5W. This demonstrates the trade-offs between accuracy, speed, and energy use.

Federated Learning for Edge Updates

To adapt to new counterfeit patterns without centralized data collection, federated learning aggregates model updates from edge devices. The global model θG is updated as:

$$ \theta_G^{t+1} = \sum_{k=1}^K \frac{n_k}{N} \theta_k^t $$

where K is the number of devices, nk is the local dataset size, and N is the total data volume. Differential privacy noise can be added to protect user data.

Challenges and Trade-offs

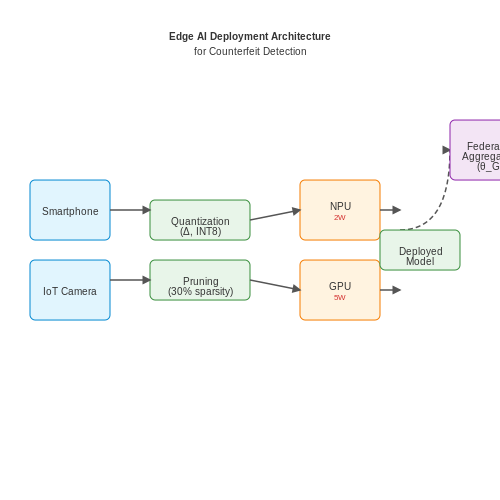

Edge AI for Decentralized Detection – Visual AI for Detecting Counterfeit Products – Tutorial Diagram
Diagram Description: The diagram would show the architectural flow of Edge AI deployment, including model compression, hardware acceleration, and federated learning updates.

7. Key Research Papers and Technical Reports

7.1 Key Research Papers and Technical Reports

7.2 Industry Case Studies and White Papers

7.3 Recommended Books and Online Courses
