Celsius Thermometer
The Celsius thermometer circuit utilizes the LM334 integrated circuit, which is a current source designed for precision applications. The LM334 operates effectively in a temperature range suitable for Celsius measurements, making it an ideal choice for temperature sensing applications. The circuit typically includes additional components such as resistors and capacitors, which help to set the reference current and stabilize the output signal.
To construct the circuit, the LM334 is connected to a thermistor or a temperature sensor that varies its resistance with temperature changes. The output voltage from the LM334 is proportional to the temperature, allowing for accurate Celsius readings. Calibration may be necessary to ensure that the output voltage corresponds correctly to the temperature scale.
The circuit may also feature an operational amplifier to enhance the output signal, providing a clearer reading on a display or an analog meter. Proper power supply decoupling and layout considerations are crucial for minimizing noise and ensuring the accuracy of the temperature readings.

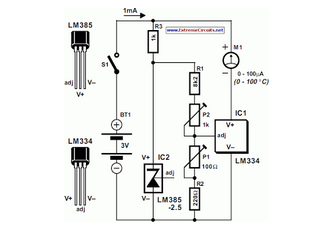

Overall, this LM334-based Celsius thermometer circuit is a reliable and effective solution for measuring temperature in various applications, from laboratory settings to environmental monitoring.The circuit of the Celsius thermometer in the diagram is based on the well-known Type LM334 from National Semiconductor. This IC is a sensor that provides.. 🔗 External reference
