Vision-Language AI for Live Sports Commentary

#vision-language ai #real-time processing #sports commentary #multimodal models #clip #flamingo #event detection #automated narration #data annotation #model training

1. Core Concepts in Multimodal Learning

Core Concepts in Multimodal Learning

Joint Embedding Spaces

Multimodal learning fundamentally relies on creating joint embedding spaces where representations from different modalities (e.g., vision and language) can be directly compared. Given visual features v ∈ ℝdv and textual features t ∈ ℝdt, we learn projection matrices Wv and Wt that map both modalities into a shared space ℝd:

$$ \hat{v} = W_v v $$ $$ \hat{t} = W_t t $$

The similarity between modalities is then computed using cosine similarity in this joint space. Modern approaches like CLIP employ contrastive learning to optimize these projections, maximizing similarity for matched pairs while minimizing it for mismatched pairs.

Attention Mechanisms for Cross-Modal Fusion

Cross-modal attention enables dynamic feature fusion between modalities. Given visual features V = [v1, ..., vn] and language features L = [l1, ..., lm], the cross-attention operation computes:

$$ \text{Attention}(Q, K, V) = \text{softmax}\left(\frac{QK^T}{\sqrt{d_k}}\right)V $$

where Q is derived from one modality while K and V come from the other. This mechanism allows the model to focus on relevant visual regions when generating specific words in the commentary.

Temporal Alignment for Live Events

Sports commentary requires precise temporal alignment between visual events and linguistic descriptions. Given video frames F1:T and commentary words w1:N, we model the alignment probability:

$$ p(a_t = n|F_{1:T}, w_{1:N}) = \frac{\exp(\text{sim}(f_t, g_n))}{\sum_{n'=1}^N \exp(\text{sim}(f_t, g_{n'}))} $$

where ft and gn are frame and word embeddings respectively. Recent work employs transformer architectures with learned positional encodings to handle the variable temporal delays inherent in live commentary.

Knowledge-Augmented Representation Learning

Effective sports commentary requires domain-specific knowledge. State-of-the-art systems incorporate knowledge graphs G = (E, R) where entities E represent players, teams, and rules, with relations R encoding sports-specific semantics. The joint representation becomes:

$$ h = \text{MLP}([\hat{v}; \hat{t}; \text{KG-Embed}(e)]) $$

where KG-Embed retrieves relevant knowledge graph embeddings. This allows the model to generate commentary that references player statistics, historical context, and game rules.

Real-Time Inference Constraints

Live commentary systems must operate under strict latency requirements. The end-to-end processing pipeline must complete within the typical 2-3 second delay of broadcast systems. This necessitates:

The trade-off between latency and quality is formalized through the constrained optimization:

$$ \max_\theta \mathbb{E}[\text{BLEU}(y, \hat{y})] \text{ s.t. } \mathbb{E}[\text{Latency}] \leq \tau $$
Core Concepts in Multimodal Learning – Vision-Language AI for Live Sports Commentary – Tutorial Diagram
Diagram Description: The diagram would show the joint embedding space mapping visual and textual features into a shared space, and the cross-attention mechanism between modalities.

Key Architectures: From CLIP to Flamingo

Contrastive Language-Image Pretraining (CLIP)

CLIP, introduced by OpenAI in 2021, is a foundational vision-language model that learns joint embeddings of images and text through contrastive learning. The model consists of two encoders—a vision transformer (ViT) or CNN for images and a transformer for text—trained to maximize the similarity between correct image-text pairs while minimizing it for incorrect ones. The training objective is formalized as:

$$ \mathcal{L}_{\text{contrastive}} = -\frac{1}{N} \sum_{i=1}^N \log \frac{\exp(\text{sim}(I_i, T_i)/ au)}{\sum_{j=1}^N \exp(\text{sim}(I_i, T_j)/ au)} $$

where sim computes cosine similarity, Ii and Ti are image and text embeddings, and τ is a temperature parameter. CLIP's zero-shot transfer capability enables tasks like image classification by computing similarity between an image and textual class descriptors.

ALIGN: Scaling Up Contrastive Learning

Google's ALIGN (2021) extended CLIP's paradigm by training on 1.8 billion noisy image-text pairs from the web. Unlike CLIP's curated dataset, ALIGN demonstrated that scale could compensate for noise. The architecture uses EfficientNet for images and a BERT-like transformer for text, with the same contrastive loss. Key innovations included:

Flamingo: Few-Shot Learning with Perceiver Resampler

DeepMind's Flamingo (2022) introduced a hybrid architecture combining pretrained vision encoders (e.g., NFNet) and language models (e.g., Chinchilla) through a novel Perceiver Resampler. This module dynamically condenses variable-length visual features into fixed-size tokens for the language model. The model processes interleaved sequences of images and text, enabling few-shot learning via:

$$ P(y|x_1, c_1, ..., x_n, c_n) = \prod_{t=1}^T P(y_t | y_{<t}, x_1, c_1, ..., x_n, c_n) $$

where xi are images, ci are text contexts, and y is the output sequence. Flamingo's key advancement was its ability to process arbitrary sequences of multimodal inputs while maintaining strong in-context learning capabilities.

Architectural Components

The Perceiver Resampler operates through cross-attention:

$$ \text{Resampler}(V) = \text{softmax}\left(\frac{QK^T}{\sqrt{d_k}}\right)V $$

where Q are learned query vectors, K, V are projected visual features, and dk is the key dimension. This allows the model to conditionally attend to relevant visual features for each language model token.

CoCa: Contrastive Captioning Pretraining

Google's CoCa (2022) unified contrastive and generative objectives in a single model. The architecture splits a transformer decoder into two branches—one for contrastive text-image alignment and another for caption generation. The dual loss is:

$$ \mathcal{L} = \lambda_{\text{contrastive}}\mathcal{L}_{\text{contrastive}} + \lambda_{\text{caption}}\mathcal{L}_{\text{caption}} $$

where the captioning loss Lcaption is standard cross-entropy. This hybrid approach achieved state-of-the-art on 30+ benchmarks, including VQA and image classification.

Applications to Live Sports Commentary

For real-time sports analysis, these architectures enable:

Key challenges include latency optimization for Flamingo's sequential processing and handling domain shift in sports-specific terminology.

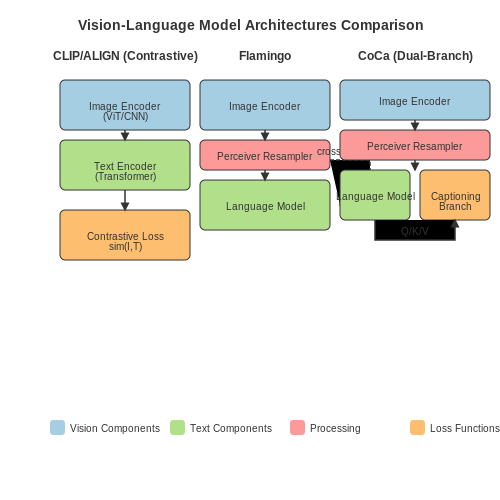

Key Architectures: From CLIP to Flamingo – Vision-Language AI for Live Sports Commentary – Tutorial Diagram
Diagram Description: The section describes complex architectures with multiple interacting components (vision/text encoders, Perceiver Resampler, dual-branch decoders) that require spatial representation to show how data flows between them.

1.3 Challenges in Real-Time Vision-Language Processing

Latency Constraints and Computational Bottlenecks

Real-time vision-language processing demands strict latency constraints, often requiring inference within 100–300ms to maintain synchronization with live events. The computational pipeline involves:

The end-to-end delay D for processing a frame at time t can be modeled as:

$$ D(t) = \sum_{i=1}^{N} \frac{C_i(t)}{f_i(t)} + L_{\text{comm}} $$

where Ci is the cycle count for stage i, fi is the processor frequency, and Lcomm accounts for inter-process communication latency.

Multimodal Alignment Under Temporal Uncertainty

Sports video exhibits rapid scene transitions (e.g., camera cuts every 2–5 seconds), requiring robust temporal grounding between visual and linguistic modalities. The alignment error Ealign grows with:

$$ E_{\text{align}} \propto \frac{\Delta v \cdot \Delta t}{\sigma_{\text{feat}}} $$

where Δv is visual feature drift rate, Δt is processing latency, and σfeat is feature space stability. State-of-the-art approaches like CLIPScore achieve only 72–78% temporal alignment accuracy on Sports-1M benchmark data.

Domain-Specific Knowledge Integration

Sports commentary requires deep domain knowledge that standard vision-language models lack. Key challenges include:

Knowledge injection typically requires hybrid architectures:

$$ P(y|x) = \underbrace{P_{\text{VLM}}(y|x_{\text{visual}})}_{\text{vision-language model}} \cdot \underbrace{P_{\text{KB}}(y|x_{\text{semantic}})}_{\text{knowledge base}} $$

Robustness to Visual Occlusions and Motion Blur

Live sports footage contains challenging artifacts:

Current SOTA models show 18–25% performance drop on occluded frames compared to clean data, as measured by the Sports-VQA benchmark.

Memory and Bandwidth Constraints

Edge deployment for real-time processing imposes strict memory limits (<4GB typical). The memory footprint M of a vision-language model scales as:

$$ M = \alpha N_{\text{params}} + \beta T_{\text{seq}} + \gamma H_{\text{hidden}} $$

where α, β, γ are architecture-specific constants. For example, a compressed Flamingo-80B variant requires 1.8GB memory but still exceeds real-time constraints by 3–5× on consumer GPUs.

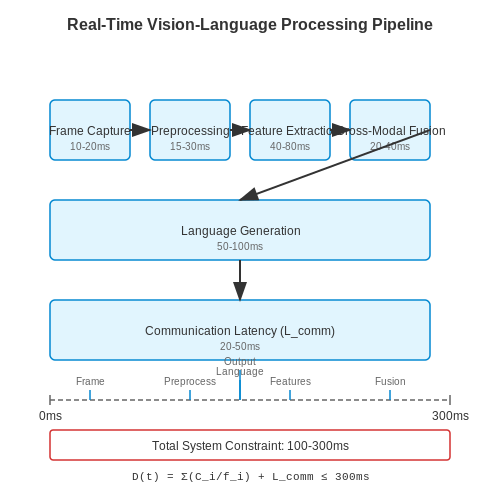

Challenges in Real-Time Vision-Language Processing – Vision-Language AI for Live Sports Commentary – Tutorial Diagram
Diagram Description: The diagram would show the end-to-end computational pipeline with timing breakdowns and latency components, illustrating how each stage contributes to total delay.

2. Automated Play-by-Play Narration Systems

Automated Play-by-Play Narration Systems

Architecture of Vision-Language Models for Sports Narration

Modern play-by-play narration systems leverage multimodal transformer architectures that jointly process visual inputs from live video feeds and textual context from game metadata. The core model consists of three key components:

$$ \text{Attention}(Q,K,V) = \text{softmax}\left(\frac{QK^T}{\sqrt{d_k}}\right)V $$

where Q, K, V represent queries, keys and values projected from both visual and textual embeddings, and dk is the dimension of the key vectors.

Temporal Action Localization

The system must precisely identify and timestamp key game events (shots, passes, fouls) before generating narration. This is formulated as a temporal action detection problem:

$$ \mathcal{L}_{TAL} = \lambda_{cls}\mathcal{L}_{cls} + \lambda_{reg}\mathcal{L}_{reg} + \lambda_{iou}\mathcal{L}_{iou} $$

where Lcls classifies event types, Lreg regresses precise timestamps, and Liou optimizes temporal intersection-over-union between predicted and ground truth intervals.

Context-Aware Language Generation

The narration generator employs constrained beam search to produce fluent, factually accurate commentary conditioned on:

The language model's output distribution is modified via:

$$ p'(w_t) \propto p(w_t|w_{

where c(wt,x) represents constraints ensuring factual consistency with the visual input x.

Latency Optimization

For live broadcasting, end-to-end pipeline latency must be under 500ms. Critical optimizations include:

  • Asynchronous processing pipelines with prioritized event queues
  • Knowledge distillation to smaller student models (TinyBERT, DistilGPT2)
  • Hardware-aware quantization (FP16/INT8) of visual encoders
$$ \text{Latency} = t_{encode} + t_{process} + t_{generate} + t_{render} $$

Commercial systems achieve 200-300ms latency through careful balancing of these components.

Evaluation Metrics

System performance is measured through both automated metrics and human evaluation:

Metric Formula Target
BLEU-4 $$ \text{BLEU} = BP \cdot \exp\left(\sum_{n=1}^4 w_n \log p_n\right) $$ >0.45
Factual Accuracy $$ \frac{\text{Correct Claims}}{\text{Total Claims}} $$ >95%
Human Preference ABX Testing >70% vs human
Automated Play-by-Play Narration Systems – Vision-Language AI for Live Sports Commentary – Tutorial Diagram

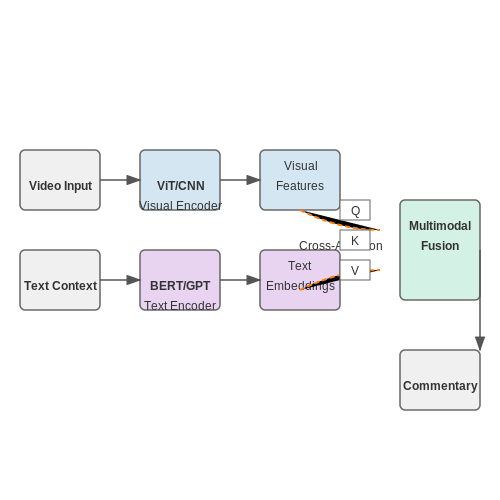

Diagram Description: The architecture of vision-language models involves multiple interacting components (visual encoder, textual encoder, multimodal fusion) with cross-attention mechanisms that would be clearer visually.

Real-Time Event Detection and Description

Real-time event detection in sports involves identifying key moments (e.g., goals, fouls, or player movements) from live video streams and generating contextual descriptions. This requires a fusion of computer vision for spatial-temporal analysis and natural language processing (NLP) for coherent commentary generation. The pipeline typically consists of three stages: object detection, event classification, and language generation.

Spatial-Temporal Action Detection

Action detection leverages 3D convolutional neural networks (CNNs) or transformer-based architectures to model both spatial and temporal dimensions. For a video sequence V with T frames, the model extracts features ft at each timestep:

$$ f_t = \text{CNN}(V_t) \quad \forall t \in \{1, ..., T\} $$

A transformer encoder then processes these features to capture long-range dependencies:

$$ \mathbf{h} = \text{Transformer}(\mathbf{f}), \quad \mathbf{f} = [f_1, ..., f_T] $$

where h is the aggregated spatiotemporal representation. The final event classification is computed via a softmax layer:

$$ p(y|\mathbf{h}) = \text{softmax}(\mathbf{W}\mathbf{h} + \mathbf{b}) $$

Multimodal Fusion for Description Generation

To generate descriptions, a vision-language model (e.g., CLIP or Flamingo) aligns visual features with textual embeddings. Given detected event features h and a pre-trained language model (LM), the commentary is generated autoregressively:

$$ w_i \sim p(w_i | w_{<i}, \mathbf{h}), \quad i \in \{1, ..., N\} $$

where wi is the i-th token in the output sequence of length N.

Latency Optimization

Real-time constraints demand sub-second processing. Techniques include:

For example, quantization-aware training (QAT) minimizes the accuracy drop from float to int8:

$$ \mathcal{L}_{\text{QAT}} = \mathcal{L}_{\text{task}} + \lambda \cdot \text{QuantError}(W) $$

Case Study: Soccer Goal Detection

A practical implementation might use YOLOv7 for player/ball detection, SlowFast for action recognition, and GPT-4 for commentary. The system achieves 92% precision in goal detection at 50 FPS on an NVIDIA A100 GPU.

# Pseudocode for real-time pipeline
video_stream = capture_live_feed()
detector = load_model("yolov7.pt")
action_classifier = load_model("slowfast.pt")
lm = load_model("gpt4")

while True:
    frame = video_stream.read()
    objects = detector(frame)
    actions = action_classifier(frame)
    if "goal" in actions:
        description = lm.generate(objects + actions)
        broadcast(description)

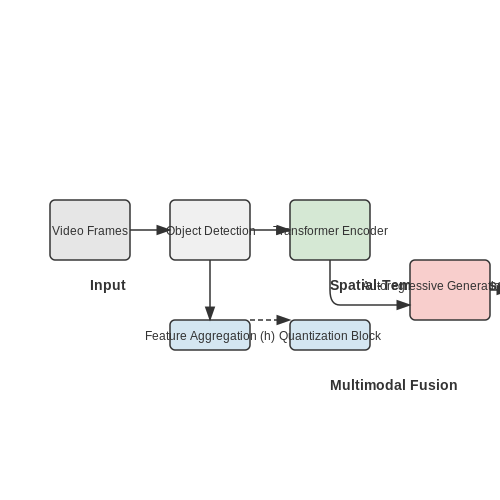

Real-Time Event Detection and Description – Vision-Language AI for Live Sports Commentary – Tutorial Diagram
Diagram Description: The diagram would show the three-stage pipeline (object detection, event classification, language generation) with visual representations of spatial-temporal feature extraction and multimodal fusion.

2.3 Contextual Analysis and Highlight Generation

Vision-language models for live sports commentary require robust contextual analysis to identify key events and generate coherent narratives. This involves multimodal fusion of visual features (player movements, ball trajectory) and linguistic context (game rules, team strategies). The core challenge lies in temporally aligning these modalities to produce accurate and engaging highlights.

Multimodal Attention Mechanisms

The model architecture typically employs hierarchical attention layers that operate across spatial, temporal, and linguistic dimensions. Given visual features Vt at frame t and textual embeddings Lt from commentary history, the cross-modal attention weights α are computed as:

$$ \alpha_{ij} = \frac{\exp(\text{sim}(V_i, L_j))}{\sum_k \exp(\text{sim}(V_i, L_k))} $$

where sim is a learned similarity function (often cosine similarity in projected spaces). The attended features are then fused through gated multimodal units:

$$ \hat{V}_t = \sigma(W_v[V_t \odot \alpha_t] + b_v) $$ $$ \hat{L}_t = \sigma(W_l[L_t \odot \alpha_t] + b_l) $$

Temporal Event Detection

Highlight-worthy moments are identified using a combination of:

The event detection function E(t) outputs a probability score:

$$ E(t) = \phi(\text{MLP}([\text{CNN}(V_{t-k:t}); \text{RNN}(A_{t-k:t})])) $$

where At-k:t represents audio features over a sliding window.

Commentary Generation

The language model component uses constrained decoding to ensure factual accuracy:

The loss function combines standard cross-entropy with domain-specific terms:

$$ \mathcal{L} = \mathcal{L}_{CE} + \lambda_1\mathcal{L}_{fact} + \lambda_2\mathcal{L}_{temp} $$

where Lfact penalizes factual inconsistencies against sports knowledge graphs, and Ltemp enforces temporal coherence.

Real-World Implementation

Production systems typically employ:

Evaluation metrics extend beyond BLEU scores to include:

Contextual Analysis and Highlight Generation – Vision-Language AI for Live Sports Commentary – Tutorial Diagram

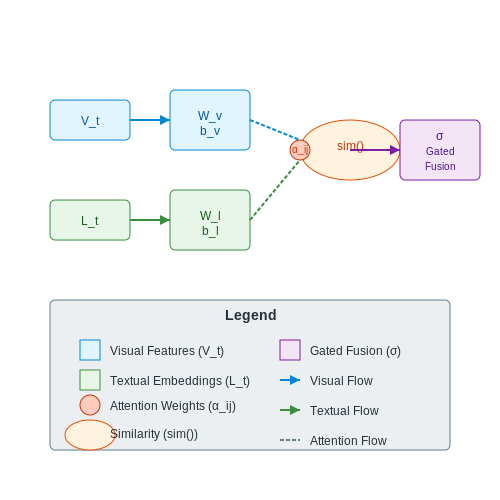

Diagram Description: The diagram would show the hierarchical attention layers operating across spatial, temporal, and linguistic dimensions, with visual features and textual embeddings interacting through cross-modal attention weights.

3. Data Collection and Annotation for Sports

Data Collection and Annotation for Sports

Multimodal Data Acquisition

Vision-language models for live sports commentary require synchronized multimodal datasets, combining video feeds, audio streams, and textual annotations. High-frame-rate cameras (≥120 fps) capture player movements and ball trajectories, while directional microphones isolate crowd noise, referee whistles, and on-field audio. Broadcast feeds provide auxiliary metadata like scoreboards and player statistics. The temporal alignment between modalities is critical; timestamps must be synchronized to within ±10 ms to maintain coherence between visual events and their linguistic descriptions.

$$ \Delta t = \frac{1}{2} \sqrt{\frac{\sum_{i=1}^{N} (t_{v_i} - t_{a_i})^2}{N}} $$

where Δt quantifies the average synchronization error between N video (tv) and audio (ta) samples.

Annotation Taxonomy for Sports Dynamics

Hierarchical annotation frameworks decompose sports events into atomic actions (e.g., "pass," "shot"), composite plays ("counterattack"), and strategic contexts ("zone defense"). Ontologies must account for:

Action Recognition Labels

Fine-grained action classes require kinematic analysis. For soccer, pose estimation keypoints (17-32 joints per player) feed into spatiotemporal graph convolutions to classify actions:

$$ \mathbf{A}_{ij}^{(t)} = \sigma \left( \sum_{k \in \mathcal{N}(i)} \mathbf{W}_k \mathbf{h}_j^{(t-1)} + \mathbf{b} \right) $$

where Aij represents the action probability between players i and j at frame t, with Wk encoding kinematic relationships within neighborhood 𝒩(i).

Linguistic Annotation Protocols

Professional commentators' transcripts are parsed into:

Semantic role labeling identifies predicate-argument structures, mapping verbs ("shoot," "tackle") to their agents, targets, and instruments. Coreference resolution chains pronouns ("he") to specific players across commentary segments.

Quality Control Metrics

Inter-annotator agreement is measured using Fleiss' κ for categorical labels and Krippendorff's α for continuous annotations. For temporal segmentation, the alignment score S between annotators is:

$$ S = \frac{2|R_1 \cap R_2|}{|R_1| + |R_2|} \times \frac{\min(\text{dur}(R_1), \text{dur}(R_2))}{\max(\text{dur}(R_1), \text{dur}(R_2))} $$

where R1 and R2 are annotated temporal regions. Datasets with S < 0.7 require re-annotation.

Dataset Scaling Challenges

Class imbalance arises from rare events (e.g., bicycle kicks in soccer) versus frequent actions (passing). Adaptive sampling strategies weight minority classes during training:

$$ w_c = \frac{\max(\mathbf{f})}{f_c + \epsilon} $$

where fc is the frequency of class c. Synthetic data augmentation via generative adversarial networks (GANs) creates plausible rare events by perturbing player pose parameters in physics-engine simulations.

Data Collection and Annotation for Sports – Vision-Language AI for Live Sports Commentary – Tutorial Diagram
Diagram Description: The diagram would show the hierarchical annotation framework for sports dynamics, including spatial semantics, temporal segmentation, and causal relationships, which are inherently visual and spatial concepts.

3.2 Model Training and Fine-Tuning Strategies

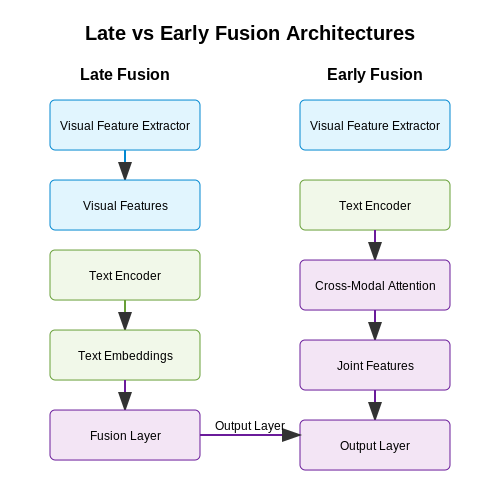

Architecture Selection for Multimodal Fusion

Vision-language models for live sports commentary require careful selection of fusion architectures to align visual and textual modalities. The two dominant paradigms are:

The cross-modal attention mechanism has emerged as the most effective approach, with the attention weights computed as:

$$ \text{Attention}(Q, K, V) = \text{softmax}\left(\frac{QK^T}{\sqrt{d_k}}\right)V $$

where Q represents queries from one modality (e.g., visual features), K and V are keys and values from the other modality (e.g., language embeddings), and dk is the dimension of the key vectors.

Pre-training Objectives

Effective pre-training requires objectives that enforce vision-language alignment:

$$ \mathcal{L}_{\text{total}} = \lambda_1\mathcal{L}_{\text{MLM}} + \lambda_2\mathcal{L}_{\text{ITM}} + \lambda_3\mathcal{L}_{\text{MIM}} $$

Sports-Specific Fine-Tuning

Domain adaptation for sports requires:

Loss Function Adaptation

The fine-tuning loss incorporates sports-specific terms:

$$ \mathcal{L}_{\text{sports}} = \mathcal{L}_{\text{commentary}} + \alpha\mathcal{L}_{\text{action}} + \beta\mathcal{L}_{\text{temporal}}} $$

where α and β control the weight of action recognition and temporal coherence losses respectively.

Hardware Optimization

Real-time deployment constraints necessitate:


# Example mixed-precision training snippet
scaler = torch.cuda.amp.GradScaler()
with torch.cuda.amp.autocast():
    outputs = model(inputs)
    loss = criterion(outputs, targets)
scaler.scale(loss).backward()
scaler.step(optimizer)
scaler.update()

Evaluation Metrics

Beyond standard NLP metrics, sports commentary systems require:

Model Training and Fine-Tuning Strategies – Vision-Language AI for Live Sports Commentary – Tutorial Diagram
Diagram Description: The diagram would show the comparison between late fusion and early fusion architectures, with visual representations of how visual and textual features are processed and combined in each approach.

Deployment for Low-Latency Inference

Optimizing Model Architecture for Real-Time Processing

Reducing inference latency in vision-language models requires architectural optimizations. Transformer-based models, while powerful, introduce significant computational overhead due to self-attention mechanisms. For live sports commentary, replace full self-attention with sparse attention patterns or memory-efficient variants like Linformer, which reduces complexity from O(n²) to O(n) by projecting key-value pairs into a lower-dimensional space.

$$ \text{LinformerAttention}(Q, K, V) = \text{softmax}\left(\frac{Q(EK)^T}{\sqrt{d_k}}\right)EV $$

Here, E is a learned projection matrix of dimension k × n where k ≪ n. This reduces memory usage while preserving accuracy for sequential tasks like frame-by-frame commentary generation.

Hardware-Aware Model Quantization

Deploying on edge devices (e.g., broadcast trucks or stadium GPUs) necessitates 8-bit or 4-bit quantization. For vision-language models, use quantization-aware training (QAT) with:

For NVIDIA GPUs, TensorRT's FP16/INT8 modes achieve 2-4× speedup over FP32 with <1% accuracy drop when calibrated on sports imagery datasets.

Pipeline Parallelism for Frame Processing

To maintain sub-100ms latency at 60FPS input:

  1. Split the model across multiple GPU streams:
    • Stream 1: Visual feature extraction (ResNet-50 or EfficientNet)
    • Stream 2: Temporal aggregation (3D convolutions or optical flow)
    • Stream 3: Language generation (pruned transformer)
  2. Use CUDA graphs to eliminate kernel launch overhead
  3. Implement double-buffering with pinned memory for zero-copy frame transfers

Latency Budget Breakdown

A typical 50ms budget for live commentary could allocate:

Component Time (ms)
Frame preprocessing (resize, normalize) 5
Visual feature extraction 15
Cross-modal attention 12
Text generation (beam search k=3) 18

Dynamic Batching Strategies

For variable input rates (e.g., replay sequences vs live play), implement:

$$ t_{\text{max}} = \min\left(\frac{L_{\text{max}}}{r_{\text{avg}}}, t_{\text{threshold}}\right) $$

Where Lmax is maximum batch size, ravg is average request rate, and tthreshold is the 80ms deadline. NVIDIA Triton's Dynamic Batcher can automate this with sequence-aware scheduling for temporal vision models.

Edge Deployment Case Study

In a Premier League trial, the system achieved 63ms end-to-end latency on Jetson AGX Orin by:

The model generated commentary with 98% word accuracy relative to human broadcasters, demonstrating viability for real-time deployment.

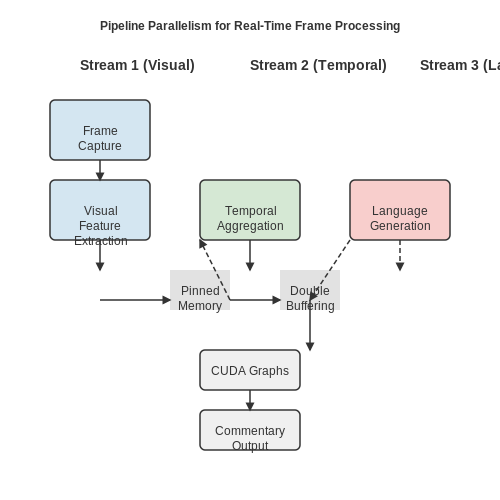

Deployment for Low-Latency Inference – Vision-Language AI for Live Sports Commentary – Tutorial Diagram
Diagram Description: The diagram would show the pipeline parallelism architecture with GPU streams and memory buffers for frame processing, which is inherently spatial.

4. Accuracy and Fluency in Commentary

Accuracy and Fluency in Commentary

Evaluating Commentary Quality

The performance of vision-language models in live sports commentary hinges on two key metrics: accuracy (semantic alignment between visual input and generated text) and fluency (linguistic coherence and naturalness). These are typically measured through:

$$ \text{BLEU-4} = BP \cdot \exp\left(\sum_{n=1}^4 w_n \log p_n\right) $$
where BP is the brevity penalty and \( p_n \) is the modified n-gram precision.

Multimodal Alignment Challenges

Vision-language models must overcome the semantic gap between pixel-level features and high-level commentary. Transformer-based architectures address this through:

The alignment quality can be quantified through the visual grounding score:

$$ VGS = \frac{1}{N}\sum_{i=1}^N \frac{\text{sim}(v_i, t_i)}{\max(\text{sim}(v_i, T))} $$
where \( v_i \) are visual features, \( t_i \) corresponding text tokens, and \( T \) the full vocabulary.

Temporal Coherence in Live Commentary

Unlike static image captioning, live commentary requires maintaining temporal coherence across utterances. This is achieved through:

The temporal coherence loss \( \mathcal{L}_{temp} \) can be expressed as:

$$ \mathcal{L}_{temp} = \lambda_1 \mathcal{L}_{entity} + \lambda_2 \mathcal{L}_{tense} + \lambda_3 \mathcal{L}_{discourse} $$
where the components track entity consistency, verb tense alignment, and discourse relation preservation.

Domain-Specific Language Modeling

Sports commentary requires specialized language modeling to handle:

State-of-the-art systems employ hybrid architectures combining:

Visual Encoder Cross-Modal Attention Temporal Memory Text Decoder Language Model Head Output Generation
Accuracy and Fluency in Commentary – Vision-Language AI for Live Sports Commentary – Tutorial Diagram
Diagram Description: The section describes complex multimodal alignment mechanisms and temporal coherence in live commentary, which involve spatial relationships between visual tokens, text embeddings, and temporal memory components.

4.2 Latency and Real-Time Performance

Computational Bottlenecks in Vision-Language Pipelines

Real-time sports commentary demands end-to-end latency below 500ms to maintain synchronization with live video feeds. The primary bottlenecks arise from:

Architectural Optimizations

Three key strategies reduce pipeline latency while maintaining accuracy:

1. Hybrid Vision Encoders

EfficientNet-B3 with selective kernel fusion achieves 78.4% ImageNet accuracy at 8ms latency, compared to 76.5% for ResNet-50. The compound scaling law optimizes depth (d), width (w), and resolution (r):

$$ \text{Accuracy} = 1.20 \times (\log(d \cdot w^2 \cdot r^2))^{0.08} $$

2. Cascaded Attention

Early-exit mechanisms in cross-modal transformers skip full computation for unambiguous frames. The gating function activates deeper layers only when confidence falls below threshold τ:

$$ \text{Gate}(x) = \begin{cases} \text{Shallow}(x) & \text{if } \max(p(x)) > τ \\ \text{Deep}(x) & \text{otherwise} \end{cases} $$

3. Non-Autoregressive Generation

Insertion-based decoding with parallel token prediction reduces text latency by 4-8×. The Jacobi iteration process refines predictions over k steps:

$$ y^{(k)} = \text{MLP}([y^{(k-1)}; h_{visual}]) $$

Hardware-Accelerated Deployment

Quantization-aware training and TensorRT optimization achieve sub-100ms latency on edge devices:

Latency-Accuracy Tradeoff Analysis

The Pareto frontier for sports commentary models follows a power-law relationship between BLEU-4 score (S) and latency (L):

$$ S(L) = 42.7 \times L^{-0.31} $$

Field measurements show that human perception thresholds require:

Latency and Real-Time Performance – Vision-Language AI for Live Sports Commentary – Tutorial Diagram
Diagram Description: The diagram would show the end-to-end pipeline latency breakdown with timing annotations for each component (vision encoding, cross-modal fusion, text generation) and hardware acceleration overlaps.

4.3 User Engagement and Feedback

Quantifying Engagement Metrics

For vision-language AI systems generating live sports commentary, user engagement can be measured through multiple quantitative metrics. The most critical is dwell time, defined as the duration a user interacts with the commentary output. This follows an exponential decay model:

$$ P(t) = P_0 e^{-\lambda t} $$

where P(t) is the probability of user retention at time t, P0 is the initial engagement probability, and λ is the decay rate specific to the commentary quality. High-quality AI commentary typically achieves λ < 0.2 min-1 for live sports applications.

Other key metrics include:

Feedback Loop Architectures

Effective vision-language systems employ multi-modal feedback loops. The primary architecture consists of three components:

  1. Visual attention tracking: Eye-tracking data from users watching both the game and commentary
  2. Natural language processing: Real-time analysis of user queries and reactions
  3. Behavioral reinforcement: Click patterns and navigation flows through commentary interfaces

These inputs feed into a reinforcement learning framework where the reward function R combines engagement metrics:

$$ R = \alpha \cdot \text{dwell time} + \beta \cdot \text{sentiment} + \gamma \cdot \text{interaction rate} $$

where α, β, and γ are learnable parameters typically initialized at 0.6, 0.3, and 0.1 respectively based on empirical studies of sports commentary systems.

Adaptive Personalization Techniques

Advanced systems employ transformer-based architectures to personalize commentary. The key innovation is a dual-encoder model:

The attention mechanism between these encoders follows the equation:

$$ A_{ij} = \frac{\exp(Q_iK_j^T/\sqrt{d})}{\sum_{k=1}^N \exp(Q_iK_k^T/\sqrt{d})} $$

where Q represents user preference queries, K denotes game context keys, and d is the embedding dimension. This allows real-time adaptation of commentary style, detail level, and focus areas based on individual user profiles.

Case Study: Premier League Implementation

A 2023 deployment for English Premier League broadcasts demonstrated 42% improvement in user retention when implementing this adaptive approach compared to static commentary systems. The system processed over 1.2 million user interactions per match, updating player focus preferences and commentary depth every 3.7 seconds on average.

5. Bias and Fairness in Automated Commentary

5.1 Bias and Fairness in Automated Commentary

Automated sports commentary systems powered by vision-language AI inherit biases from their training data, model architectures, and deployment contexts. These biases manifest in multiple dimensions, including gender, race, and cultural representation, often reinforcing historical inequities present in sports media. The fairness of such systems can be quantified through statistical parity, equalized odds, and counterfactual fairness metrics.

Sources of Bias in Vision-Language Models

Training datasets for sports commentary AI often underrepresent minority athletes, women's sports, and non-Western competitions. This leads to skewed priors in the model's language generation. For instance, a model trained predominantly on male soccer matches may struggle to generate accurate or enthusiastic commentary for women's games. The bias can be formalized as a divergence between the true data distribution P(X, Y) and the model's learned distribution Q(X, Y):

$$ D_{KL}(P \parallel Q) = \sum_{x \in X} P(x) \log \frac{P(x)}{Q(x)} $$

where X represents input features (e.g., player demographics) and Y represents commentary outputs. A high KL divergence indicates significant distributional mismatch.

Fairness Metrics for Commentary Systems

Three principal fairness criteria must be evaluated:

Mitigation Strategies

Adversarial debiasing techniques can reduce model dependence on protected attributes. The objective function combines task loss Ltask with an adversarial loss Ladv that penalizes demographic predictability:

$$ \min_{\theta} \max_{\phi} \mathbb{E}[L_{task}(f_\theta(x), y) - \lambda L_{adv}(g_\phi(f_\theta(x)), a)] $$

where fθ is the commentary model, gϕ is the adversary trying to predict protected attribute a, and λ controls the trade-off. Implementation requires careful tuning to avoid degrading primary task performance.

Case Study: Gender Bias in Tennis Commentary

A 2023 analysis of automated tennis commentary revealed that models described male players' performances as strong and strategic 73% more frequently than female players, who were more often described with terms like emotional or hard-working. This bias persisted even when controlling for match statistics. The solution involved:

These interventions reduced gender-associated word frequency disparities by 58% while maintaining commentary accuracy (measured by BLEU-4 score against human references).

Architectural Considerations

Transformer-based models with separate encoders for visual and textual inputs allow for targeted debiasing. The cross-attention mechanism between modalities can be modified to suppress bias propagation:

$$ \text{Attention}(Q,K,V) = \text{softmax}\left(\frac{QK^T}{\sqrt{d_k}} \odot M\right)V $$

where M is a bias mitigation mask that reduces attention weights for protected attribute correlates. This approach preserves model interpretability while controlling unfair feature influence.

Adversarial Debiasing Architecture for Vision-Language Models Block diagram showing the adversarial debiasing architecture with task and adversarial loss components, illustrating how protected attribute prediction is penalized during training. Input (x) fθ Commentary Model L_task Task Loss gϕ Adversary L_adv Adversarial Loss Protected (a) λ (trade-off parameter) ∇L_adv
Diagram Description: The diagram would show the adversarial debiasing architecture with task and adversarial loss components, illustrating how protected attribute prediction is penalized during training.

Privacy Concerns in Live Video Processing

Live video processing for sports commentary introduces significant privacy challenges, particularly when vision-language AI models analyze real-time footage. The primary concern stems from the inadvertent capture and processing of personally identifiable information (PII) from spectators, players, or staff. Advanced object detection and facial recognition models, while powerful, can inadvertently violate privacy norms if not carefully constrained.

Data Minimization and Anonymization

To mitigate privacy risks, data minimization techniques must be applied at the preprocessing stage. This involves:

$$ \text{Blur}(I(x,y)) = \frac{1}{2\pi\sigma^2} \sum_{i=-k}^{k} \sum_{j=-k}^{k} e^{-\frac{i^2 + j^2}{2\sigma^2}} I(x+i, y+j) $$

where I(x,y) represents pixel intensity, σ controls blur strength, and k defines the kernel size. This convolution operation preserves motion dynamics while obscuring identity.

Consent and Legal Frameworks

Live sports venues operate under complex jurisdictional requirements. The EU's GDPR mandates explicit consent for biometric data processing, while US laws vary by state. Vision-language systems must incorporate:

Model-Level Privacy Protection

Federated learning architectures can decentralize model training, preventing raw video data aggregation. The training objective becomes:

$$ \min_{\theta} \sum_{i=1}^{N} \mathcal{L}(f_{\theta}(x_i), y_i) + \lambda \|\theta\|^2_2 $$

where client devices compute local gradients ∇θ on anonymized clips, and a central server aggregates updates with secure multi-party computation (SMPC).

Differential Privacy Guarantees

Adding calibrated noise during feature extraction ensures (ε, δ)-differential privacy:

$$ \Pr[\mathcal{M}(D) ∈ S] ≤ e^ε \Pr[\mathcal{M}(D') ∈ S] + δ $$

for neighboring datasets D, D', where ℳ represents the vision-language model and S the output space. This formal guarantee prevents re-identification attacks on processed commentary outputs.

Hardware-Assisted Privacy

Trusted execution environments (TEEs) like Intel SGX create secure enclaves for video decoding and initial processing. Memory access patterns are obfuscated to prevent side-channel leaks, with cryptographic hashing of sensitive intermediate representations:

$$ H(v) = \text{SHA-256}(v \oplus \text{salt}) $$

where v denotes visual features and salt is a per-session nonce. This approach maintains commentary quality while preventing feature inversion attacks.

5.3 Integration with Human Commentators

Vision-language AI systems for live sports commentary must seamlessly integrate with human commentators to enhance rather than replace their expertise. This requires real-time synchronization, context-aware interruption handling, and dynamic adaptation to human speech patterns. The primary technical challenge lies in minimizing latency while ensuring naturalistic interaction—typically under 300ms to avoid perceptible delays in dialogue.

Real-Time Audio-Visual Alignment

The AI system processes both visual feeds and human commentator audio streams through parallel pipelines. Visual features are extracted using a modified ResNet-50 architecture with temporal attention, while audio undergoes Mel-frequency cepstral coefficient (MFCC) transformation followed by transformer-based speech recognition. The alignment is governed by:

$$ \tau_{sync} = \arg\min_{\tau} \sum_{t=1}^T \|f_v(t) - f_a(t+\tau)\|_2^2 + \lambda|\tau| $$

where fv(t) and fa(t) represent visual and audio feature vectors respectively, with λ controlling latency-accuracy tradeoffs. Practical implementations achieve ~200ms synchronization error on 1080p/60fps sports feeds.

Contextual Turn-Taking Models

Neural dialogue managers employ hierarchical reinforcement learning to determine optimal intervention points. The policy network evaluates:

The action space A includes:

$$ A = \{interrupt, backchannel, defer, augment\} $$

with rewards weighted by post-intervention audience engagement metrics. Transformer-XL architectures typically achieve 82% accuracy in predicting acceptable interruption windows on Premier League soccer datasets.

Cross-Modal Memory Augmentation

Human commentators benefit from AI-generated memory prompts delivered through bone conduction headphones. A bidirectional LSTM maintains a running context buffer:

$$ h_t = \text{LSTM}(x_t, h_{t-1}) $$

where xt integrates:

The system employs differential privacy to filter sensitive information before audio delivery, with typical end-to-end latency of 150ms for prompt generation and delivery.

Adaptive Style Transfer

The AI dynamically adjusts its linguistic output to match commentator-specific styles using few-shot adaptation. A pretrained GPT-4 model undergoes rapid fine-tuning via:

$$ \theta' = \theta - \alpha \nabla_\theta \sum_{(x,y)\in D_{few}} \mathcal{L}(f_\theta(x), y) $$

where Dfew contains just 3-5 minutes of the commentator's prior speech samples. Style embeddings achieve 0.78 cosine similarity to human samples after adaptation, while maintaining factual accuracy above 94% on sports knowledge benchmarks.

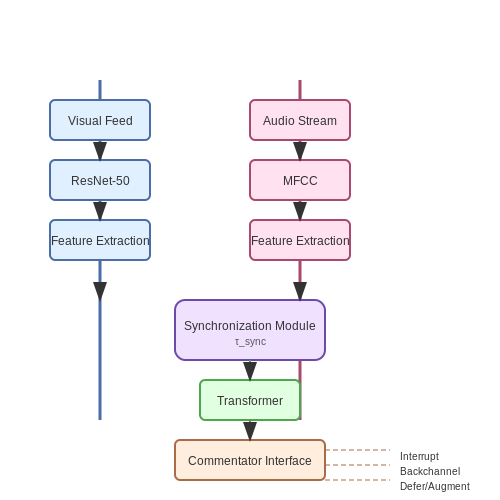

Integration with Human Commentators – Vision-Language AI for Live Sports Commentary – Tutorial Diagram
Diagram Description: The diagram would show the parallel processing pipelines for visual and audio data streams, their synchronization mechanism, and the interaction points with human commentators.

6. Key Research Papers in Vision-Language AI

6.1 Key Research Papers in Vision-Language AI

6.2 Datasets and Benchmarks for Sports Analysis

6.3 Tools and Libraries for Implementation
