The Openbench Logic Sniffer is an open-source logic analyzer designed to support the SUMP logic analyzer software at minimal cost. Source and design files can be downloaded from the Gadget Factory project page. This project originated from discussions in a forum post, with initial circuit design, PCB layout, development, and testing carried out under the code name Project SUMP PUMP. Numerous contributors provided ideas and advice, while the Gadget Factory and Dangerous Prototypes coordinated circuit development and PCB routing, drawing heavily from the Gadget Factory's Butterfly Platform. The Open Logic Sniffer is a specialized logic analyzer board focused on being low-cost yet high-speed. It forgoes many features typical of full-scale development boards to achieve its primary goals. Assembled units of the Open Logic Sniffer can be purchased from Seeed Studio for $45, including worldwide shipping. The SUMP is an open-source Java logic analyzer client developed by Michael Poppitz, consisting of a VHDL logic capture engine for FPGAs and a Java client. The latest development version of the SUMP client is available on SourceForge.net. SUMP operates as a sampling logic analyzer, reading the state of input pins and storing samples in internal RAM before transmitting them back to the computer client for analysis. The number of samples is limited by the FPGA's RAM. The SUMP toolchain is highly regarded for its professional features, including multi-stage triggers, configurable pre-roll, external trigger, clock synchronization, and several protocol analyzers (I2C, UART). Being open-source, it allows for the addition of new features based on user creativity and coding skills. While SUMP is typically ported to general-purpose FPGA development boards, this project took a different route by designing hardware specifically for SUMP while minimizing costs. Professional logic analyzers offer numerous channels and high speeds, but the Open Logic Sniffer is not intended as a low-cost alternative to such tools, especially for applications requiring 100MHz+ signals and large sample sizes. Various DIY logic analyzer designs exist, including parallel port-based models and microcontroller-based devices, but these often exhibit slow performance, typically below one megahertz. USB IO chip-based hobby logic analyzers are currently popular, with devices like Saleae Logic and USBee featuring a USB IO chip that processes data via software on a computer. These analyzers usually achieve a maximum sampling speed of around 24Msps (24MHz) under optimal USB bus conditions. The Open Logic Sniffer, however, samples at rates up to 200Msps, independent of USB traffic, and features true hardware triggers. It offers more buffered channels than most hobby USB analyzers and has a total of four times the channels. The limitation on sample storage is a key difference from hobby analyzers, which can theoretically capture unlimited samples. Most debugging can be accomplished with the initial samples, making the storage limitation less significant for many users, though future versions of the Open Logic Sniffer are expected to include increased sample storage and possibly an infinite sampling mode via firmware updates. A circuit diagram, maintained by Uwe Bannow, illustrates the fundamental elements of the Open Logic Sniffer hardware. The FPGA captures logic samples from 32 input pins into internal RAM, which are then transmitted via a serial port for analysis on a computer. The open-source SUMP logic analyzer client is utilized for sample capture and visualization. Communication between the FPGA and the computer occurs solely through a serial port, necessitating a USB microcontroller to convert serial IO to a USB virtual serial port. This design allows for upgrades through the USB connection, enabling the microcontroller to program updated logic analyzer designs into the SPI flash data chip and receive updates via its USB bootloader. A low pin-count PIC was chosen for its cost-effectiveness compared to dedicated USB interface chips. It complies with USB 2.0 standards and can transfer data at speeds up to 12Mbps, utilizing the open virtual serial port CDC interface for compatibility across various platforms without proprietary drivers. The PIC can also support other USB transfer protocols with a firmware update, enabling faster connections if supported by the SUMP client software. Currently, the SUMP FPGA design transfers data at 115200bps over a serial UART, with the USB PIC-computer speed not posing a bottleneck. Additional connections between the PIC and FPGA are routed for future implementation of a high-speed SPI interface, which could be supported in the SUMP client through adjustments to serial port speed settings. The schematic is divided into sections for the microcontroller and FPGA, reflecting the initial design efforts by Ian and Jack. The circuit and PCB were created using the freeware version of Cadsoft Eagle, with the latest files available from the Gadget Factory project page. The central component of the logic analyzer is a Xilinx Spartan 3E FPGA, which samples data from 16 buffered and 16 unbuffered I/O pins, storing the samples in internal RAM. The samples are subsequently transmitted via a serial UART to the PIC and then from the PIC to a computer through USB.Openbench Logic Sniffer is an open source logic analyzer. It`s designed to support the SUMP logic analyzer software at the lowest possible cost. Download the source and design files from the Gadget Factory project page. This project started in the comments on a post. Initial circuit design, PCB layout, development, and testing continued in t he forum under the code name Project SUMP PUMP. Many, many people contributed ideas and advice, the Gadget Factory and Dangerous Prototypes coordinated circuit development and routed the PCB. We borrowed heavily from the Gadget Factory`s Butterfly Platform. The Open Logic Sniffer is a purpose-built logic analyzer board designed to be low cost but high speed.
It sacrifices a lot of the features you`d look for in a full-scale development board to achieve our primary goals: You can get your own assembled Open Logic Sniffer at Seeed Studio for $45, including worldwide shipping. Continue reading about the design and collaboration below. SUMP is an open source Java logic analyzer client by Michael Poppitz. It consists of two parts, a VHDL logic capture engine for FPGAs, and a Java logic analyzer client. The latest development version of the SUMP client is available from SourceForge. net. SUMP is a sampling logic analyzer. It reads the state of the input pins and stores the samples in internal ram. It then dumps the samples back to the computer client for analysis. The number of samples possible is limited by the RAM in the FPGA. We like SUMP because it`s the best developed open source logic analyzer toolchain currently available.
It has lots of professional features like multi-stage triggers, configurable pre-roll, external trigger and clock sync, and a few protocol analyzers (I2C, UART). It`s open source, so the potential to add cool new features is limited only by your imagination and coding skills.
SUMP is typically ported to a general-purpose FPGA development board. We took a different approach and designed hardware specifically for SUMP, while constraining costs wherever possible. Professional logic analyzers have tons of channels and super high speeds. We`re not trying to make a low cost DIY version of these tools, the OLS isn`t an alternative to these types of tools if you need to sniff 100MHz+ signals and have huge sample sizes.
Being an engineer`s tool, there are plenty of DIY logic analyzer designs. Parallel port based logic analyzers used to be all the rage, but with parallel ports and direct interrupt access disappearing from systems, these are just historical curiosities. Another type of DIY logic analyzer is a microcontroller-based device. There are several with custom interfaces like the PIC Logix, Scanalogic, and AVR Logic Analyzer. The Bus Pirate works with SUMP. Microcontroller analyzers all have one thing in common: they`re really slow, usually sub-megahertz. USB IO chip-based hobby logic analyzers are currently popular. We`ve always been fans of the Saleae Logic, the USBee is similar. These devices are just a USB IO chip like a CY7C68013A-56PVXC, with all trigger and processing logic done in software on a computer.
The hardware part is just a datalogger. The top sampling speed is usually around 24Msps (24MHz), if the conditions on your USB bus are just right. They can take unlimited` samples because everything is stored on the computer. Current models tend to be 8 channels, more channels would reduce the maximum speed proportionately. These are commercial products with highly polished user interfaces, we don`t know of any that are open source.
The Open Logic Sniffer sits somewhere between hobby analyzers and professional analyzers. The OLS samples up to 200Msps, regardless of the USB bus traffic, and has true hardware triggers. The OLS has twice as many buffered channels as most hobby USB analyzers, and four times more channels overall. The major difference is that the OLS has a limited number of samples, while the hobby USB analyzers can theoretically take infinite samples.
Most of our debugging is done with the first few hundred samples, so this feature isn`t usually important to our work, your situation may be different. Future versions of the OLS will definitely have more sample storage, and we can work an infinite sampling mode into a future firmware update too.
Click for a full size circuit diagram [PNG]. This circuit diagram, maintained by Uwe Bannow, shows the basic elements of the Open Logic Sniffer hardware. The FPGA captures logic samples from 32 input pins into internal RAM. The samples are dumped out a serial port for analysis on a computer. The open source SUMP logic analyzer client is used to capture and visualize the samples. The FPGA only communicates over a serial port, so we used a USB microcontroller to convert the serial IO to a USB virtual serial port.
The entire chain is upgradable through the USB connection. The microcontroller can program updated logic analyzer designs into the SPI flash data chip, and the microcontroller can also be updated from its USB bootloader. We chose a USB microcontroller over a dedicated USB interface chip. A low pincount PIC was cheaper than most other USB bridge options. It`s USB 2. 0 compliant, and can transfer data at up to 12Mbps. We`re using it with the completely open virtual serial port CDC interface, so it will work on almost any platform without proprietary drivers.
The PIC can also implement other USB transfer protocols with a firmware update, faster connection methods can be supported when someone adds support for them to the SUMP client software. Currently the SUMP FPGA design only transfers data over a 115200bps serial UART, the speed between the USB PIC and the computer isn`t a bottleneck.
We routed several extra connections between the PIC and FPGA to implement a high-speed SPI interface in the future. The speed increase of an SPI interface can be supported in the SUMP client just by adding higher serial port speed settings.
With so much to accomplish already, major modifications to the client to work with untested hardware and custom drivers didn`t seem appealing. Not if the project were ever going to get finished. The PIC seemed like the best route for the first version. Click for a large image of the schematic [PNG]. The schematic is divided into a microcontroller part [PNG] and a FPGA part [PNG]. These sections are where Ian and Jack initially split the design work. We used the freeware version of Cadsoft Eagle to make the circuit and PCB. Download the latest files from the Gadget Factory project page. A Xilinx Spartan 3E field programmable gate array ( FPGA ) is the central component of the logic analyzer.
The FPGA samples data from 16 buffered and 16 unbuffered IO pins, and stores the samples in internal RAM. The samples are later dumped out a serial UART to the PIC, and from the PIC to a computer via USB. 🔗 External reference
Design a circuit with four single-bit inputs X, Y, T, and Z, and a single-bit output E. A two-bit control code word S0S1 determines which of the four inputs is sent to the output (the selection code is not...
This project is a combination Logic Probe and Logic Pulser. It is capable of testing all sorts of digital and microcomputer projects. You will find it extremely handy when designing a project as the golden rule is to test...

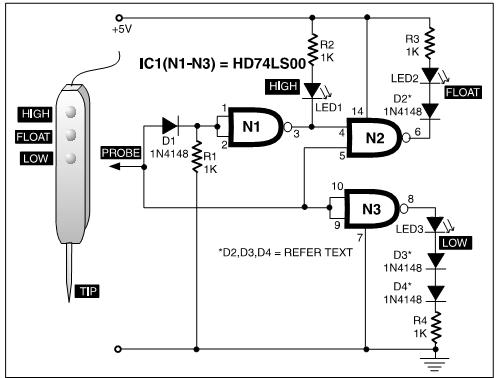

A TTL logic probe is an essential tool for troubleshooting digital circuits. Various methods can be utilized to design a logic probe. The most common designs incorporate operational amplifiers, logic gates (OR, NOT, XOR), and transistors. The circuit described...
