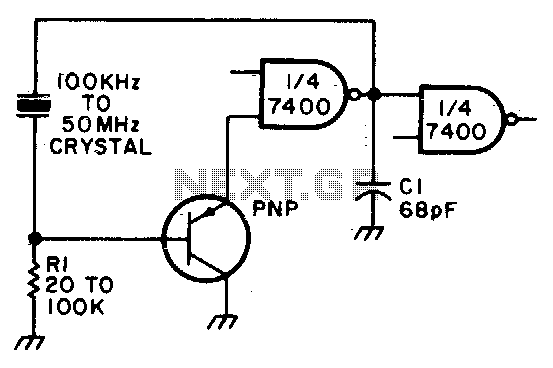

150 To 30000Khz Oscillator

A capacitor in series with the crystal can be utilized to adjust the output frequency of the oscillator. The value can range between 20 pF and 0.01 µF, or it can be a trimmer capacitor. The values are approximate and may vary for most circuits and frequencies; this also applies to resistance values. Adequate power supply decoupling is essential; local decoupling capacitors near the oscillator are recommended.

In oscillator circuits, the frequency of oscillation can be finely tuned by incorporating a capacitor in series with the crystal. This capacitor acts as a variable element in the circuit, allowing for precise adjustments to the output frequency. The typical capacitance values for this component can range from 20 picofarads (pF) to 0.01 microfarads (µF). In some designs, a trimmer capacitor may be employed to facilitate fine-tuning of the frequency, providing flexibility in circuit performance.

It is important to note that the specified capacitance values are approximate and can vary depending on the specific circuit design and operating frequency. Similarly, the resistance values within the circuit may also exhibit variability. This variability necessitates careful consideration during the design phase to ensure optimal performance across different operating conditions.

Furthermore, proper power supply decoupling is critical in oscillator circuits to prevent noise and fluctuations in the power supply from affecting the oscillator's stability and performance. To achieve this, it is recommended to place local decoupling capacitors in close proximity to the oscillator. These capacitors serve to filter out high-frequency noise and provide a stable voltage supply, thus enhancing the overall reliability and functionality of the oscillator circuit.

In summary, the careful selection of series capacitors and the implementation of effective decoupling strategies are essential for achieving stable and adjustable oscillator performance in electronic designs. CI capacitor in series with the crystal may be used to adjust the output frequency of the oscillator. The valu e can range between 20 pF and 0.01 ^iF, or it can be a trimmer capacitor. X values are approximate and can vary for most circuits and frequencies; this is also true for resistance values. Adequate power supply decoupling is required; local decoupling capacitors near the oscillator are recommended.
