Muscular Bio-Stimulator
The Bio-Stimulator circuit is designed to deliver electrical impulses to stimulate muscle contraction and promote circulation, which may assist in cosmetic improvements such as cellulite reduction. The core components of the circuit include a microcontroller, a power supply, a variable resistor (P1), and a pair of electrodes.
The microcontroller serves as the brain of the device, controlling the timing and intensity of the electrical impulses delivered to the electrodes. It is programmed to generate a specific waveform, typically a square or sinusoidal wave, which is effective in stimulating muscle fibers. The power supply should be a compact, rechargeable lithium-ion battery, providing sufficient voltage and current to ensure effective muscle stimulation without discomfort.
The variable resistor, labeled as P1, allows the user to adjust the intensity of the stimulation. As the knob is rotated, it changes the resistance in the circuit, thereby altering the amplitude of the electrical signal sent to the electrodes. This feature enables customization of the treatment based on individual tolerance levels.
Electrodes should be designed for skin contact, often made from conductive materials such as silver or carbon, ensuring good conductivity and comfort during use. They should be placed strategically at both ends of the targeted muscle group to maximize the effectiveness of the stimulation.
The device should also include safety features, such as an automatic shut-off timer to prevent prolonged use beyond the recommended 30-40 minute session. Additionally, an indicator light can be integrated to signal when the device is active, providing visual feedback to the user.

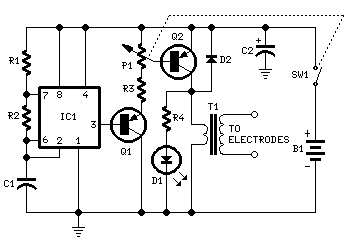

Overall, the Bio-Stimulator circuit combines user-friendly controls with effective muscle stimulation technology, making it a practical tool for those seeking to improve their appearance through muscle toning and cellulite reduction.This is a small, portable set, designed for those aiming at look improvement. The Bio-Stimulator provides muscles` stimulation and invigoration but, mainly, it could be an aid in removing cellulite. Tape the electrodes to the skin at both ends of the chosen muscle and rotate P1 knob slowly until a light itch sensation is perceived.
Each session should last about 30 - 40 minutes. 🔗 External reference
