This LM338-based power supply can deliver approximately two outputs of 12 to 36 volts at 5 amps each (10 amps in version 2 of this power supply, which includes transistors to increase the current capacity). The design utilizes two LM338 regulators in version 1, though LM317 can also be employed. In version 2, additional transistors will be incorporated to enhance current output. The schematic will feature an adjustable current limit in steps, a current limiter with an LED indicator, and an automatic reset relay to disable the output during short circuits or excessive current draw. Additionally, temperature-sensitive switches will be implemented to shut down the power supply if the cooling plates exceed a specified temperature.
The LM338 voltage regulator is a popular choice for adjustable power supplies due to its ability to provide a stable output voltage. In this design, two LM338 regulators are used in parallel to achieve the desired voltage and current specifications. The output voltage can be adjusted using a pair of resistors configured as a voltage divider, allowing for a range between 12 to 36 volts.
In version 2, the inclusion of additional transistors will significantly enhance the current handling capability of the power supply. These transistors will act as pass elements, allowing the circuit to deliver up to 10 amps by distributing the load more effectively. Proper heat sinking will be essential to manage the thermal performance of these components, ensuring reliable operation under maximum load conditions.
The current limiting feature is implemented using a sense resistor in series with the output. This resistor will allow for the measurement of output current, which can be fed back to a control circuit to adjust the output voltage dynamically, maintaining the current within user-defined limits. The LED indicator will provide a visual cue when the current limit is being reached or has been exceeded.
The automatic reset relay is a critical safety feature that will engage when a short circuit or excessive current is detected. This relay will disconnect the output, preventing damage to the power supply and connected loads. Once the fault condition is resolved, the relay can be reset to restore normal operation.
Temperature-sensitive switches will play an important role in protecting the power supply from overheating. These switches will monitor the temperature of the cooling plates and disconnect the output if the temperature exceeds a predetermined threshold. This feature ensures the longevity of the components and maintains safe operating conditions.
Overall, this LM338-based power supply design offers flexibility, safety, and enhanced performance, making it suitable for various applications requiring adjustable voltage and current outputs.This lm338-v. 1power supply will be able to give something like two times 12- 36 volt and 2x5 amps (10 amps in the v. 2 of this PSU witch includes transistors to get more current from the circuit). I use 2 x lm338 in V. 1 but also lm317 can be used. I will use extra transistors to get the current up i V. 2. Schematic will beequippedwith currentlimitad justablein steps, a current limiter with LED indicator, and i will try to find some way to make areset ablerelay, thanautomaticallydisableoutputwhen short circuit or to high current drawn, Also i have some temperature sensible switches so power supply will shutdown at to high temperature on the cooling plates. 🔗 External reference
The first step is to measure the amplification factor of the end transistors (T3 and T4), known as the hfe. If their difference exceeds 30%, the amplifier will produce unclear sound. In this case, MJ3001 and MJ2501 transistors were...

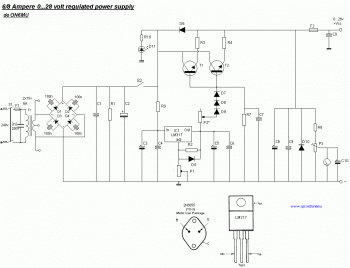

This is a simple power supply that provides a reliable and clear regulated output voltage ranging from 0 to 28 volts with a maximum current of 6 to 8 amperes. Utilizing two 2N3055 transistors allows for doubling the output...
