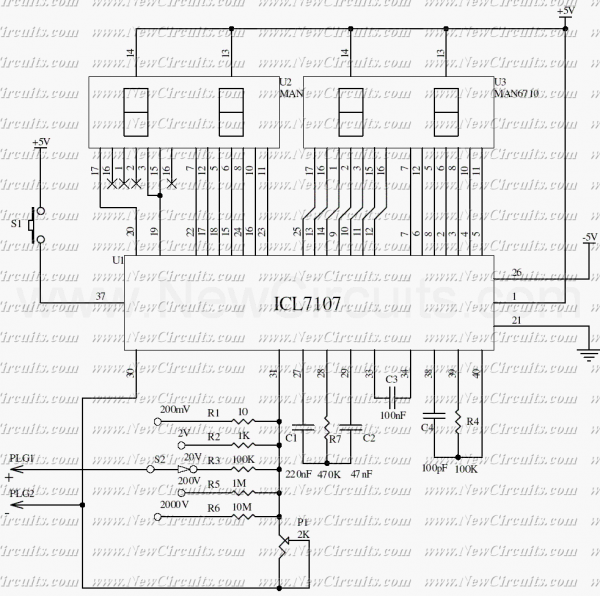

Digital Voltmeter
The ICL7107 is a versatile integrated circuit designed for precise analog-to-digital conversion, capable of converting an analog voltage signal into a digital representation with a resolution of 3.5 digits. This device is suitable for a variety of applications, including digital voltmeters, electronic scales, and other measurement systems.
At the core of the ICL7107 is its internal voltage reference, which provides a stable reference voltage necessary for accurate conversion. The high isolation analog switches facilitate the selection of the input signal, ensuring that the conversion process is not affected by external noise or interference. This feature is particularly important in environments where signal integrity is critical.
The sequential control logic within the ICL7107 manages the operation of the analog switches and the conversion process, ensuring that the device operates efficiently and accurately. The logic controls the timing of the sampling and conversion phases, allowing the device to quickly and reliably convert the input voltage to a digital output.
The display drivers integrated into the ICL7107 are designed to drive a 3.5-digit LED display directly, simplifying the design of the overall system by eliminating the need for additional driver circuitry. This integration reduces the component count and the potential for errors in the display interface.
One of the key features of the ICL7107 is its auto-zero adjust function, which automatically calibrates the device to ensure that a 0 volts input corresponds to a zero reading on the display. This feature enhances the accuracy of the device by compensating for any offset errors that may occur due to component tolerances or environmental factors.
In summary, the ICL7107 is a highly integrated A/D converter that combines essential functions into a single package, making it an ideal choice for applications requiring precise and reliable analog-to-digital conversion. Its internal components work together seamlessly to provide accurate measurements while simplifying the design of electronic systems.The ICL7107 is a 3 1/2 digit LED A/D convertor. It contains an internal voltage reference, high isolation analog switches, sequential control logic, and the display drivers. The auto-zero adjust ensures zero reading for 0 volts input. 🔗 External reference
